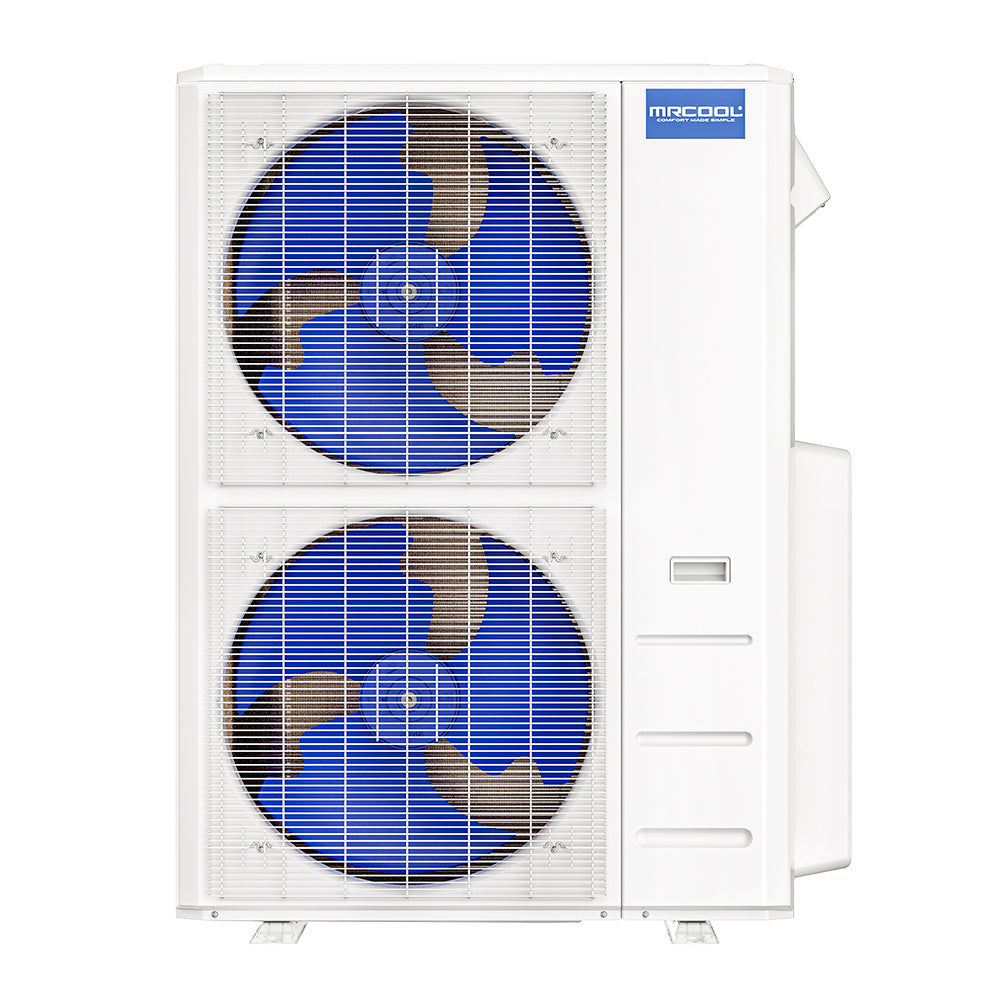

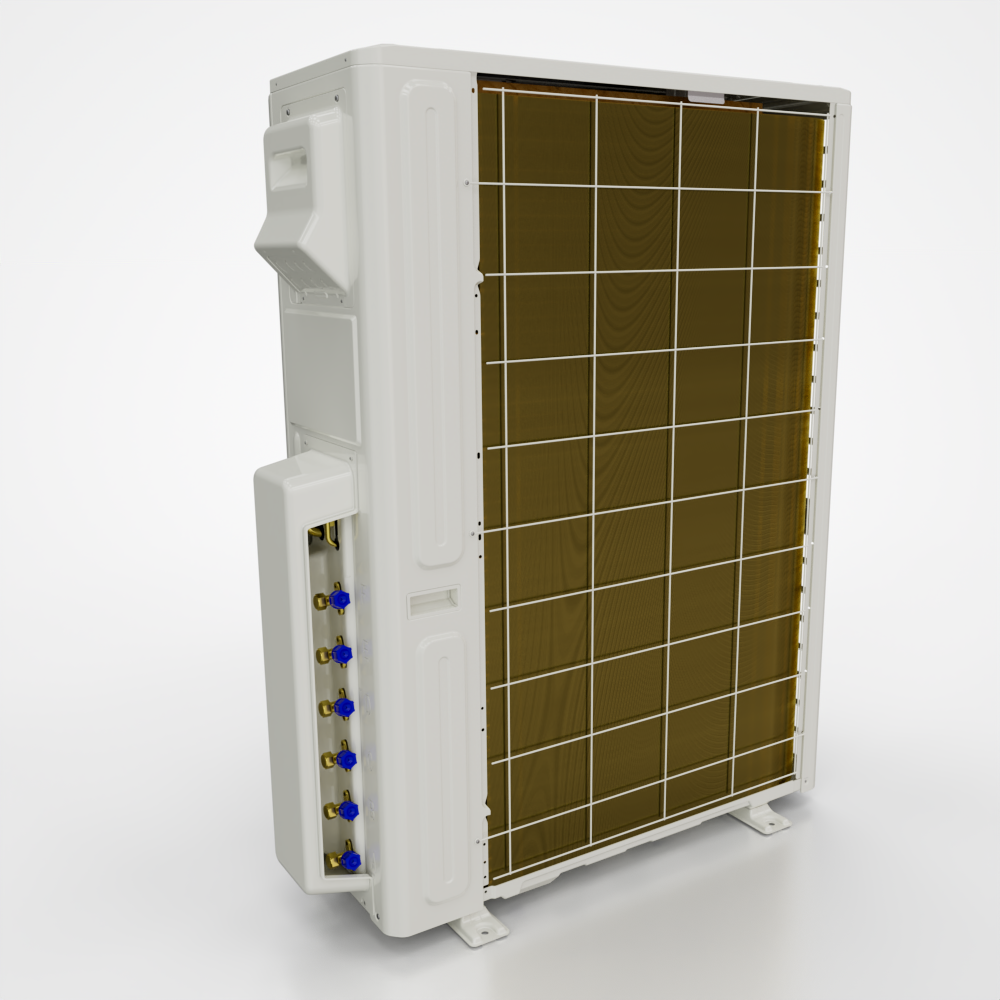

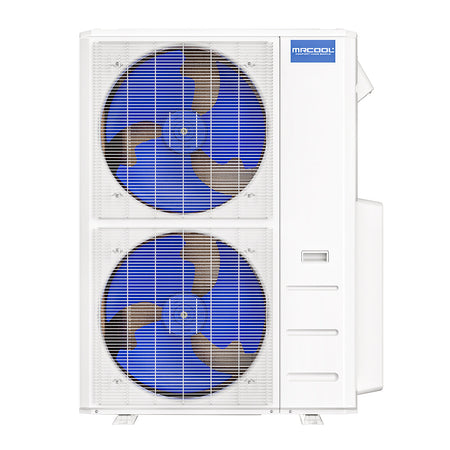

MRCOOL DIY® 5th Gen 55,000 BTU Multi-Zone Mini-Split Condenser 230V – Up to 6 Zones | DIY-MULTI6-55HP230D-O

MRCOOL® DIY® 5th Gen 55,000 BTU Multi-Zone Mini-Split Condenser – Up to 6 Zones, 230V

The MRCOOL® DIY® 5th Gen 55,000 BTU Multi-Zone Condenser is the most powerful unit in the MRCOOL DIY lineup, designed to heat and cool up to 6 zones simultaneously with 47,000 BTU of cooling and 55,000 BTU of heating capacity. With a 22 SEER2 rating, 10.6 HSPF2-4, and cold-climate heating down to -22°F, this Energy Star certified system delivers whole-home comfort even in the harshest winters — all with true DIY installation.

Why Choose MRCOOL DIY® 5th Gen 55K Multi-Zone?

• Up to 6 Independent Zones — Heat and cool up to 6 rooms simultaneously, each with its own temperature control.
• Cold Climate Heating to -22°F — Operates reliably in extreme cold, making it ideal for northern climates and harsh winters.
• 22 SEER2 & 10.6 HSPF2-4 — Industry-leading efficiency ratings for maximum year-round energy savings.
• Energy Star Certified — May qualify for federal tax credits and utility rebates.
• America’s #1 DIY Mini Split — The most trusted DIY mini split brand in the nation, built for quick setup and long-term reliability.
• DIY QuickConnect® Compatible — Works with MRCOOL pre-charged QuickConnect® line sets (sold separately) for a fast, vacuum-free installation.
• Eco-Friendly R-454B Refrigerant — Lower Global Warming Potential (GWP) than R-410A for better efficiency and a reduced environmental footprint.
• 221.4 ft. Max Line Set Length — Exceptional placement flexibility for whole-home multi-zone installations across large properties.
• Smart Connectivity — Control via the SmartHVAC app (iOS & Android), or hands-free with Amazon Alexa or Google Assistant.
• Best-in-Class Warranty — 7-year compressor warranty + 5-year parts warranty.
• Certified Excellence — Energy Star Certified, UL Listed, ETL Listed, AHRI Certified.

Product Overview

• 🏠 Maximum Zones: 6
• 💪 Cooling Capacity: 47,000 BTU | Heating Capacity: 55,000 BTU
• ❄️ Cold Climate Heating: Down to -22°F outdoor
• 🔧 Installation: DIY — No Professional Required
• ⚡ Voltage: 208-230V
• 🌿 Energy Star Certified — May qualify for federal tax credits & utility rebates
• ⭐ Certification: Energy Star, UL Listed, ETL Listed, AHRI Certified
• 🧄 Refrigerant: R-454B
• ⚠️ Note: Air handlers and line sets sold separately

Specifications & Dimensions

Shipping & Returns

🚚 Free Curbside Delivery
All MRCOOL orders ship free via FedEx Ground, FedEx Freight, or an equivalent trusted carrier. Delivery is curbside only — please arrange assistance in advance as carriers are not able to bring items inside your home.

Tracking & Delivery
Tracking information is typically provided within 3–5 business days of your order. Once received, please allow 1–2 business days for tracking details to update.

↩️ Return Policy

30-Day Return Window
Returns must be requested within 30 days of your delivery date. We are unable to accept return requests after this period.

Return Conditions
To qualify for a return, items must be unused and uninstalled, and in original packaging including box and pallet.

Restocking Fee
A 35% restocking fee applies to all approved returns.

📄 View Full Shipping Policy | 📄 View Full Return & Refund Policy

Frequently Asked Questions

What makes the 55K different from the 48K model?
The 55K model offers significantly more heating capacity (55,000 BTU vs. 48,000 BTU), a higher HSPF2-4 of 10.6 (vs. 10.0), and most importantly, cold-climate heating down to -22°F (vs. -13°F on the 48K). It’s the better choice for northern climates and areas with harsh winters.

What air handlers are compatible with this condenser?

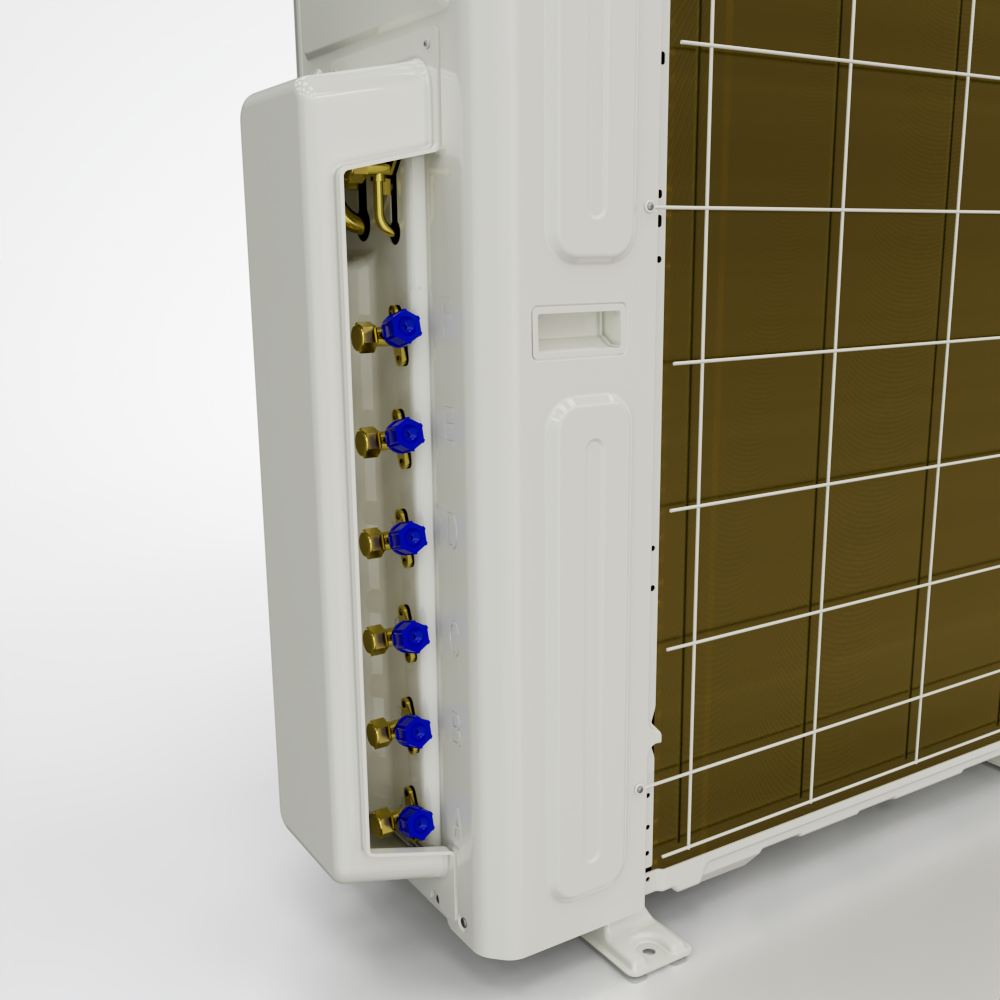

This condenser is compatible with MRCOOL DIY® 5th Gen wall-mount and cassette air handlers. The combined BTU of all connected air handlers must not exceed 55,000 BTU. Note that two zone ports use a 1/2" suction line while the other four use 3/8" — match your line sets accordingly. Line sets are sold separately.

Can I install it myself?
Yes. Use MRCOOL DIY® pre-charged QuickConnect® line sets (sold separately) for a vacuum-free installation. The only professional you’ll need is a licensed electrician for the electrical hookup.

Does this qualify for tax credits or rebates?
As an Energy Star certified system with a 22 SEER2 and 10.6 HSPF2-4 rating, this unit may qualify for the federal Residential Clean Energy Credit or utility-sponsored rebate programs. Check with your local utility provider and a tax professional for eligibility.

What is the warranty?
This condenser is backed by MRCOOL’s best-in-class warranty:

• 7-Year Compressor Warranty
• 5-Year Parts Warranty

Recommended BTU By Room Size

Use this guide to size each individual zone — the combined BTU of all air handlers must not exceed 55,000 BTU total.

Example: A 6-zone setup could use two 12,000 BTU + two 9,000 BTU + two 6,000 BTU + one 7,000 BTU air handlers. Actual performance may vary depending on insulation, ceiling height, windows, and climate zone.
