MRCOOL DIY® 5th Gen 6,000 BTU OuttaSight® Ceiling Cassette Air Handler 230V – Single Zone, Up to 150 Sq. Ft. | DIYCASSETTE06HP-230D25-O
Couldn't load pickup availability
MRCOOL® DIY® 5th Gen 6,000 BTU OuttaSight® Ceiling Cassette Air Handler – Single Zone, 230V

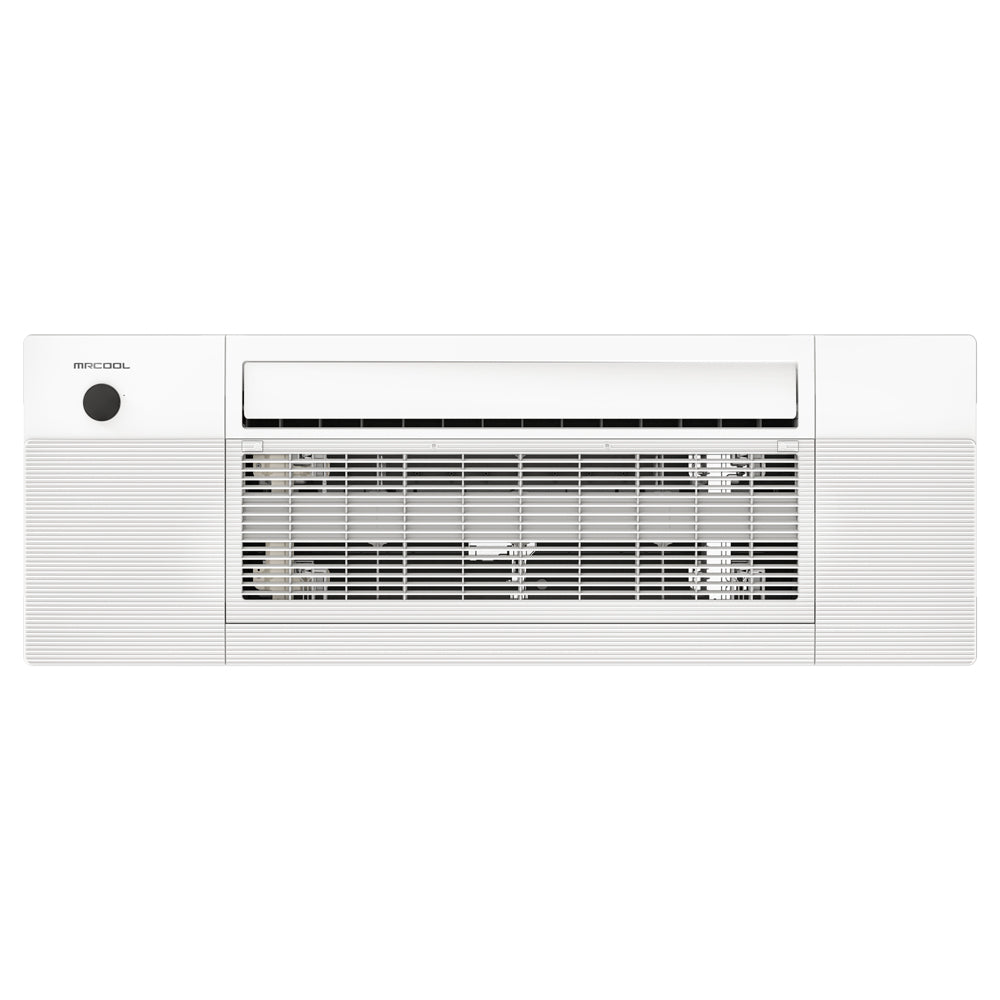

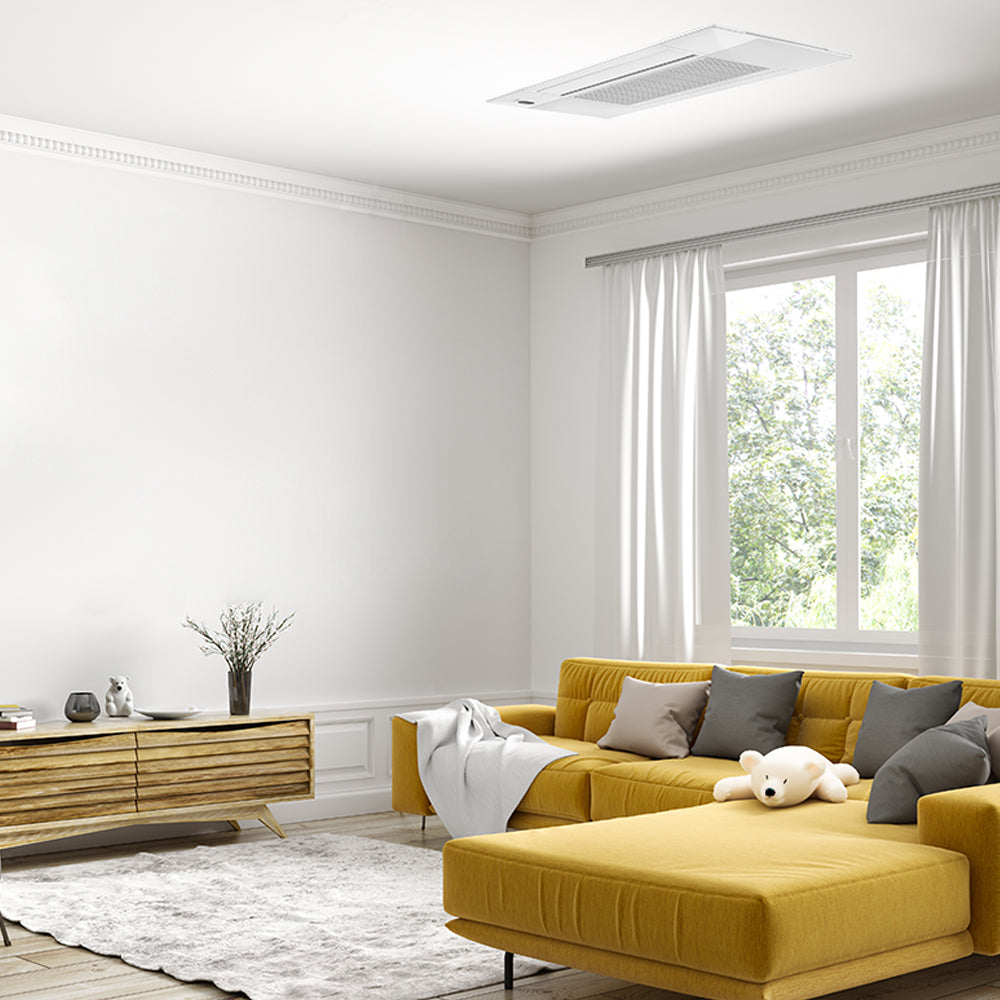

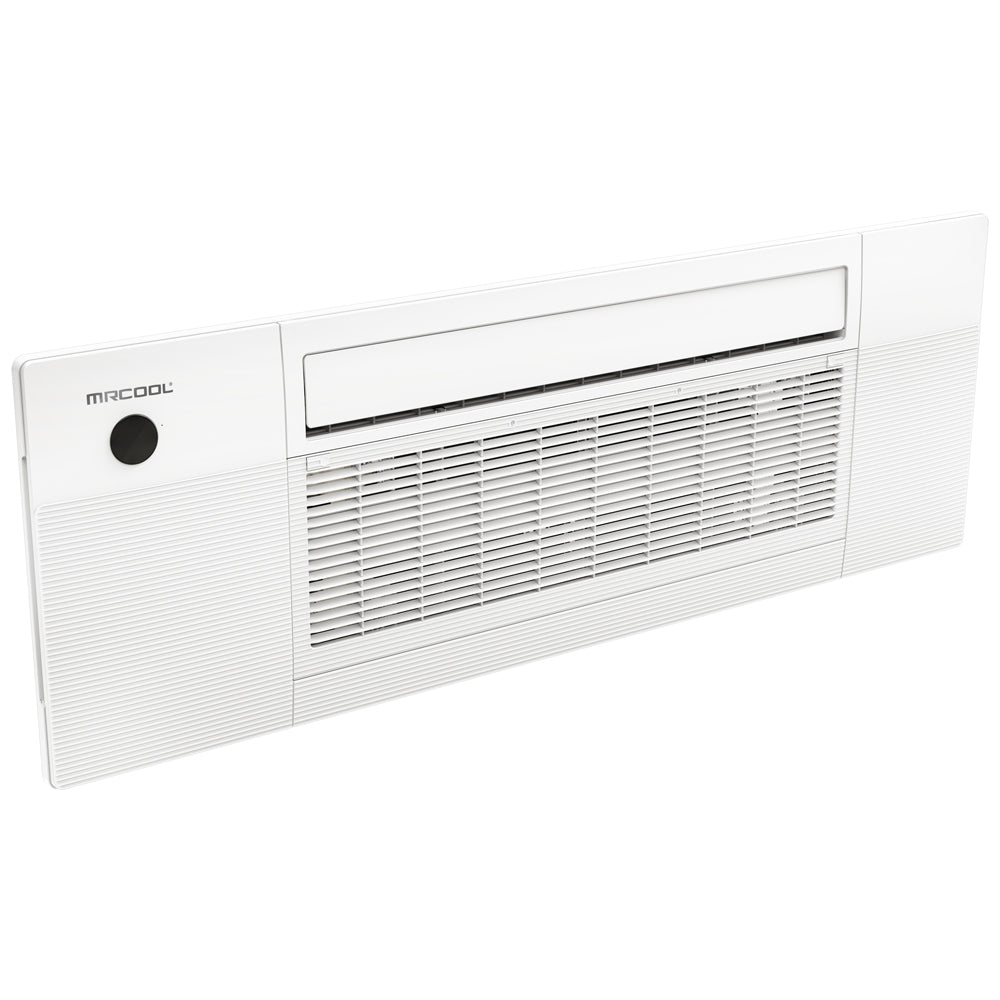

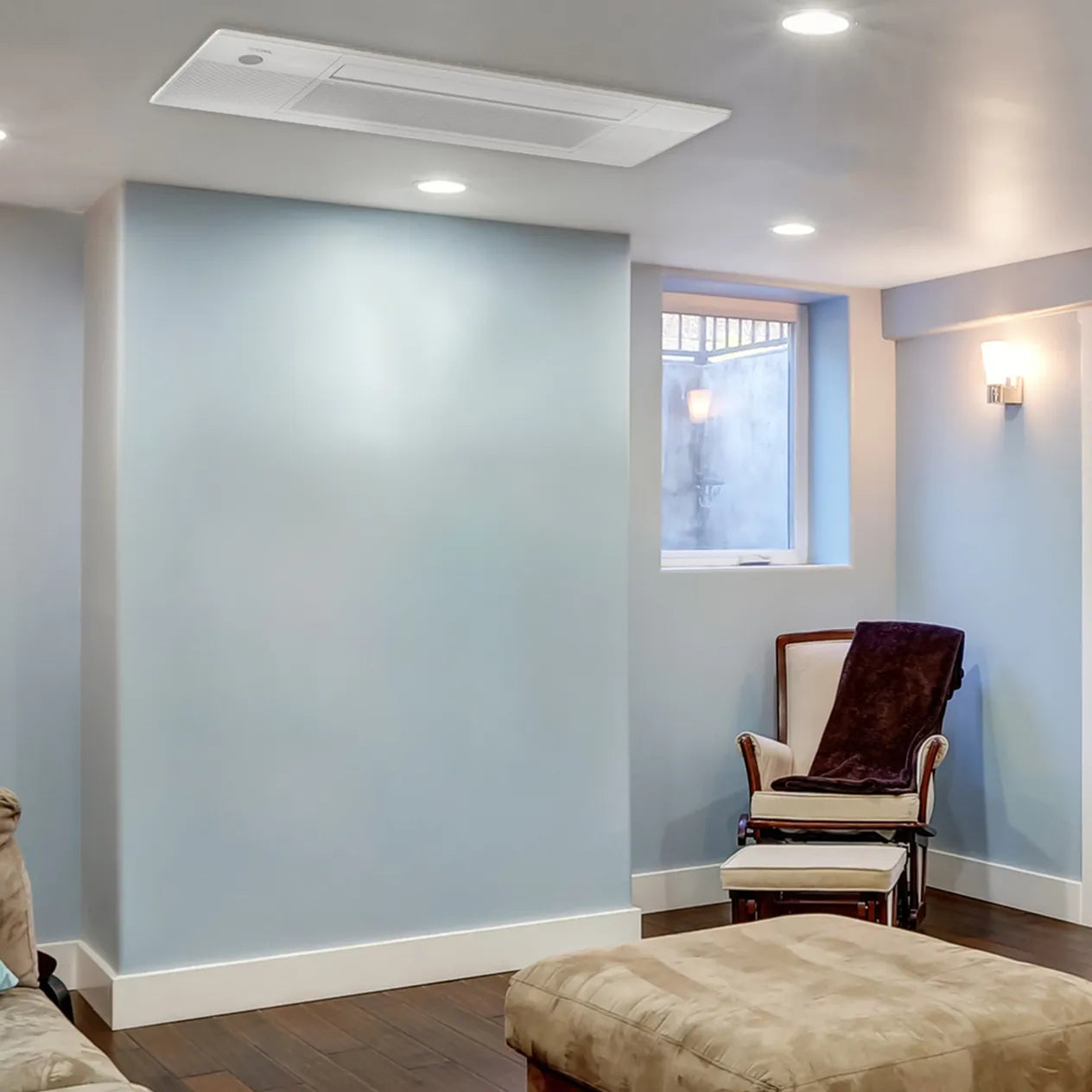

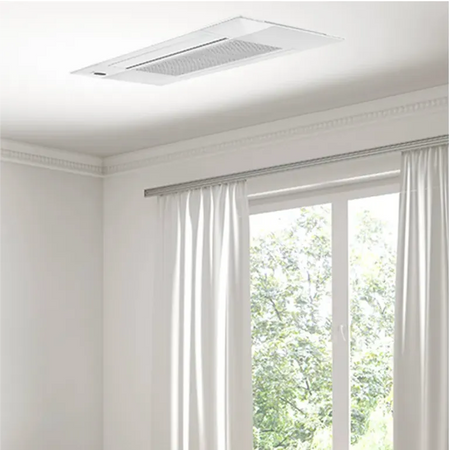

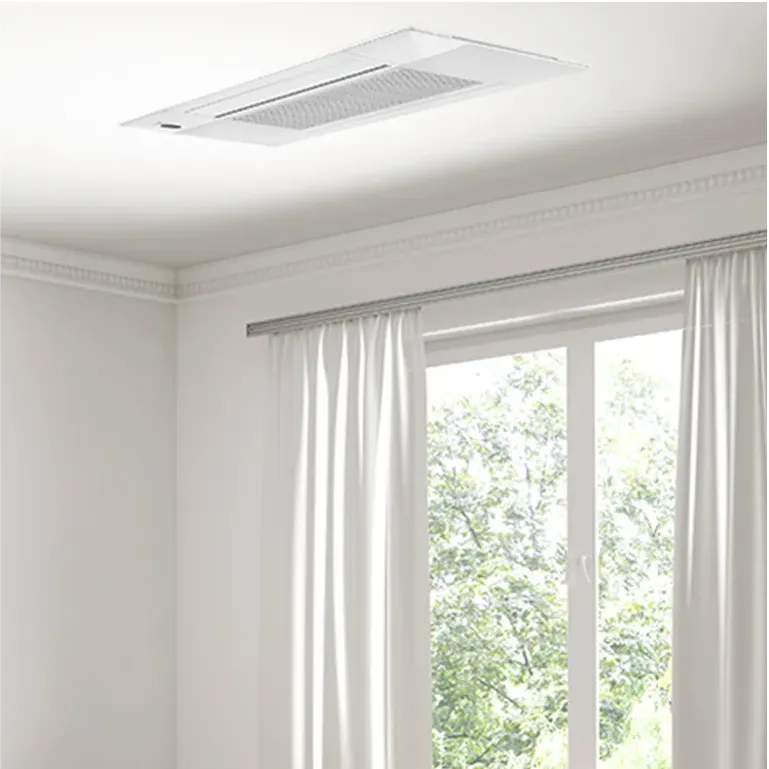

The MRCOOL® DIY® 5th Gen 6,000 BTU OuttaSight® Ceiling Cassette is a sleek, flush-mounted indoor unit designed for heating and cooling spaces up to 150 sq. ft. Unlike traditional wall-mount units, this ceiling cassette installs discreetly between standard 16" ceiling joists — ideal for new construction, open-plan spaces, and retrofit projects where wall space is limited. Pair it with a compatible MRCOOL DIY condenser and QuickConnect® line set for a complete DIY mini split system.
Why Choose MRCOOL DIY® OuttaSight® Ceiling Cassette?

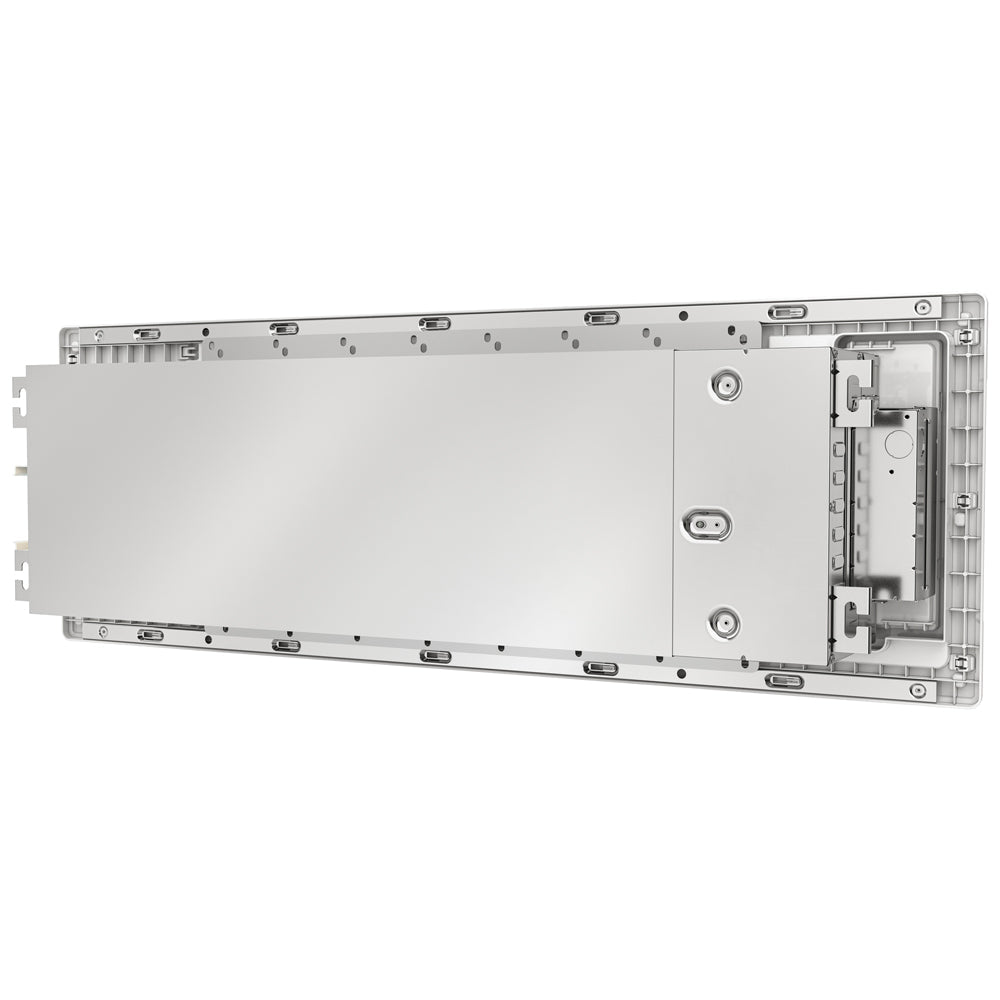

- Ceiling-Mounted, Out of Sight — Installs flush between standard 16" ceiling joists (including pre-manufactured I-joists) for a clean, unobtrusive look.
- Ideal for New Construction & Retrofits — No wall space required. Perfect for open-plan rooms, garages, sunrooms, and commercial spaces.
- America’s #1 DIY Mini Split — The most trusted DIY mini split brand in the nation, built for quick setup and long-term reliability.
- QuickConnect® Compatible — Works with MRCOOL pre-charged QuickConnect® line sets for a fast, vacuum-free installation — no special tools needed.
- Eco-Friendly R-454B Refrigerant — Lower Global Warming Potential (GWP) than R-410A for better efficiency and a reduced environmental footprint.
- Ultra-Quiet Operation — As low as 23.5 dB(A) on silent mode — barely audible.
- Advanced Filtration — Improves indoor air quality with built-in filtration; Elevation function allows easy filter access for maintenance.
- Multiple Wireless Control Options — Control via included remote, the SmartHVAC app (iOS & Android), or hands-free with Amazon Alexa or Google Assistant.
- Best-in-Class Warranty — 7-year compressor warranty + 5-year parts warranty.
- Certified Excellence — UL Listed, ETL Listed, AHRI Certified.
Product Overview
- 🏠 Zones: 1
- 📐 Coverage: Up to 150 sq. ft.
- 🔧 Installation: DIY — Ceiling-Mounted, No Professional Required
- 💨 Airflow Direction: 1-Way
- ⚡ Voltage: 208-230V
- 🔇 Noise Level: As low as 23.5 dB(A) on silent mode
- ⭐ Certification: UL Listed, ETL Listed, AHRI Certified
- 🧄 Refrigerant: R-454B
Specifications & Dimensions
| Capacity & Performance | |
|---|---|
| Capacity | 6,000 BTU |
| Coverage Area | Up to 150 sq. ft. |
| Air Flow – Turbo | 341 CFM |
| Air Flow – High | 294 CFM |
| Air Flow – Medium | 259 CFM |
| Air Flow – Low | 235 CFM |
| Air Flow – Silent | 235 CFM |
| Noise – Turbo | 46.5 dB(A) |
| Noise – High | 37.5 dB(A) |
| Noise – Medium | 35.5 dB(A) |
| Noise – Low | 26.0 dB(A) |
| Noise – Silent | 23.5 dB(A) |
| Electrical Requirements | |
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 3A |
| Refrigerant & Piping | |
| Refrigerant Type | R-454B |

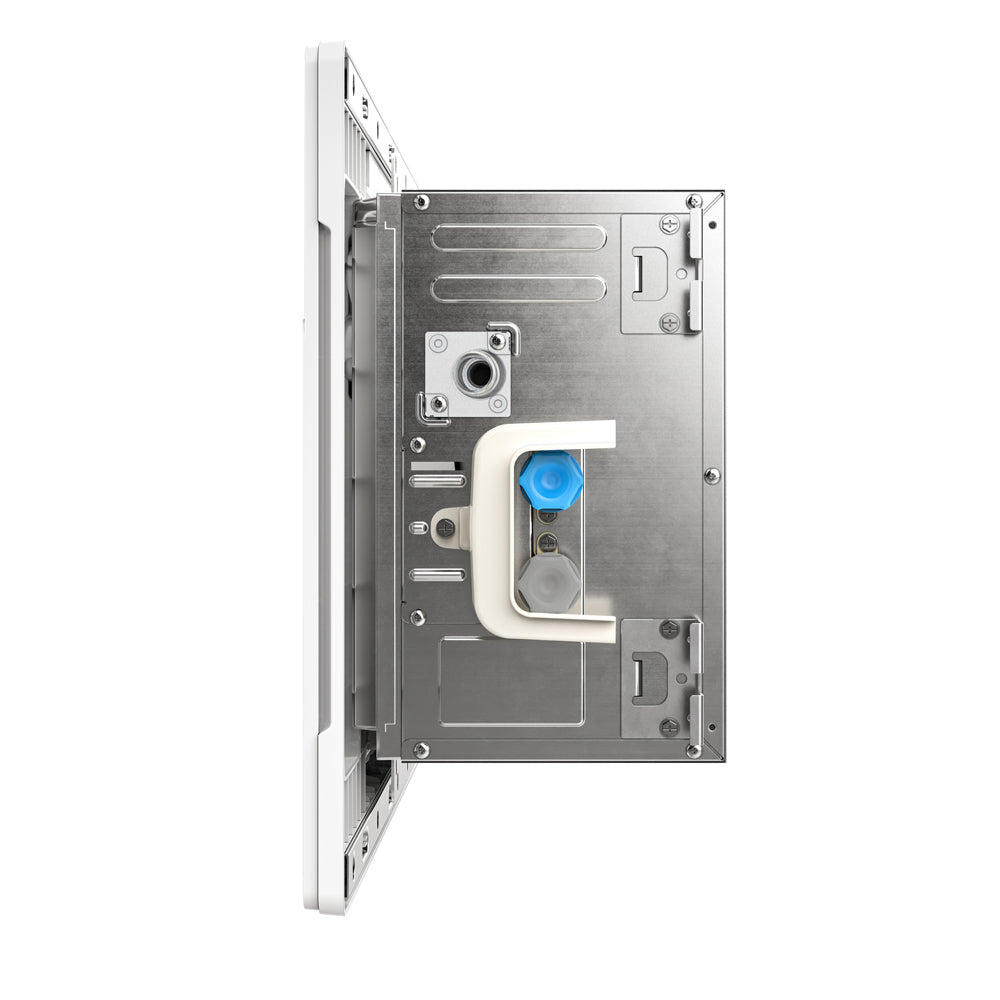

| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Dimensions & Weight | |
| Dimensions | 50.31" W x 13.19" D x 8.98" H |
| Mount Type | Ceiling |
| Weight | 45 lbs |
| Features | |
| Airflow Direction | 1-Way |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| WiFi Compatibility | Yes |
| App Compatibility | Yes |
| Works with iOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| Certifications & Warranty | |
| Certifications | UL Listed, ETL Listed, AHRI Certified |
| Parts Warranty | 5 Years |
| Compressor Warranty | 7 Years |
Shipping & Returns
🚚 Free Curbside Delivery
All MRCOOL orders ship free via FedEx Ground, FedEx Freight, or an equivalent trusted carrier. Delivery is curbside only — please arrange assistance in advance as carriers are not able to bring items inside your home.
Tracking & Delivery
Tracking information is typically provided within 3–5 business days of your order. Once received, please allow 1–2 business days for tracking details to update.
↩️ Return Policy
30-Day Return Window
Returns must be requested within 30 days of your delivery date. We are unable to accept return requests after this period.
Return Conditions
To qualify for a return, items must be unused and uninstalled, and in original packaging including box and pallet.
Restocking Fee
A 35% restocking fee applies to all approved returns.
📄 View Full Shipping Policy | 📄 View Full Return & Refund Policy
Frequently Asked Questions
What condenser is compatible with this cassette?
This ceiling cassette is compatible with MRCOOL DIY® 5th Gen single-zone or multi-zone condensers. Match the BTU capacity and voltage, and use a compatible MRCOOL QuickConnect® line set (sold separately).
Does it fit between standard ceiling joists?
Yes — the OuttaSight® cassette is designed to fit between standard 16" ceiling joists, including pre-manufactured I-joists, for a flush, concealed installation.
Can I install it myself?
Yes. Use MRCOOL DIY® pre-charged QuickConnect® line sets for a vacuum-free installation. Ceiling installation may require basic carpentry skills. A licensed electrician is still recommended for the electrical hookup.
How quiet is it?
Extremely quiet — as low as 23.5 dB(A) on silent mode, which is barely audible. Even on high, it runs at just 37.5 dB(A).
What is the warranty?
This cassette is backed by MRCOOL’s best-in-class warranty:
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
Recommended BTU By Room Size
| BTU Capacity | Recommended Room Size (Sq. Ft.) |
|---|---|
| 6,000 BTU ← You Are Here | Up to 150 sq. ft. |
| 9,000 BTU | 151–350 sq. ft. |
| 12,000 BTU | 351–500 sq. ft. |
| 18,000 BTU | 501–750 sq. ft. |
| 24,000 BTU | 751–1,000 sq. ft. |
| 36,000 BTU | 1,001–1,500 sq. ft. |
Note: Actual performance may vary depending on room insulation, ceiling height, number of windows, climate zone, and heat-generating appliances.
