MRCOOL DIY® 5th Gen 18,000 BTU OuttaSight® Ceiling Cassette Mini-Split Complete System 230V – Single Zone, 500–750 Sq. Ft. | DIY-18-HP-CM-230D25-O

MRCOOL® DIY® 5th Gen 18,000 BTU OuttaSight® Ceiling Cassette Mini-Split Complete System – Single Zone, 230V

The MRCOOL® DIY® 5th Gen 18,000 BTU OuttaSight® Ceiling Cassette Complete System is a premium all-in-one solution for heating and cooling spaces from 500 to 750 sq. ft. — with a flush-mounted ceiling cassette air handler instead of a traditional wall-mount unit. With a class-leading 22.5 SEER2 and 11.5 HSPF2-4, this Energy Star certified system delivers exceptional efficiency year-round. Includes the 18K condenser, OuttaSight® ceiling cassette air handler, and a 25 ft. pre-charged QuickConnect® line set. No vacuum pumps, no HVAC license required. Note: uses a 1/2" suction line.

Why Choose MRCOOL DIY® 5th Gen OuttaSight® Ceiling Cassette?

• Ceiling-Mounted, Out of Sight — Installs flush between standard 16" ceiling joists for a clean, unobtrusive look — no wall space required.
• 22.5 SEER2 — Premium Cooling Efficiency — One of the highest SEER2 ratings in the MRCOOL DIY 5th Gen lineup.
• 11.5 HSPF2-4 — Exceptional Heating Efficiency — The highest HSPF2-4 in the standard (non-Hyper Heat) 5th Gen lineup for maximum heating savings.
• Energy Star Certified — May qualify for federal tax credits and utility rebates.
• America’s #1 DIY Mini Split — The most trusted DIY mini split brand in the nation, built for quick setup and long-term reliability.
• 25 ft. QuickConnect® Line Set Included — Pre-charged with R-454B refrigerant for a fast, vacuum-free installation.
• DIYPRO® Cable Included — Eliminates the need for electrical conduit. Built tough to withstand outdoor elements and wildlife.
• 98.4 ft. Max Line Set Length — Excellent placement flexibility for ceiling installations across large spaces.
• Advanced Filtration — Improves indoor air quality; Elevation function allows easy filter access for maintenance.
• Smart Connectivity — Control via the SmartHVAC app (iOS & Android), or hands-free with Amazon Alexa or Google Assistant.
• Gold Fin® Coil Protection — Superior corrosion resistance, ideal for coastal homes and harsh climates.
• Best-in-Class Warranty — 7-year compressor warranty + 5-year parts warranty.
• Certified Excellence — Energy Star Certified, UL Listed, ETL Listed, AHRI Certified.

Product Overview

• 🏠 Zones: 1
• 📐 Coverage: 500–750 sq. ft.
• 💨 Air Handler Type: OuttaSight® Ceiling Cassette — 1-Way Airflow
• 🔧 Installation: DIY — No Professional Required
• ⚡ Voltage: 208-230V
• 🌿 Energy Star Certified — May qualify for federal tax credits & utility rebates
• ⭐ Certification: Energy Star, UL Listed, ETL Listed, AHRI Certified
• 🧄 Refrigerant: R-454B
• ⚠️ Note: Uses 1/2" suction line — verify line set compatibility before ordering

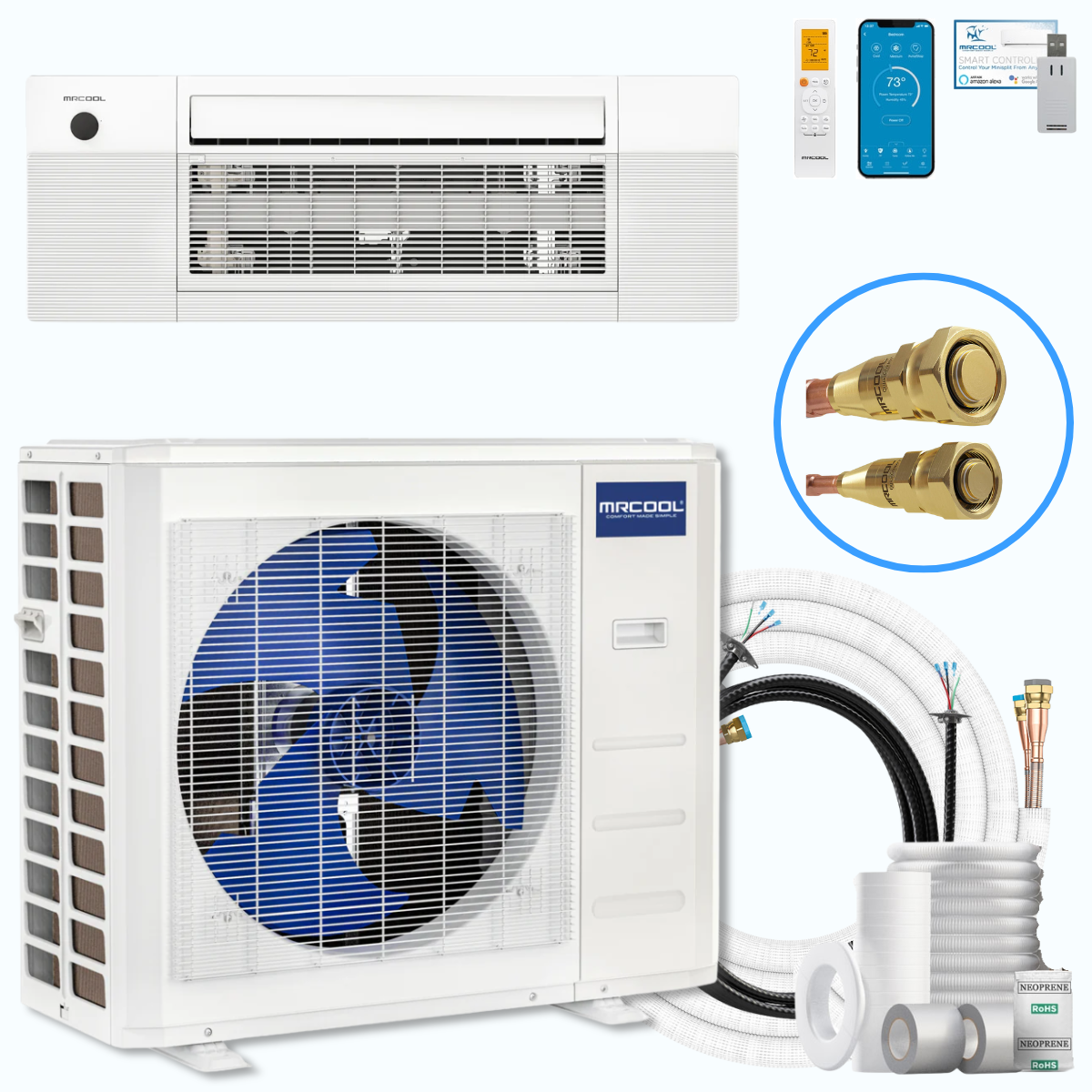

What’s in the Box

• ✅ 18,000 BTU outdoor condenser
• ✅ OuttaSight® ceiling cassette air handler
• ✅ 25 ft. pre-charged QuickConnect® line set (1/4" x 1/2", R-454B)
• ✅ DIYPRO® armored cable
• ✅ Remote control

Specifications & Dimensions

Shipping & Returns

🚚 Free Curbside Delivery
All MRCOOL orders ship free via FedEx Ground, FedEx Freight, or an equivalent trusted carrier. Delivery is curbside only — please arrange assistance in advance as carriers are not able to bring items inside your home.

Tracking & Delivery
Tracking information is typically provided within 3–5 business days of your order. Once received, please allow 1–2 business days for tracking details to update.

↩️ Return Policy

30-Day Return Window
Returns must be requested within 30 days of your delivery date. We are unable to accept return requests after this period.

Return Conditions
To qualify for a return, items must be unused and uninstalled, and in original packaging including box and pallet.

Restocking Fee
A 35% restocking fee applies to all approved returns.

📄 View Full Shipping Policy | 📄 View Full Return & Refund Policy

Frequently Asked Questions

What’s the difference between this and the wall-mount complete system?
This system includes the OuttaSight® ceiling cassette air handler instead of a wall-mount unit. The cassette installs flush between 16" ceiling joists for a concealed look — ideal for open-plan spaces, new construction, and rooms where wall space is limited. Performance and efficiency are the same.

Does the ceiling cassette fit standard joists?
Yes — the OuttaSight® cassette fits between standard 16" ceiling joists, including pre-manufactured I-joists, for a flush, concealed installation.

What suction line size does this unit use?
This unit uses a 1/2" suction line. The included 25 ft. QuickConnect® line set is pre-sized for this unit. If you need a longer run (up to 98.4 ft. max), make sure any additional line set uses 1/2" suction.

Does this qualify for tax credits or rebates?
Yes — as an Energy Star certified system with a 22.5 SEER2 and 11.5 HSPF2-4, this unit may qualify for the federal Residential Clean Energy Credit or utility rebate programs. Check with your local utility provider and a tax professional for eligibility.

What is the warranty?
This system is backed by MRCOOL’s best-in-class warranty:

• 7-Year Compressor Warranty
• 5-Year Parts Warranty

Recommended BTU By Room Size

Note: Actual performance may vary depending on room insulation, ceiling height, number of windows, climate zone, and heat-generating appliances.
