MRCOOL DIY® 5th Gen 36,000 BTU Mini-Split Condenser 230V – Single Zone, Up to 1,500 Sq. Ft. | DIY-36-HP-C-230D25-O
Couldn't load pickup availability

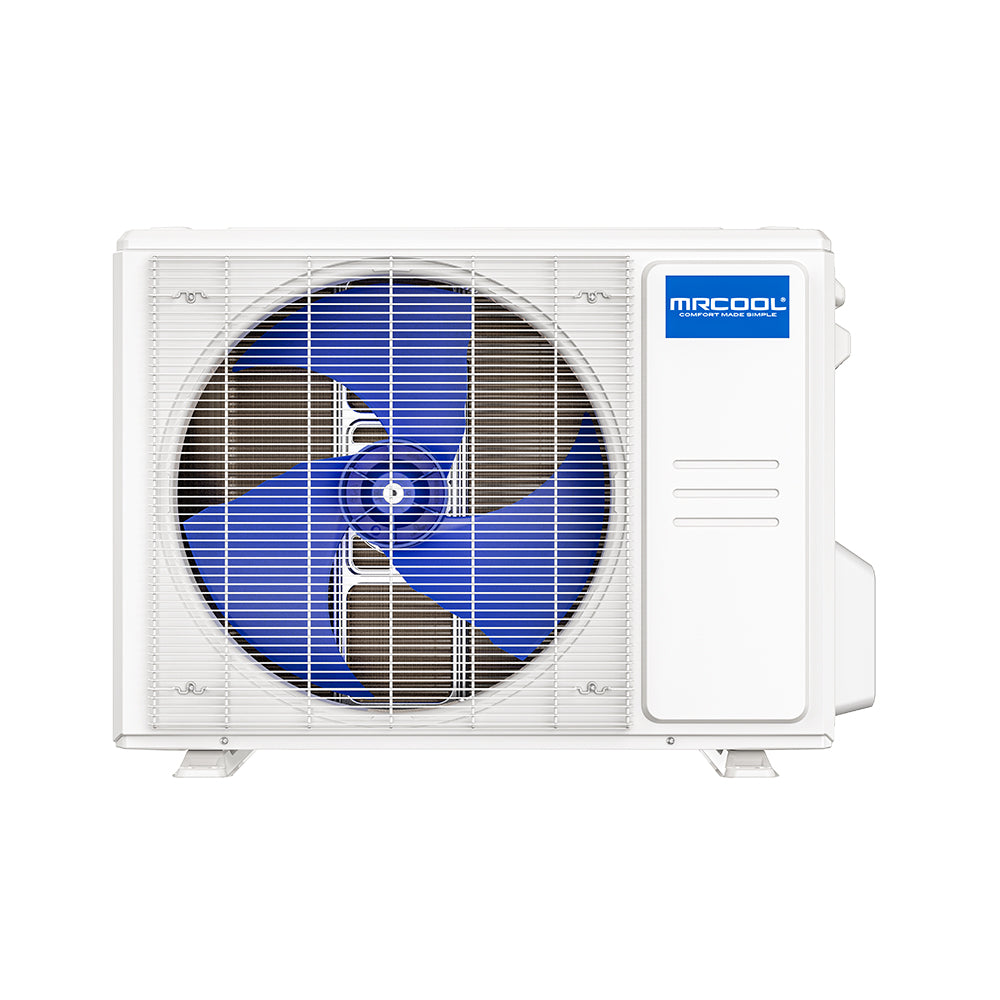

MRCOOL® DIY® 5th Gen 36,000 BTU Mini-Split Condenser – Single Zone, 230V

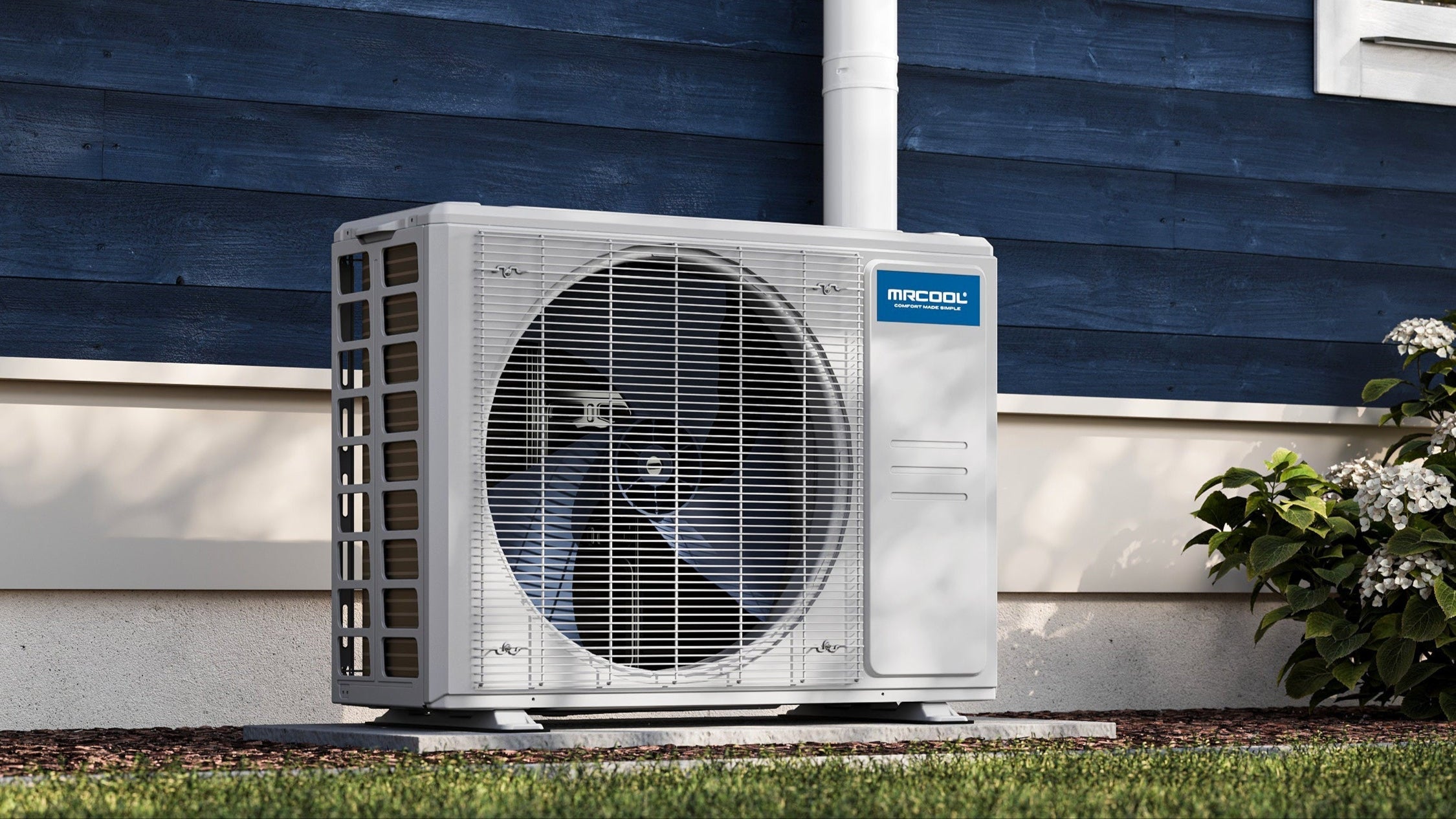

The MRCOOL® DIY® 5th Gen 36,000 BTU Condenser is a heavy-duty outdoor unit built for heating and cooling large spaces from 1,000 to 1,500 sq. ft. Pair it with a compatible MRCOOL DIY air handler and QuickConnect® line set for a complete DIY mini split system — no HVAC license, vacuum pump, or professional tools required. With a maximum line set length of 213.2 ft., it offers exceptional placement flexibility for large homes, workshops, and open-plan spaces.
Why Choose MRCOOL DIY® 5th Gen?
- America’s #1 DIY Mini Split — The most trusted DIY mini split brand in the nation, built for quick setup and long-term reliability.
- DIY QuickConnect® Compatible — Works with MRCOOL pre-charged QuickConnect® line sets for a fast, vacuum-free installation — no special tools needed.
- Eco-Friendly R-454B Refrigerant — Lower Global Warming Potential (GWP) than R-410A for better efficiency and a reduced environmental footprint.
- DIYPRO® Cable Compatible — Eliminates the need for electrical conduit. Built tough to withstand outdoor elements and wildlife for lasting performance.
- Multiple Wireless Control Options — Control via included remote, the SmartHVAC app (iOS & Android), or hands-free with Amazon Alexa or Google Assistant.
- 213.2 ft. Max Line Set Length — Exceptional placement flexibility for large properties and complex installations.
- Quiet Operation — Runs at just 60.5 dB(A) outdoors for minimal disruption.
- Gold Fin® Condenser Coating — Superior corrosion resistance, ideal for coastal homes and harsh climates.
- Best-in-Class Warranty — 7-year compressor warranty + 5-year parts warranty for total peace of mind.
- Certified Excellence — UL Listed, ETL Listed, AHRI Certified.
Product Overview
- 🏠 Zones: 1
- 📐 Coverage: 1,000–1,500 sq. ft.
- 🔧 Installation: DIY — No Professional Required
- ⚡ Voltage: 208-230V
- ⭐ Certification: UL Listed, ETL Listed, AHRI Certified
- 🧄 Refrigerant: R-454B
What’s in the Box
- ✅ 36,000 BTU outdoor condenser
- ✅ 25 ft. pre-charged QuickConnect® line set
- ✅ DIYPRO® cable
Specifications & Dimensions
| Capacity & Performance | |
|---|---|
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| Coverage Area | 1,000–1,500 sq. ft. |
| SEER2 | 18.0 |
| EER2 | 8.5 |
| HSPF2-4 | 8.5 |
| HSPF2-5 | 6.5 |
| Outdoor Noise Level | 60.5 dB(A) |
| Electrical Requirements | |
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 35A |
| Min Circuit Ampacity | 33A |
| Refrigerant & Piping | |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 109.70 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 5/8" |
| Max Line Set Length | 213.2 ft. |
| Dimensions & Weight | |
| Dimensions | 37.24" W x 16.14" D x 31.89" H |
| Weight | 152.12 lbs |
| Features | |
| Inverter | DC |
| Compressor Type | Rotary |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| WiFi Compatibility | Yes |
| App Compatibility | Yes |
| Works with iOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| Certifications & Warranty | |
| Certifications | UL Listed, ETL Listed, AHRI Certified |
| Parts Warranty | 5 Years |
| Compressor Warranty | 7 Years |
Shipping & Returns
🚚 Free Curbside Delivery
All MRCOOL orders ship free via FedEx Ground, FedEx Freight, or an equivalent trusted carrier. Delivery is curbside only — please arrange assistance in advance as carriers are not able to bring items inside your home.
Tracking & Delivery
Tracking information is typically provided within 3–5 business days of your order. Once received, please allow 1–2 business days for tracking details to update.
↩️ Return Policy
30-Day Return Window
Returns must be requested within 30 days of your delivery date. We are unable to accept return requests after this period.
Return Conditions
To qualify for a return, items must be unused and uninstalled, and in original packaging including box and pallet.
Restocking Fee
A 35% restocking fee applies to all approved returns.
📄 View Full Shipping Policy | 📄 View Full Return & Refund Policy
Frequently Asked Questions
What air handler is compatible with this condenser?
This condenser is compatible with MRCOOL DIY® 5th Gen 36,000 BTU air handlers. Always match BTU capacity and voltage when pairing components, and use a compatible MRCOOL QuickConnect® line set.
Can I install it myself, or do I need a professional?
Yes — that’s the beauty of the MRCOOL DIY® system. No HVAC tools or certification required. You connect the indoor and outdoor units yourself using a pre-charged QuickConnect® line set. The only professional you’ll need is a licensed electrician for the electrical hookup.
What is the maximum line set length?
The maximum line set length is 213.2 ft., giving you exceptional flexibility in placing the condenser away from the air handler — ideal for large homes and complex layouts.
Does it work in cold weather?
Yes. This unit is designed for year-round use. Check the compatible air handler’s heating range specifications for low-ambient performance details.
What is the warranty?
Your purchase is backed by MRCOOL’s best-in-class warranty:
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
Recommended BTU By Room Size
| BTU Capacity | Recommended Room Size (Sq. Ft.) |
|---|---|
| 9,000 BTU | 151–350 sq. ft. |
| 12,000 BTU | 351–500 sq. ft. |
| 18,000 BTU | 501–750 sq. ft. |
| 24,000 BTU | 751–1,000 sq. ft. |
| 36,000 BTU ← You Are Here | 1,000–1,500 sq. ft. |
Note: Actual performance may vary depending on room insulation, ceiling height, number of windows, climate zone, and heat-generating appliances.
