MRCOOL DIY® 5th Gen EasyPro® 12,000 BTU Mini-Split Complete System 115V – Single Zone, Up to 550 Sq. Ft. | EZPRO-12-HP-11516DE-O
Couldn't load pickup availability

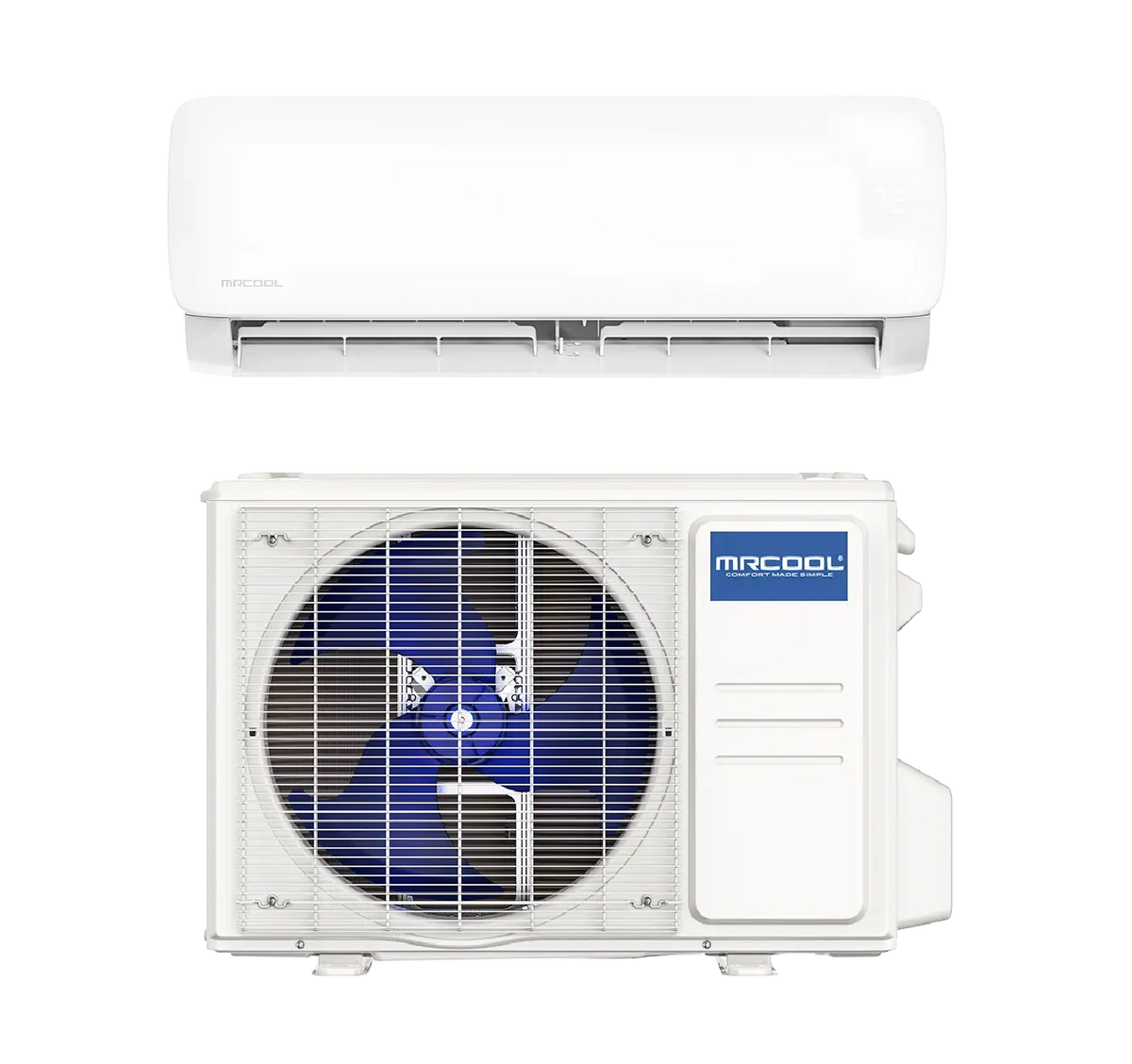

MRCOOL® DIY® 5th Gen EasyPro® 12,000 BTU Mini-Split Complete System – Single Zone, 115V

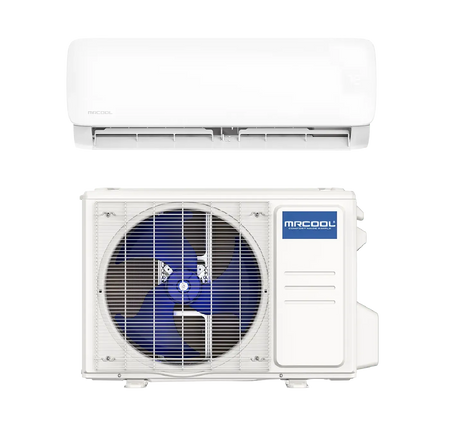

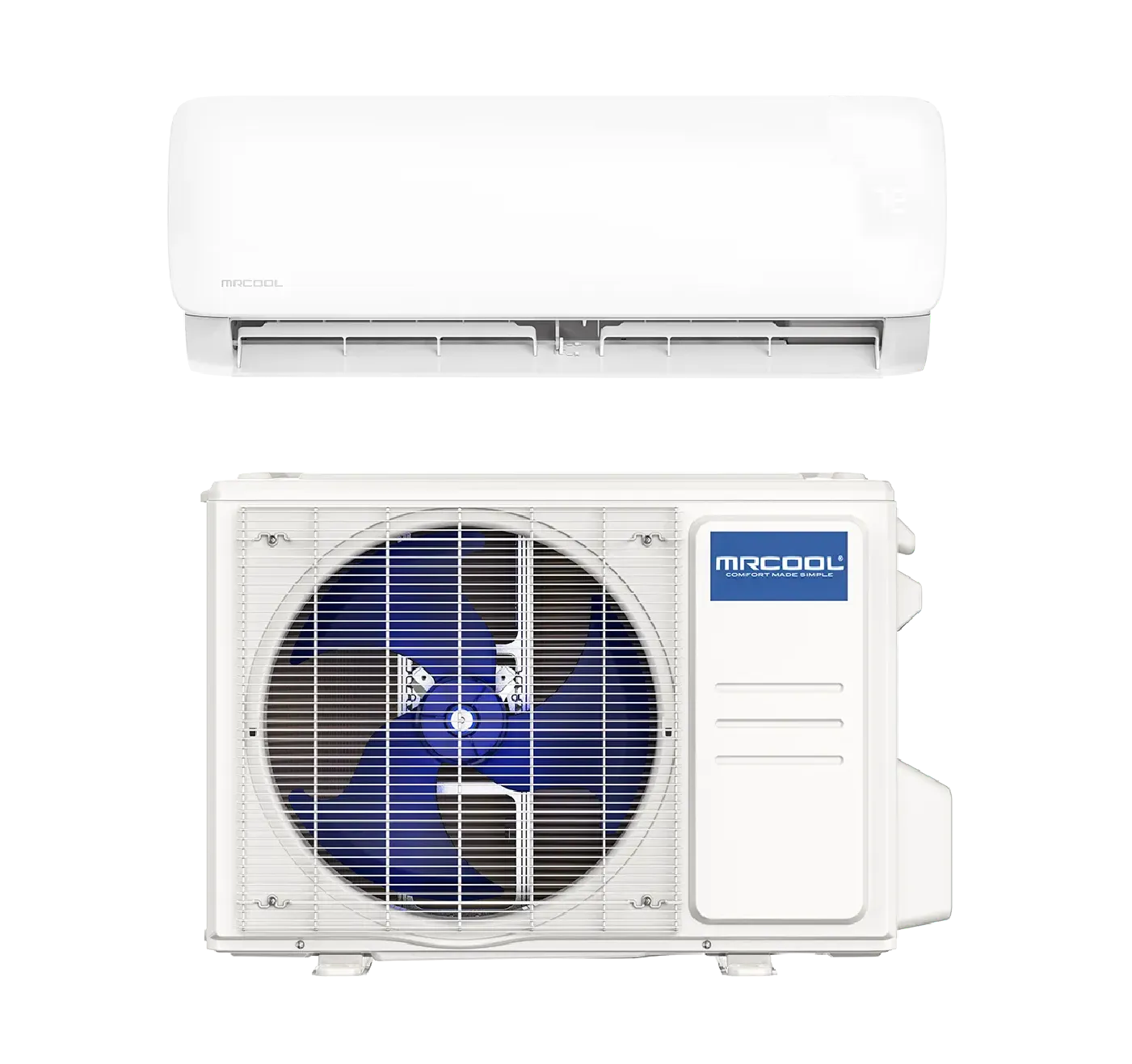

The MRCOOL® DIY® 5th Gen EasyPro® 12,000 BTU Complete System delivers professional-grade heating and cooling for spaces up to 550 sq. ft. — with a better warranty and higher efficiency than the DIY Select. Everything is included: condenser, air handler, and an 11.5 ft. pre-charged QuickConnect® line set. Plugs into a standard 115V outlet with no vacuum pumps, no manifold gauges, and no HVAC license required.
Why Choose MRCOOL DIY® 5th Gen EasyPro®?
- 19.5 SEER2 — Higher Efficiency Than DIY Select — More energy savings year over year compared to the entry-level Select series.
- Plug-In 115V Operation — Works with a standard household outlet. No 230V wiring or electrical panel upgrade needed.
- Included 11.5 ft. QuickConnect® Line Set — Pre-charged with R-454B refrigerant for a fast, vacuum-free installation right out of the box.
- DC Inverter Technology — Variable-speed compressor continuously adjusts output to match your space’s exact demand, reducing energy use and maintaining consistent temperatures.
- Ultra-Quiet Operation — As low as 17.5 dB(A) on low fan speed — ideal for bedrooms and home offices.
- Smart Connectivity — Control via the MRCOOL Smart HVAC Controller® app (iOS & Android), or hands-free with Amazon Alexa or Google Assistant.
- Gold Fin® Coil Protection — Superior corrosion resistance, ideal for coastal homes and humid climates.
- Washable, Reusable Filters — No recurring filter replacement costs.
- Better Warranty Than DIY Select — 5-year compressor warranty + 3-year parts warranty.
- Certified Excellence — UL Listed, CSA Listed, ETL Listed, AHRI Certified.
Product Overview
- 🏠 Zones: 1
- 📐 Coverage: Up to 550 sq. ft.
- 🔧 Installation: DIY — No Professional Required
- ⚡ Voltage: 115V (standard household outlet)
- 🔇 Noise Level: As low as 17.5 dB(A)
- ⭐ Certification: UL Listed, CSA Listed, ETL Listed, AHRI Certified
- 🧄 Refrigerant: R-454B

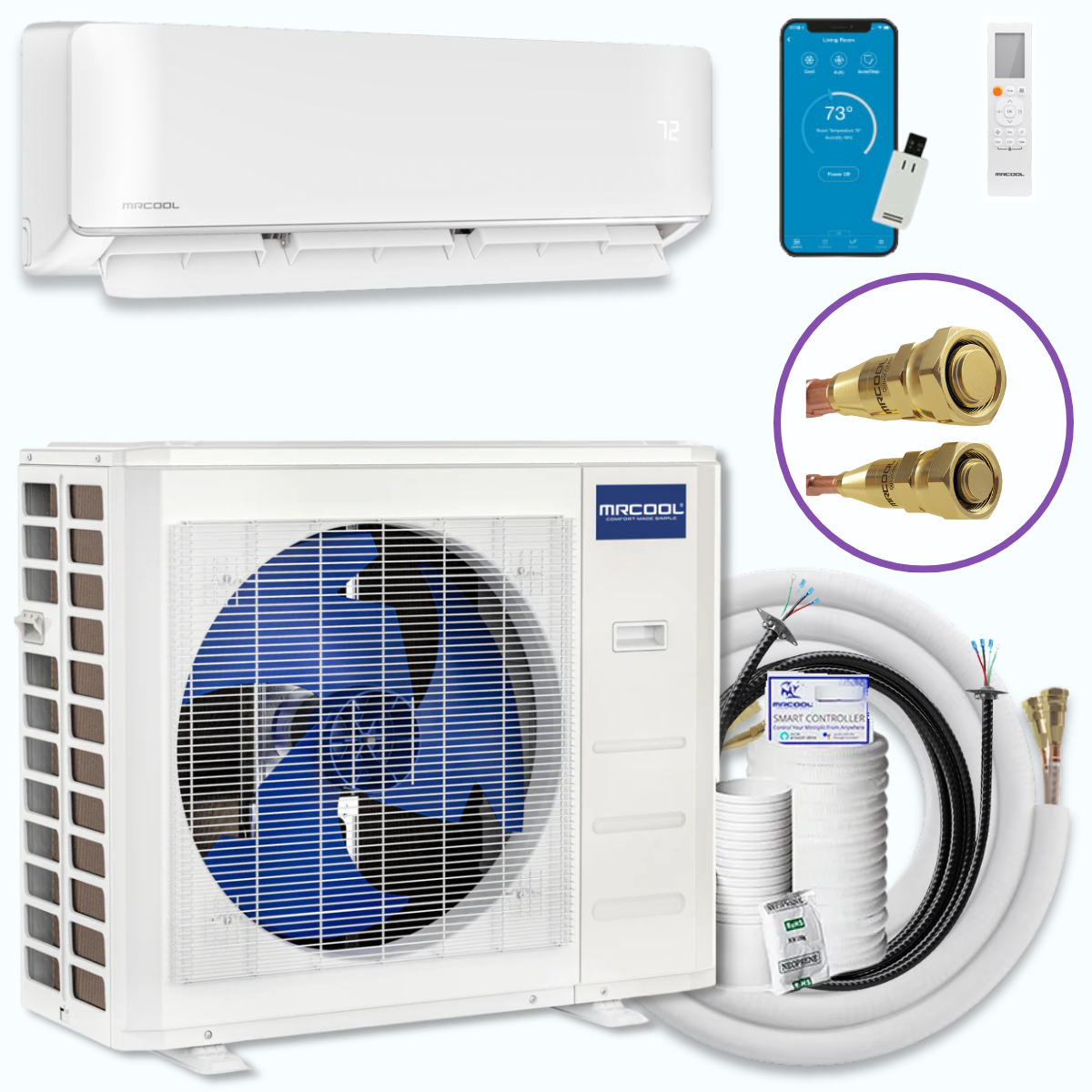

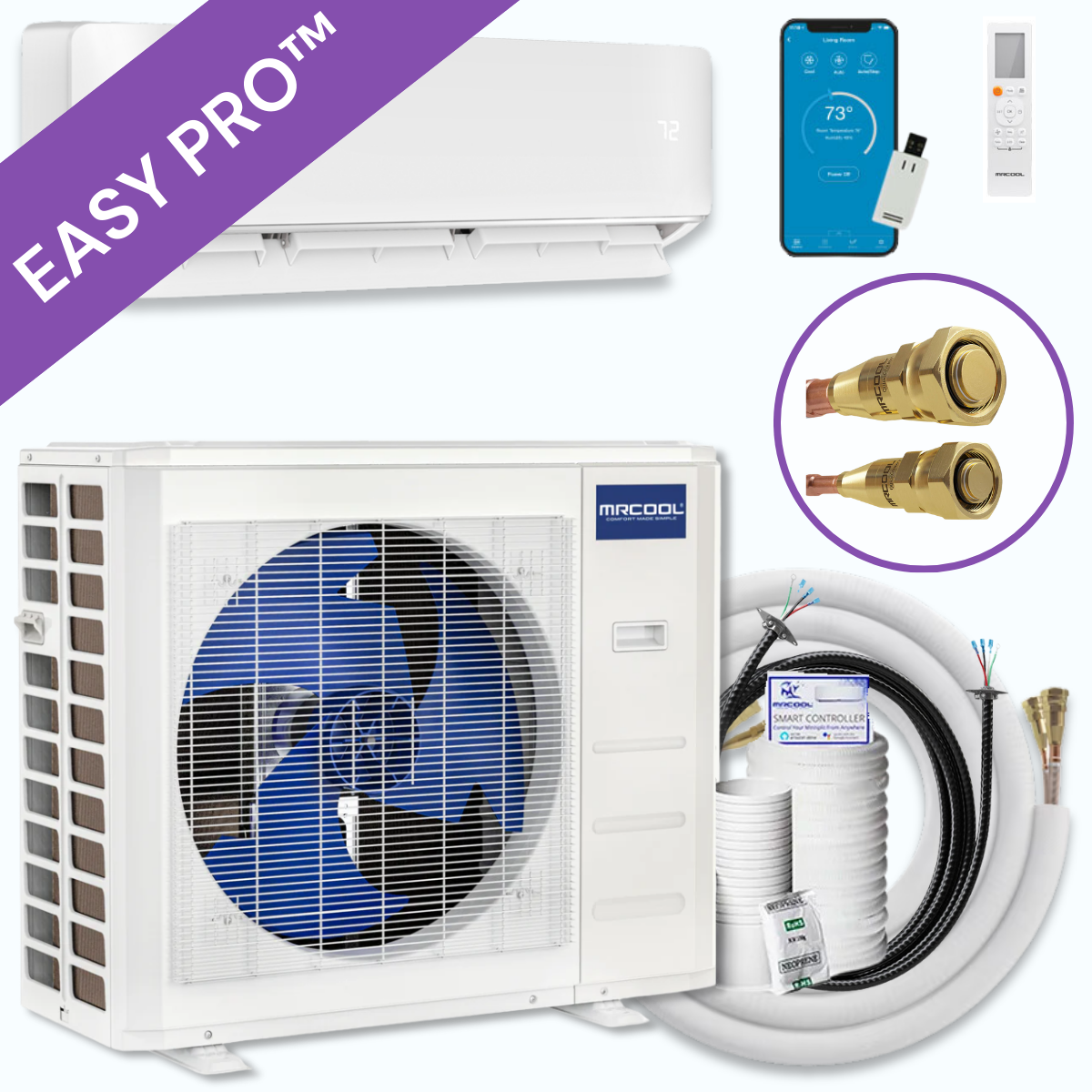

What’s in the Box

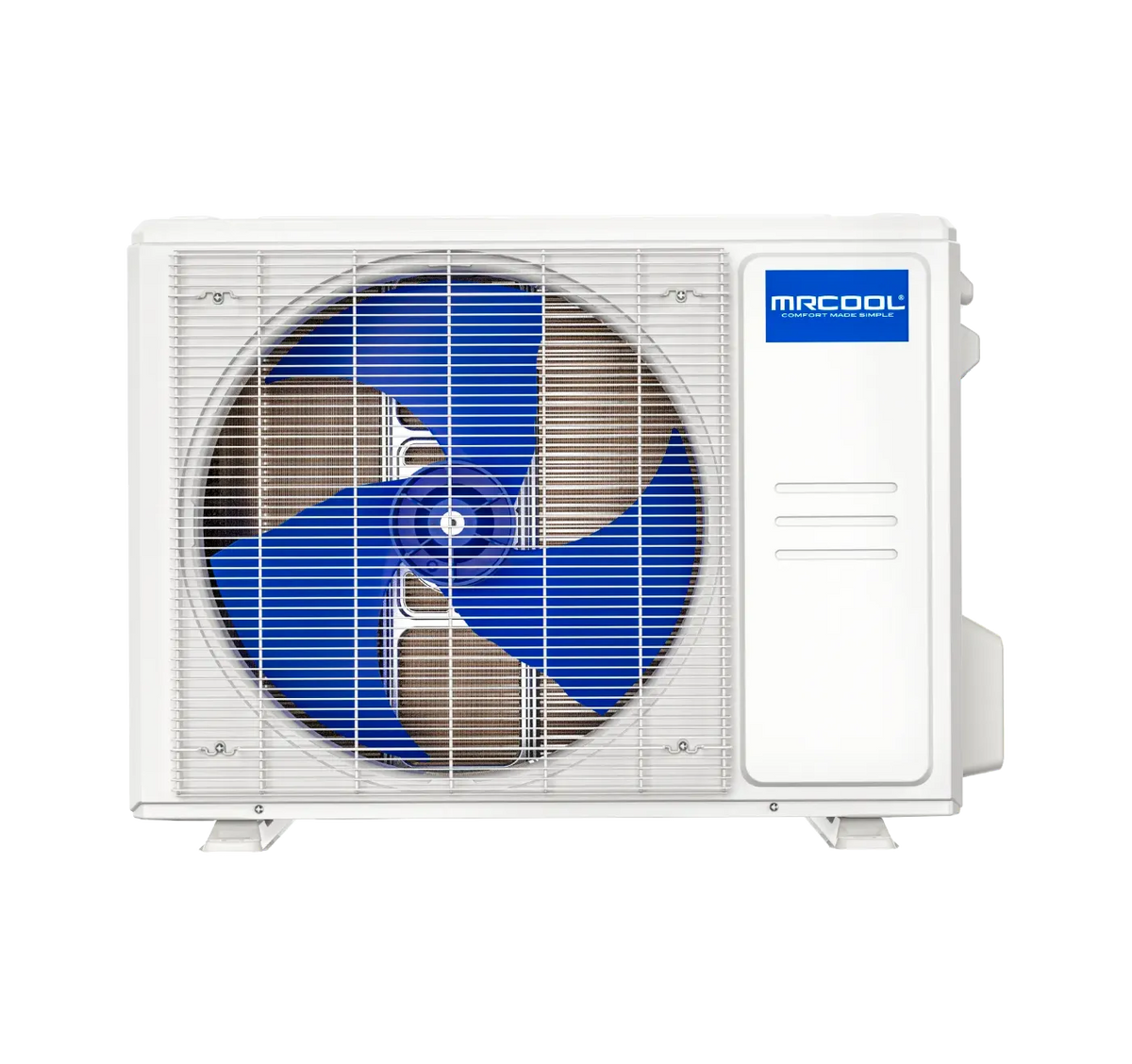

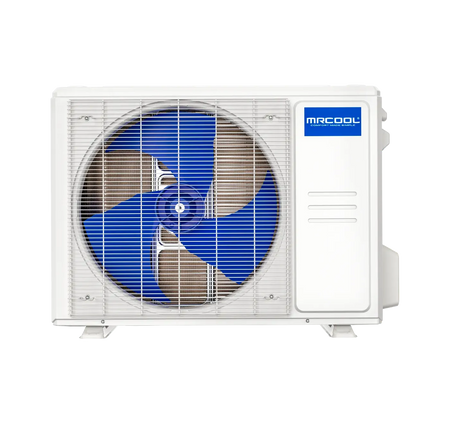

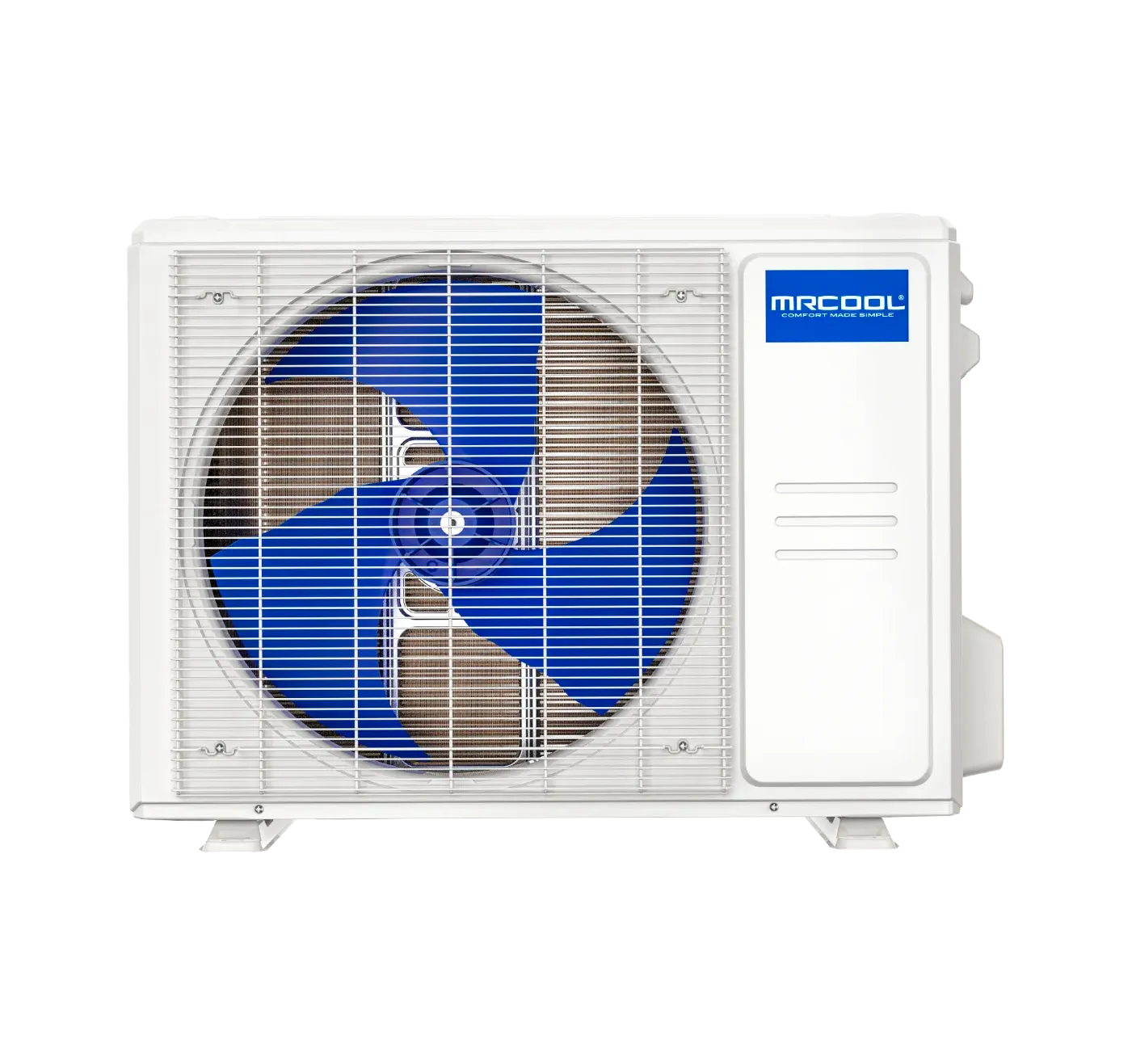

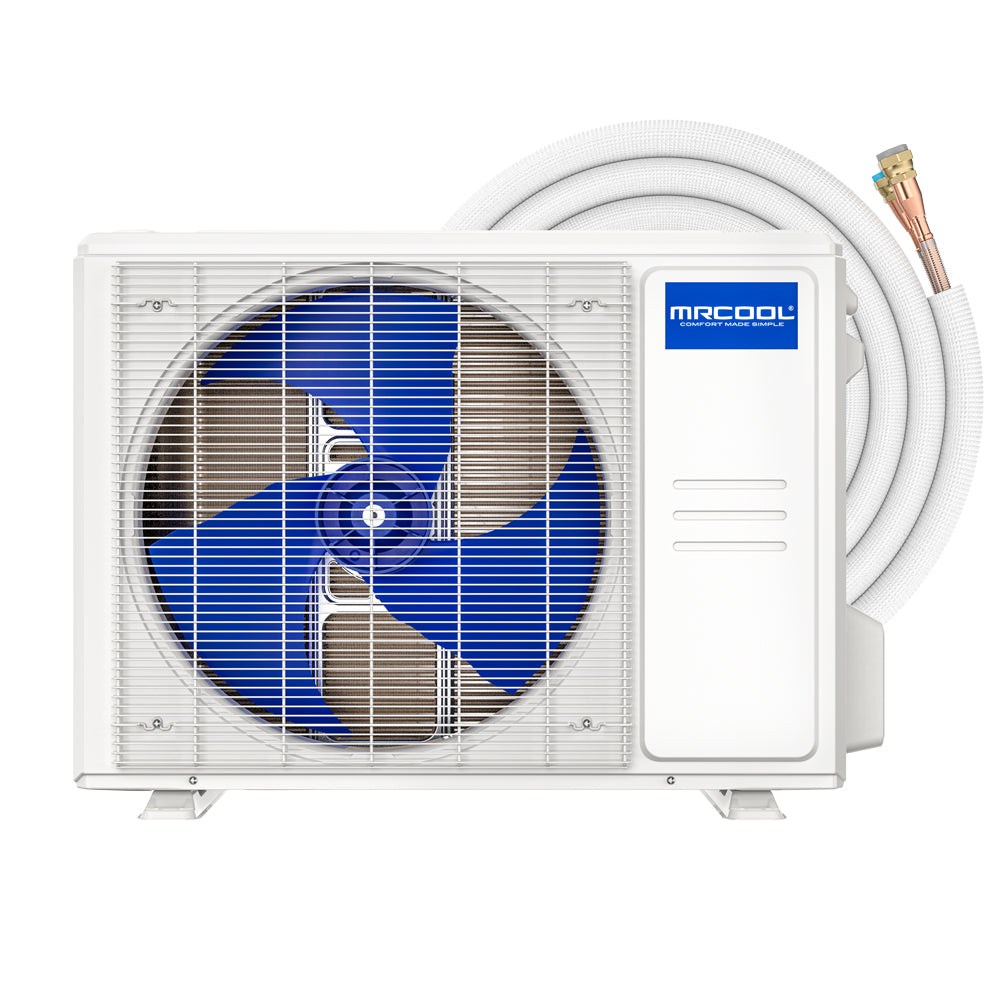

- ✅ 12,000 BTU outdoor condenser

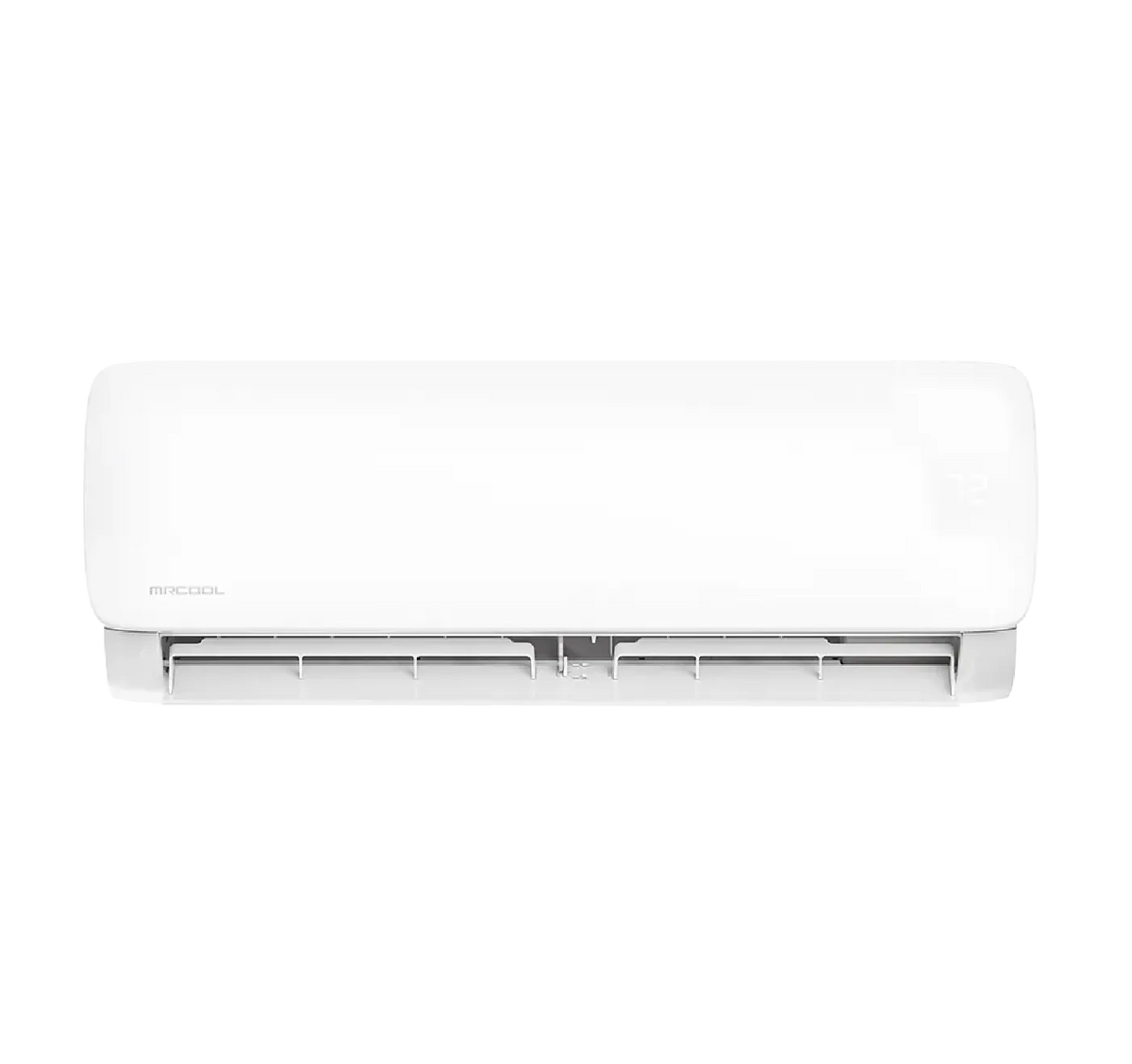

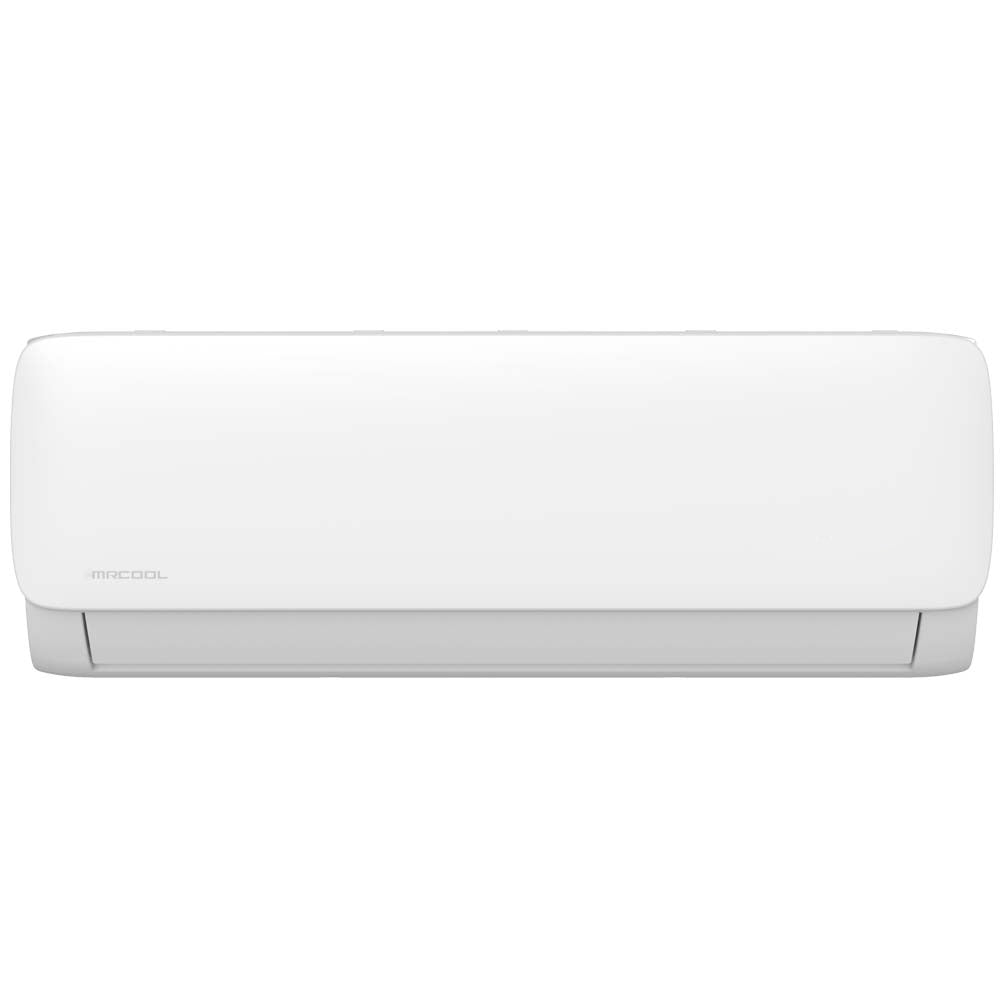

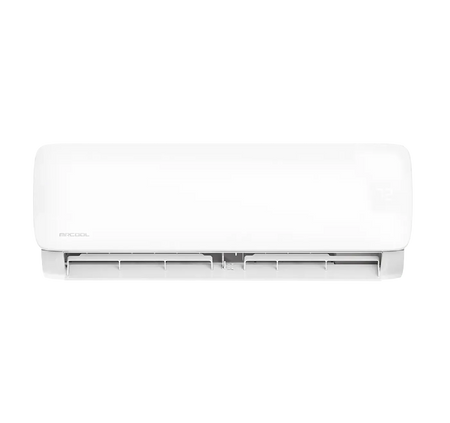

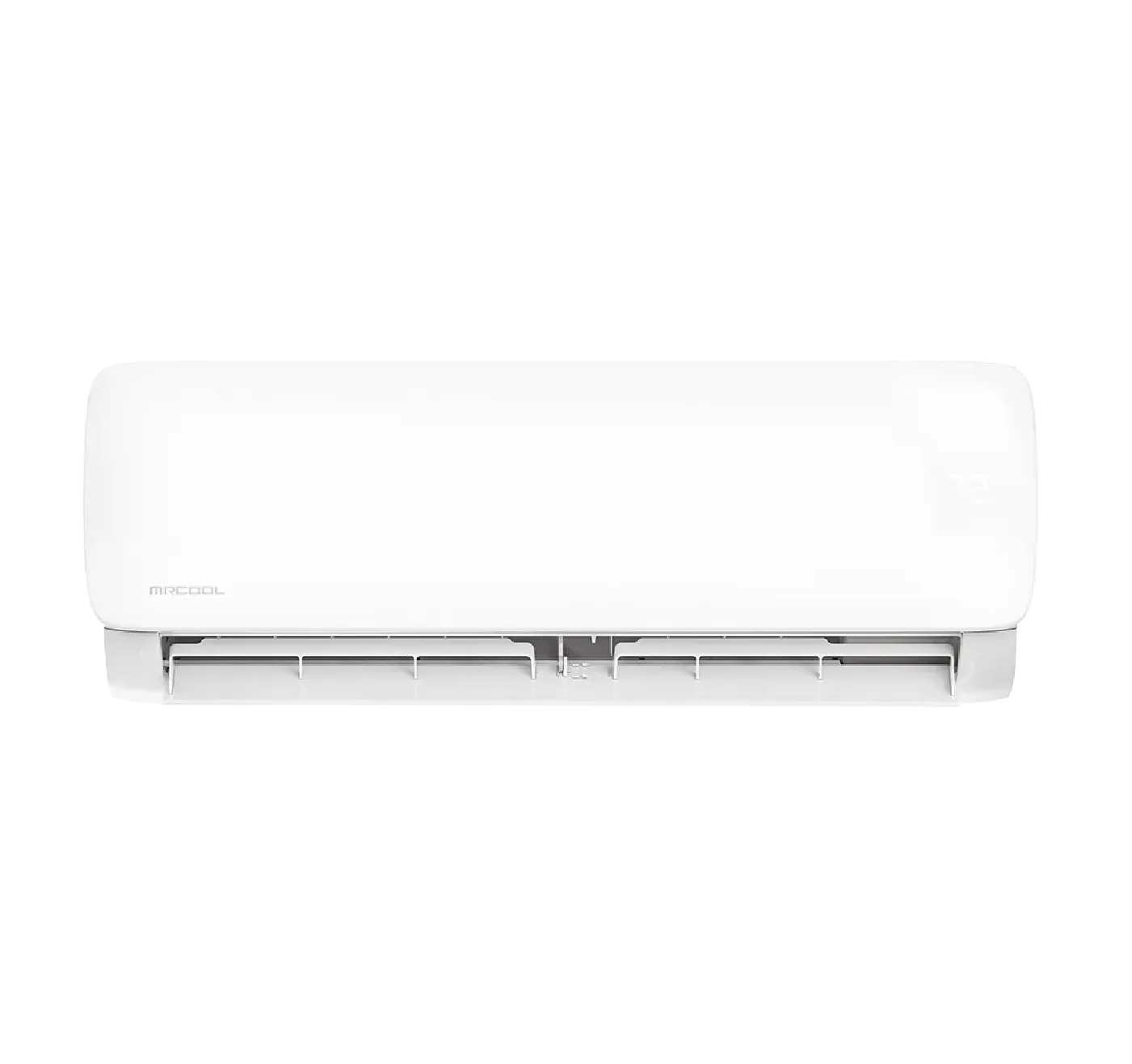

- ✅ Indoor wall-mount air handler
- ✅ 11.5 ft. pre-charged QuickConnect® line set (1/4" x 3/8", R-454B)
- ✅ Communication cable
- ✅ Remote control
Specifications & Dimensions
| Capacity & Performance | |
|---|---|
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Coverage Area | Up to 550 sq. ft. |
| SEER2 | 19.5 |
| EER2 | 9.0 |
| HSPF2-4 | 9.3 |
| HSPF2-5 | 7.0 |
| Cooling Range | 5°F to 122°F outdoor |
| Heating Range | -13°F to 75°F outdoor |
| Indoor Noise (Hi/Mi/Lo) | 44.5 / 35 / 17.5 dB(A) |
| Outdoor Noise Level | 54 dB(A) |
| Electrical Requirements | |
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 19.5A |
| Refrigerant & Piping | |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 21.52 oz |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Max Line Set Length | 82 ft. |
| Dimensions & Weight | |
| Condenser Dimensions | 28.35" W x 10.63" D x 19.49" H |
| Condenser Weight | 54.89 lbs |
| Air Handler Dimensions | 31.57" W x 7.87" D x 11.61" H |
| Air Handler Weight | 24.91 lbs |
| Features | |
| Inverter | DC |
| Auto Cool | Yes |
| WiFi Compatibility | Yes |
| App Compatibility | Yes |
| Works with iOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| Certifications & Warranty | |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Parts Warranty | 3 Years |
| Compressor Warranty | 5 Years |
Shipping & Returns
🚚 Free Curbside Delivery
All MRCOOL orders ship free via FedEx Ground, FedEx Freight, or an equivalent trusted carrier. Delivery is curbside only — please arrange assistance in advance as carriers are not able to bring items inside your home.
Tracking & Delivery
Tracking information is typically provided within 3–5 business days of your order. Once received, please allow 1–2 business days for tracking details to update.
↩️ Return Policy
30-Day Return Window
Returns must be requested within 30 days of your delivery date. We are unable to accept return requests after this period.
Return Conditions
To qualify for a return, items must be unused and uninstalled, and in original packaging including box and pallet.
Restocking Fee
A 35% restocking fee applies to all approved returns.
📄 View Full Shipping Policy | 📄 View Full Return & Refund Policy
Frequently Asked Questions
How does the EasyPro® compare to the DIY Select and DIY 5th Gen?
The EasyPro® sits between the two. It has a higher SEER2 (19.5) and better warranty (5-yr compressor / 3-yr parts) than the DIY Select, but a shorter warranty and lower SEER2 than the premium DIY 5th Gen (which offers 7-yr compressor and Energy Star certification). It’s the best value for buyers who want more than entry-level without paying full premium price.
Does it need special wiring?
No — the EasyPro® 12K runs on standard 115V household power. No 230V wiring or electrical panel upgrade required, though a dedicated 20A circuit is recommended.
What is the minimum cooling temperature?
The EasyPro® cools down to 5°F outdoor temperature (vs. -13°F on the DIY 5th Gen). For heating, it operates down to -13°F. If you need cooling in extreme cold climates, consider the DIY 5th Gen instead.
Is it Wi-Fi compatible?
Yes. Control your system from anywhere using the MRCOOL Smart HVAC Controller® app on iOS or Android. It also works with Amazon Alexa and Google Assistant for hands-free voice control.
What is the warranty?
The EasyPro® is backed by:
- 5-Year Compressor Warranty
- 3-Year Parts Warranty
Recommended BTU By Room Size
| BTU Capacity | Recommended Room Size (Sq. Ft.) |
|---|---|
| 9,000 BTU | Up to 400 sq. ft. |
| 12,000 BTU ← You Are Here | Up to 550 sq. ft. |
| 18,000 BTU | 501–750 sq. ft. |
| 24,000 BTU | 751–1,000 sq. ft. |
| 36,000 BTU | 1,001–1,500 sq. ft. |
Note: Actual performance may vary depending on room insulation, ceiling height, number of windows, climate zone, and heat-generating appliances.
