MRCOOL® DIY® 5th Gen EasyPro® 18,000 BTU Mini-Split Complete System – Single Zone, 230V

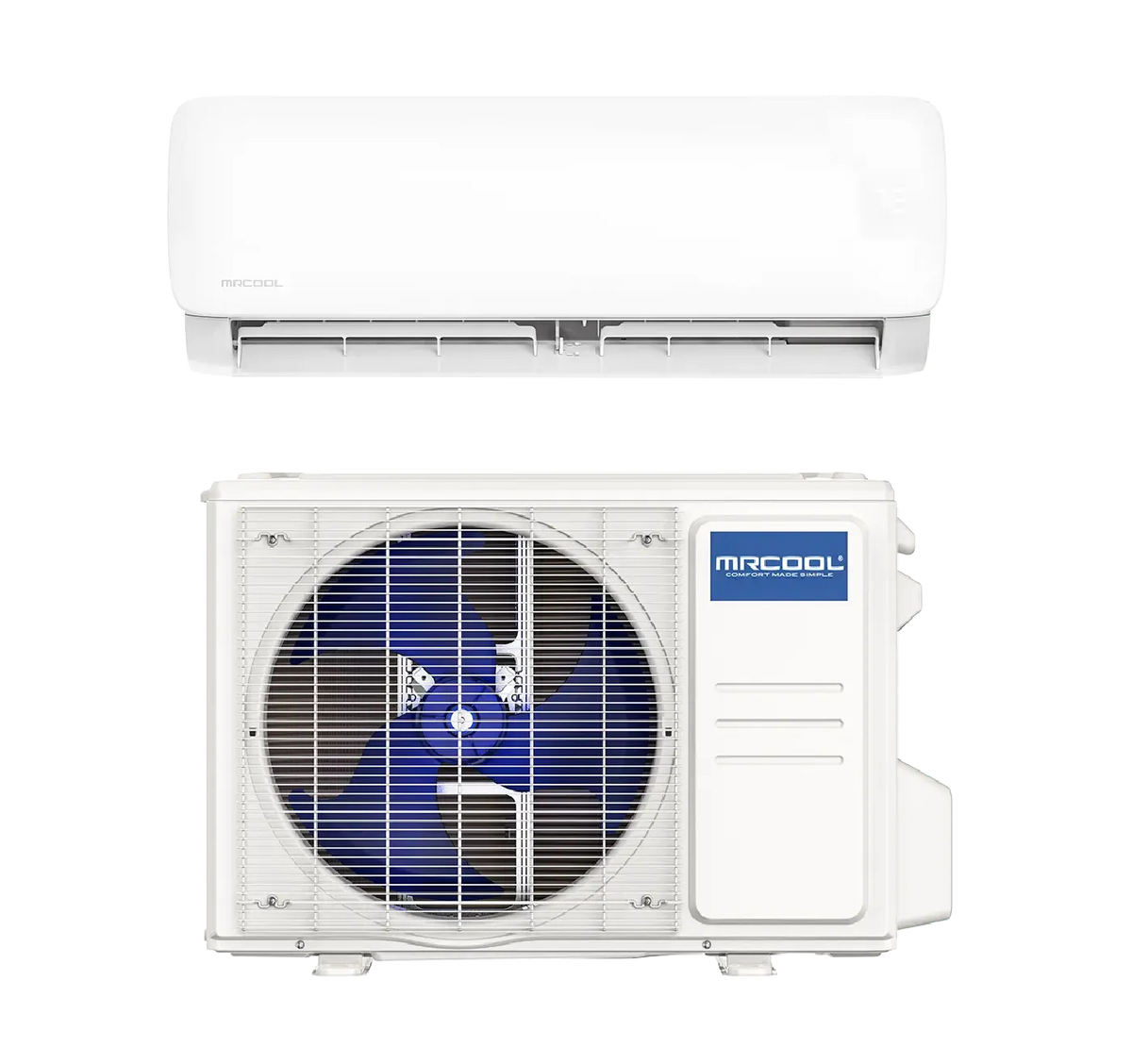

The MRCOOL® DIY® 5th Gen EasyPro® 18,000 BTU Complete System delivers professional-grade heating and cooling for spaces up to 800 sq. ft. with a better warranty and higher efficiency than the DIY Select. Everything is included: condenser, air handler, and an 11.5 ft. pre-charged QuickConnect® line set. Runs on 230V and uses a 1/2" suction line — a dedicated 230V circuit is required. Additional line set lengths are available separately.
Why Choose MRCOOL DIY® 5th Gen EasyPro®?
- 20.0 SEER2 — Higher Efficiency Than DIY Select — More energy savings year over year compared to the entry-level Select series.
- Included 11.5 ft. QuickConnect® Line Set — Pre-charged with R-454B refrigerant for a fast, vacuum-free installation right out of the box.
- DC Inverter Technology — Variable-speed compressor continuously adjusts output to match your space’s exact demand, reducing energy use and maintaining consistent temperatures.
- Ultra-Quiet Operation — As low as 18.5 dB(A) on low fan speed — ideal for bedrooms and home offices.
- Smart Connectivity — Control via the MRCOOL Smart HVAC Controller® app (iOS & Android), or hands-free with Amazon Alexa or Google Assistant.
- Gold Fin® Coil Protection — Superior corrosion resistance, ideal for coastal homes and humid climates.
- Washable, Reusable Filters — No recurring filter replacement costs.
- Eco-Friendly R-454B Refrigerant — Lower Global Warming Potential (GWP) than R-410A.
- Better Warranty Than DIY Select — 5-year compressor warranty + 3-year parts warranty.
Product Overview
- 🏠 Zones: 1
- 📐 Coverage: Up to 800 sq. ft.
- 🔧 Installation: DIY — No Professional Required
- ⚡ Voltage: 208-230V (dedicated circuit required)
- 🔇 Noise Level: As low as 18.5 dB(A)
- 🧄 Refrigerant: R-454B
- ⚠️ Note: Uses 1/2" suction line — verify line set compatibility before ordering

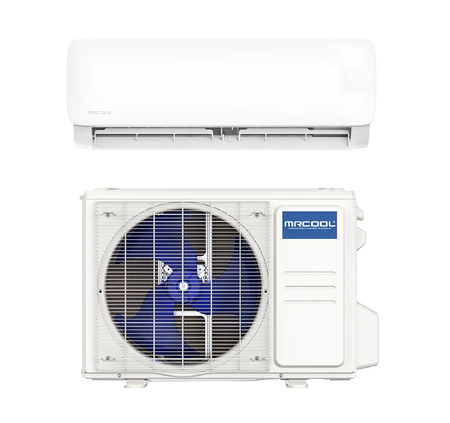

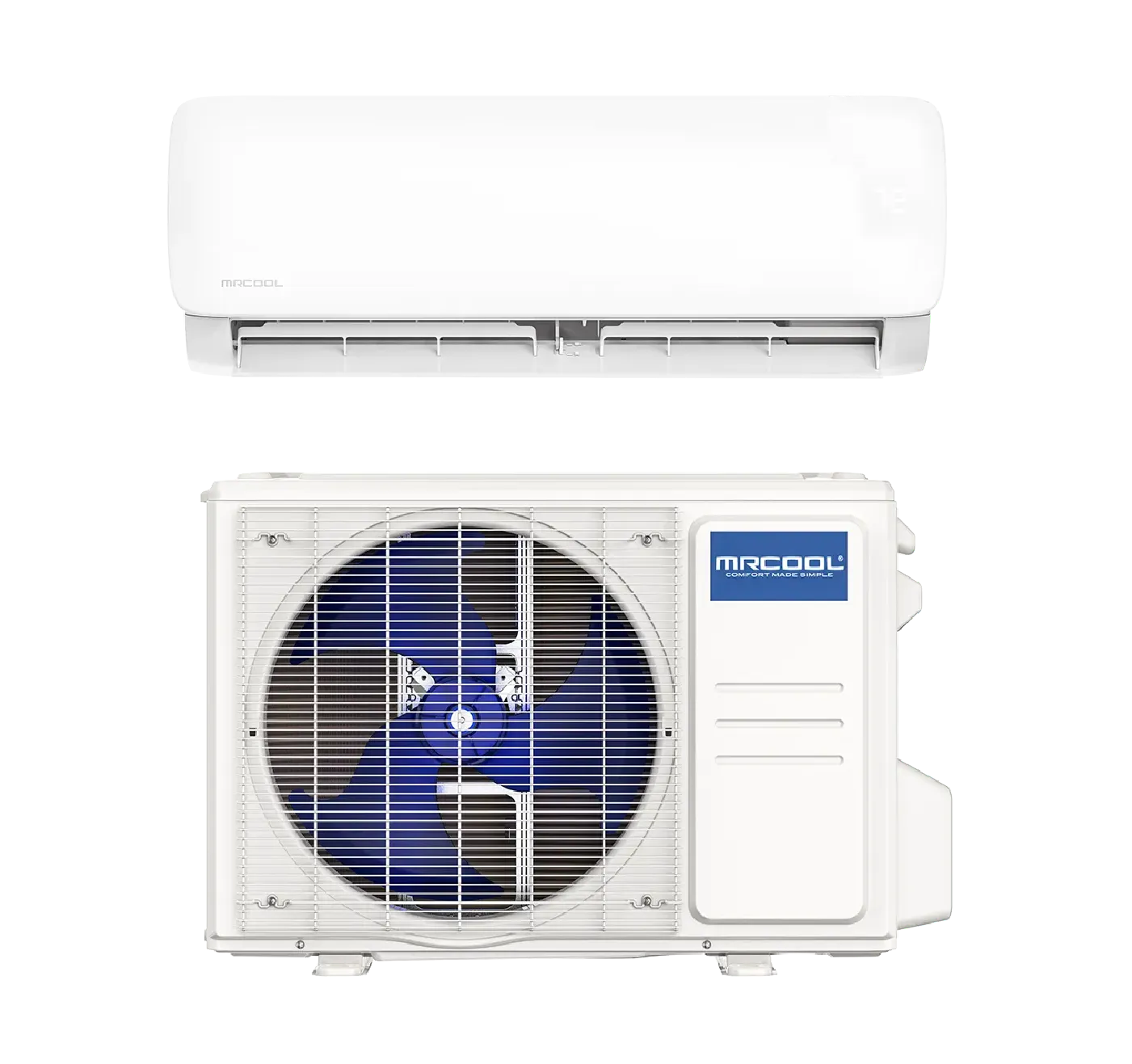

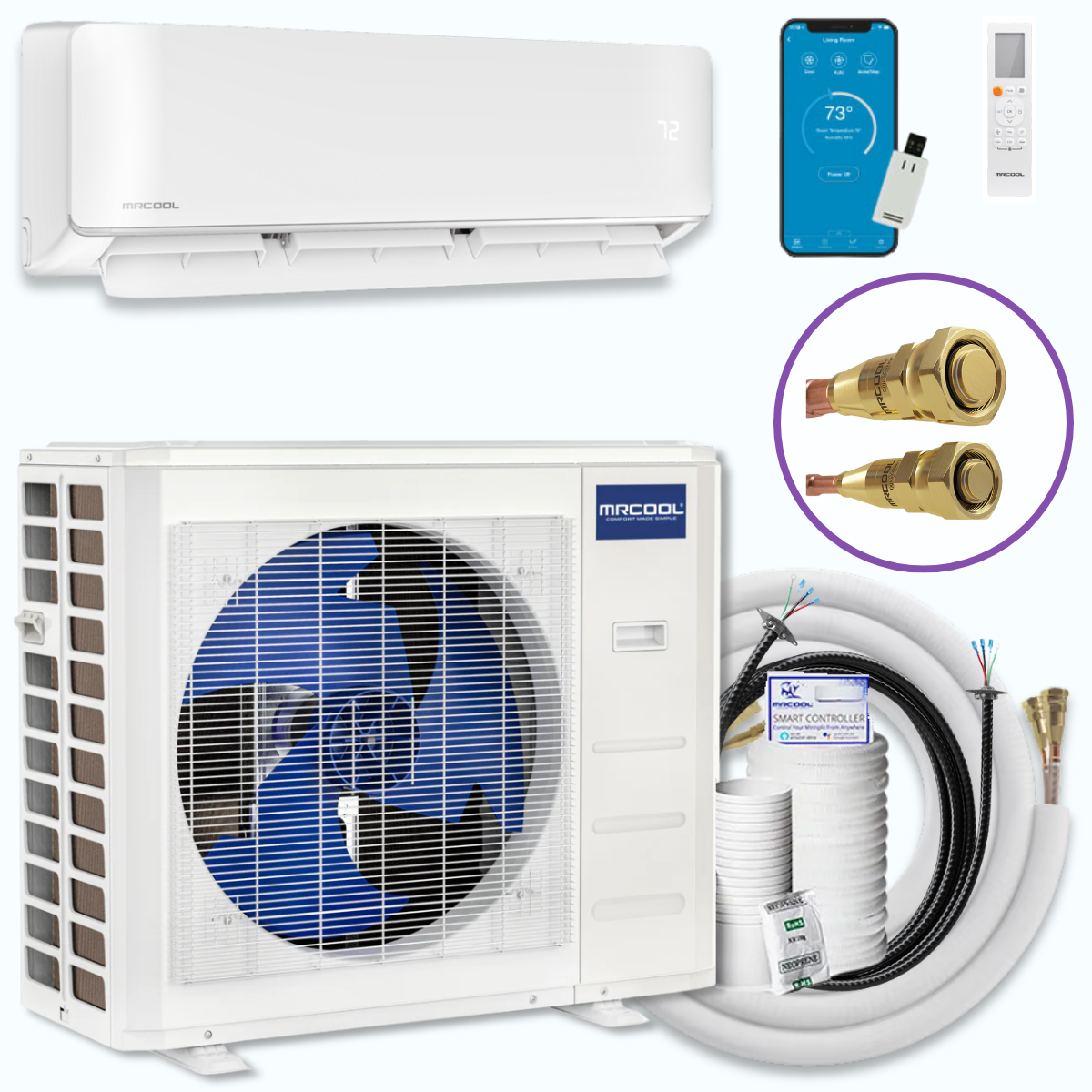

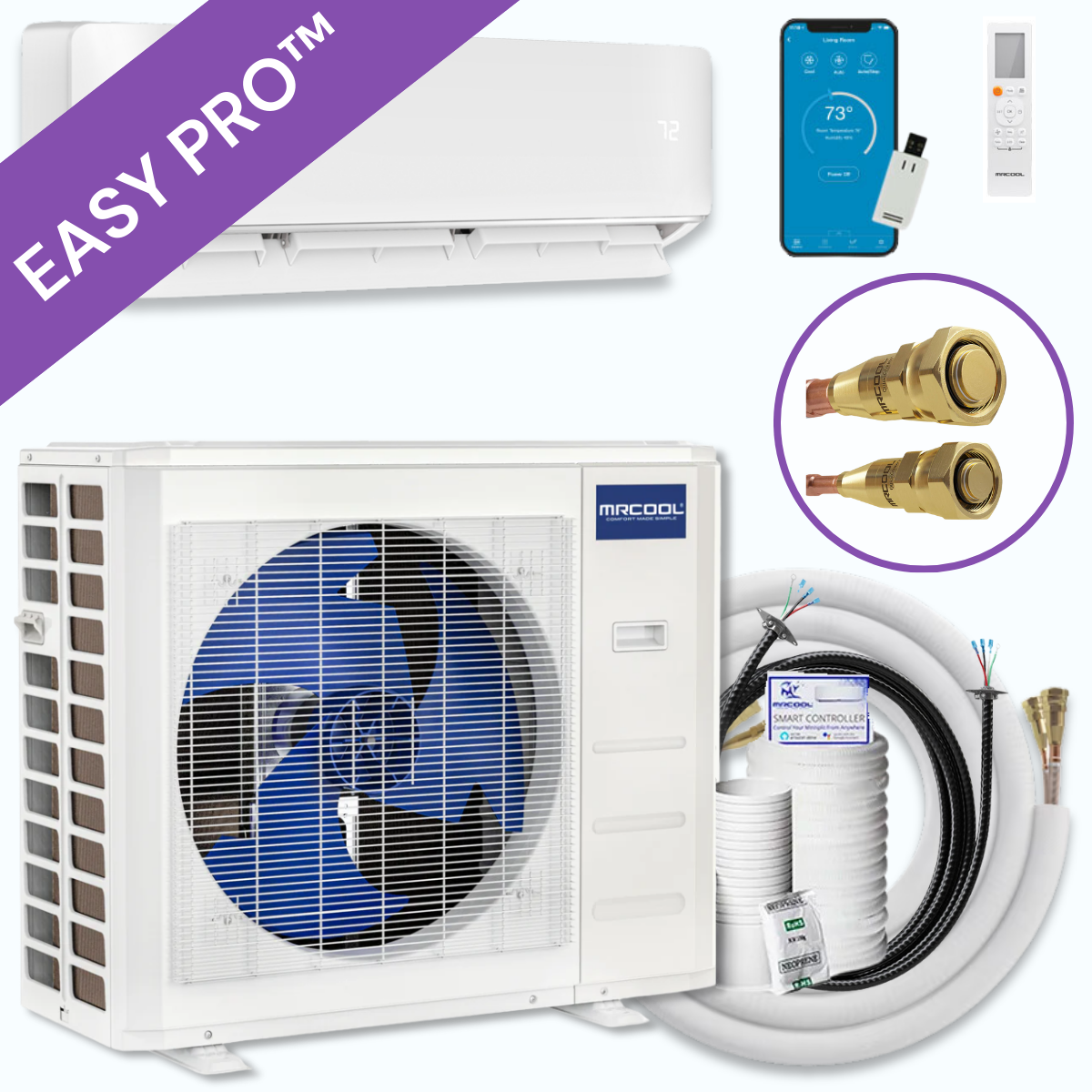

What’s in the Box

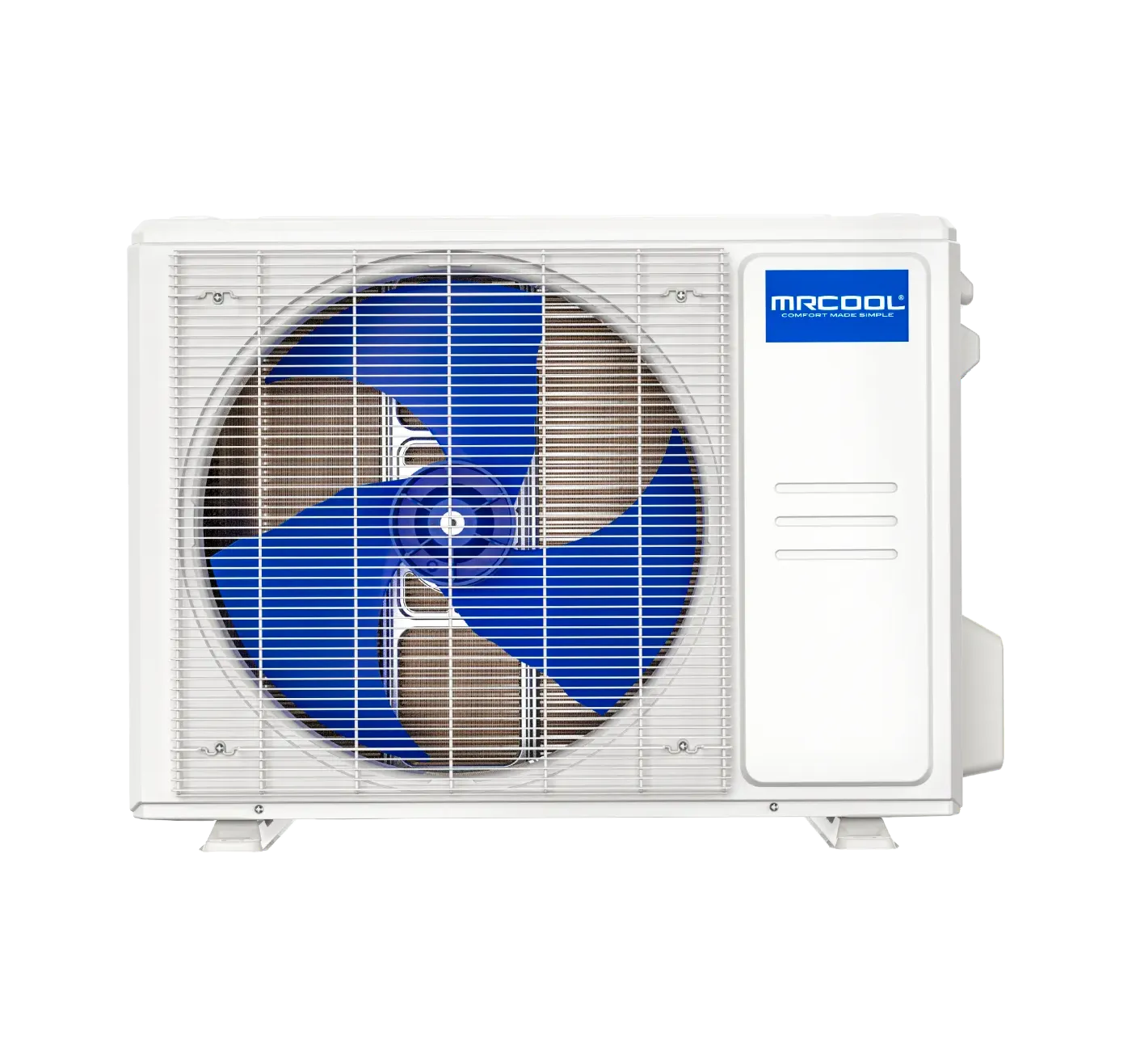

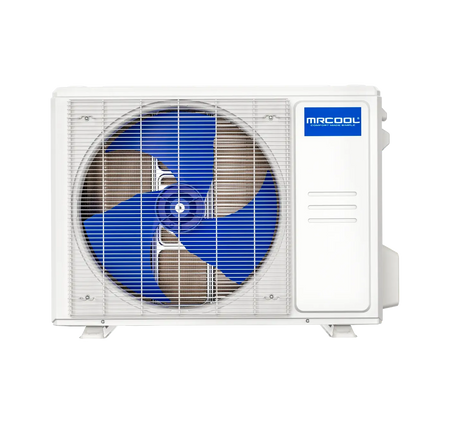

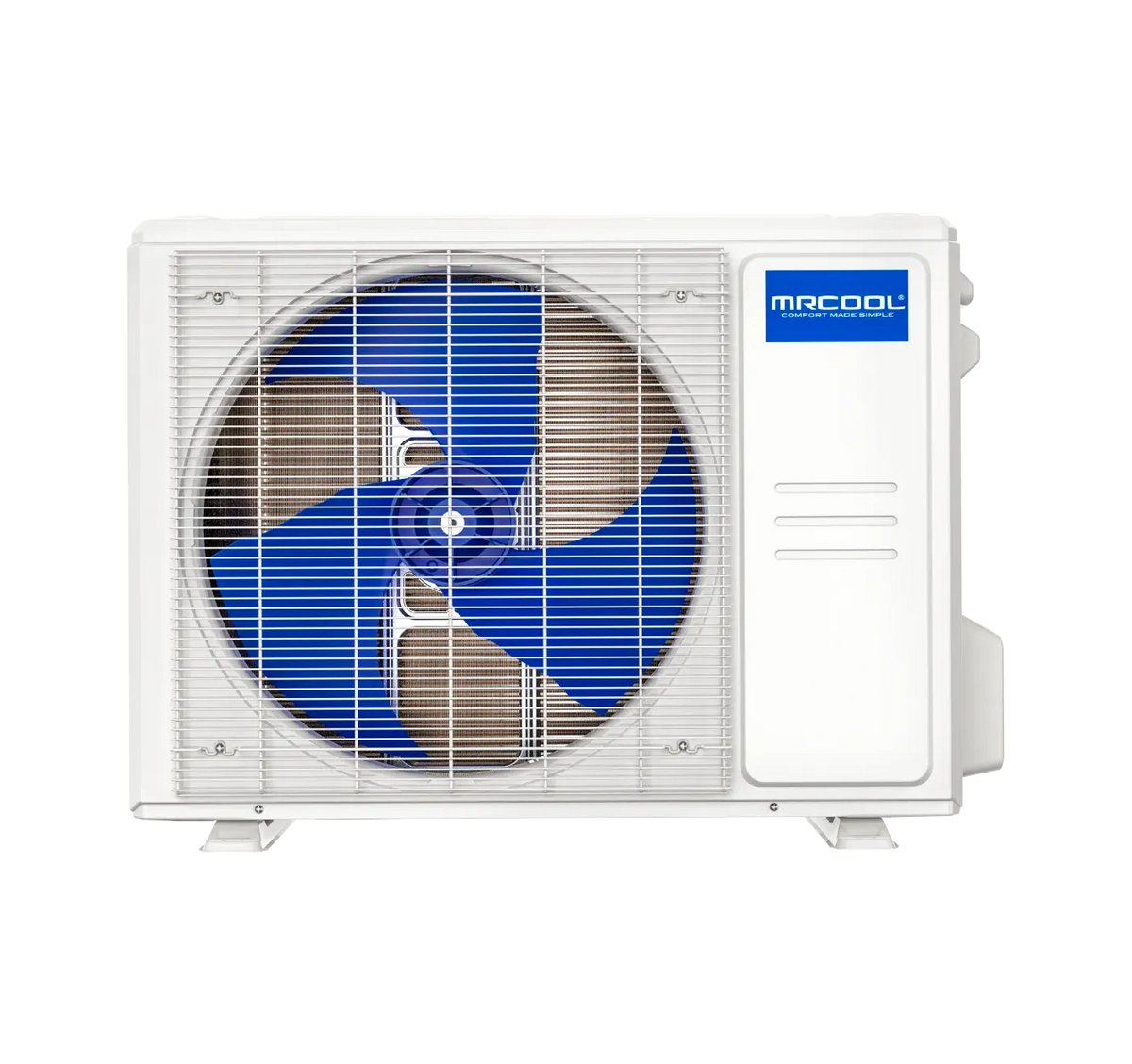

- ✅ 18,000 BTU outdoor condenser

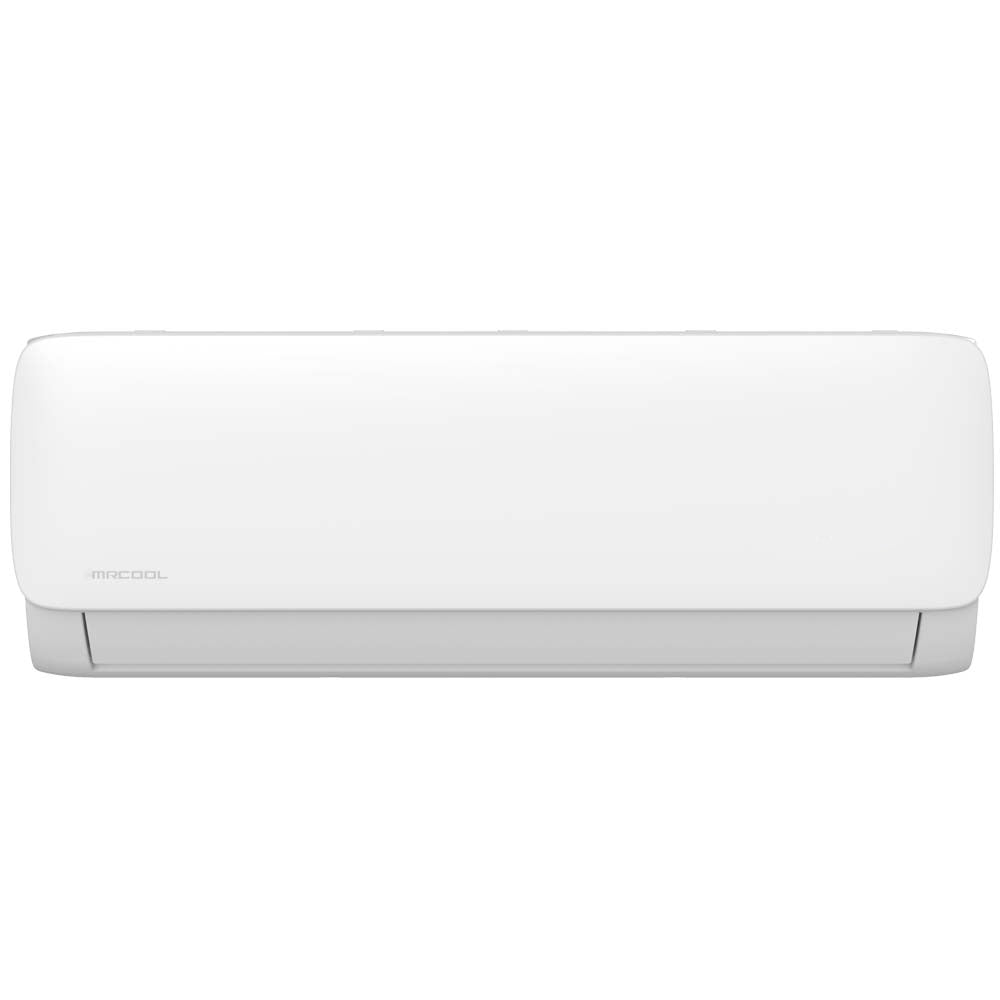

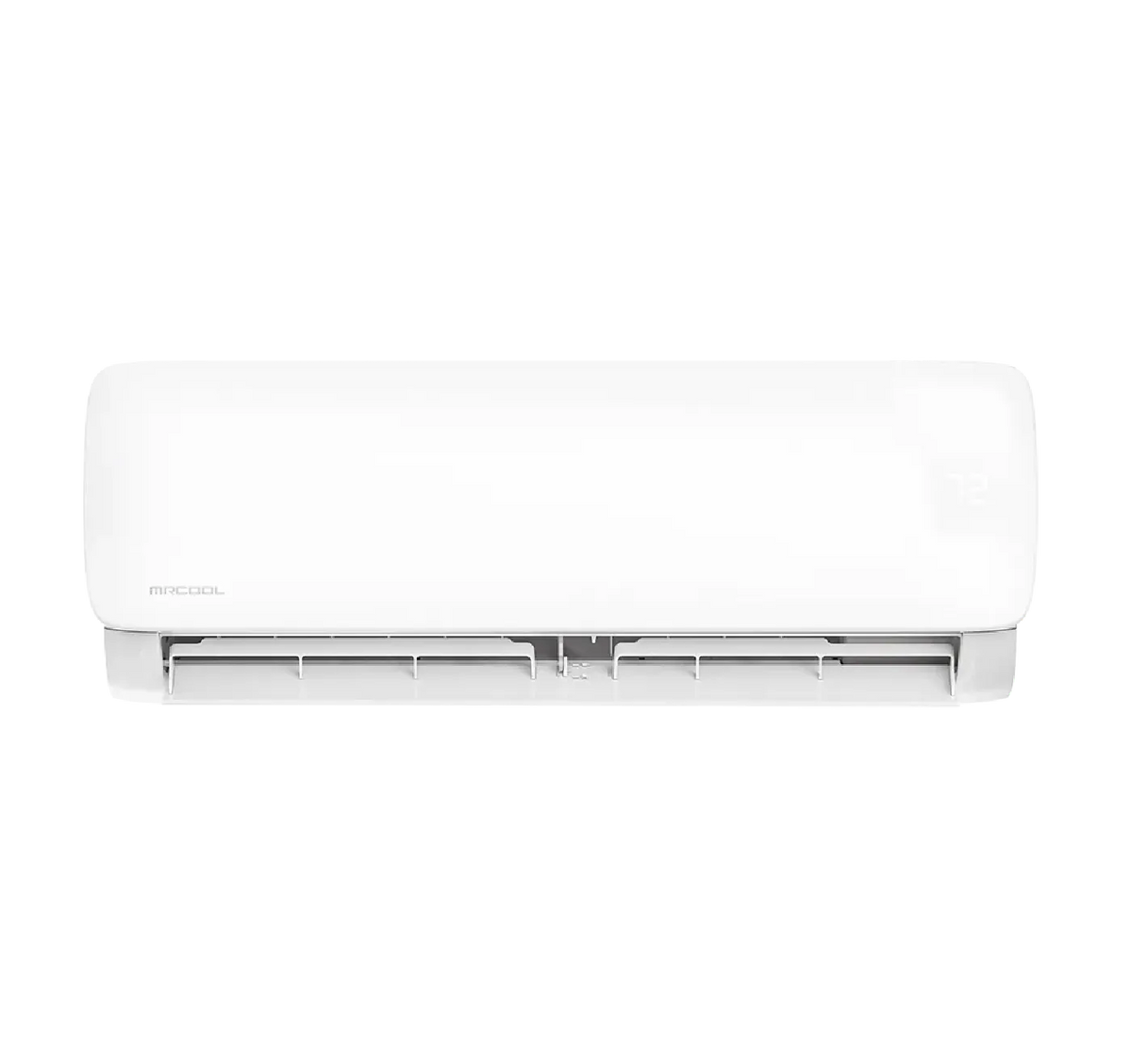

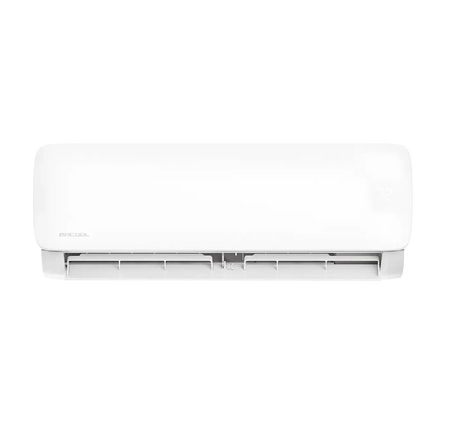

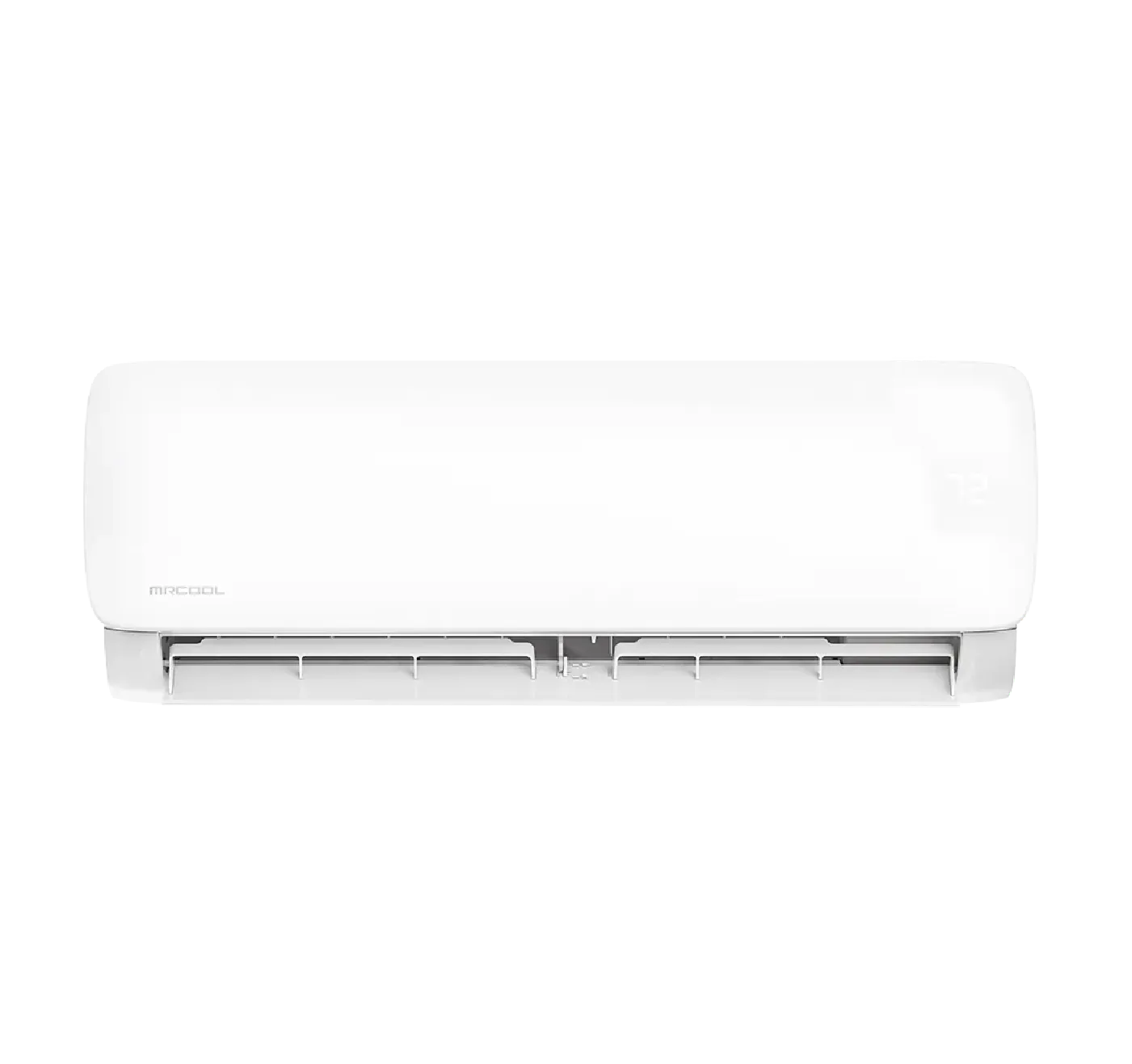

- ✅ Indoor wall-mount air handler

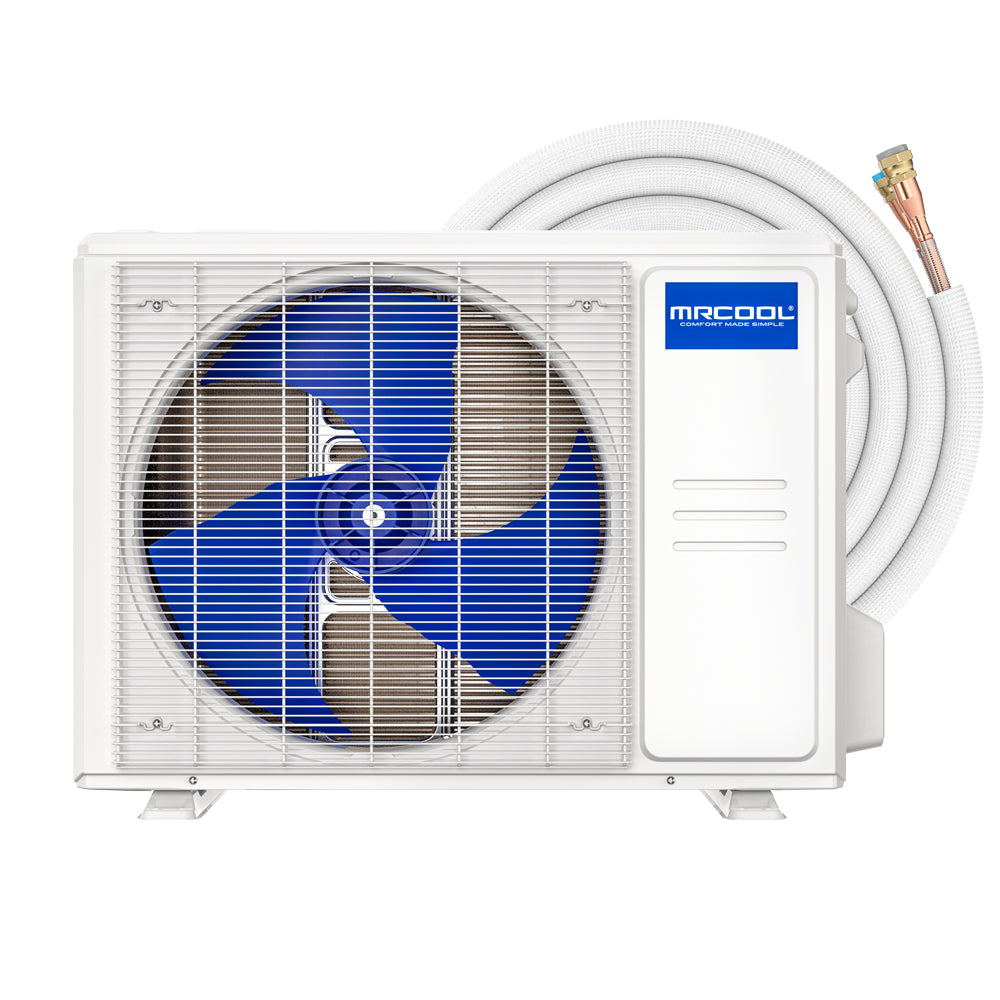

- ✅ 11.5 ft. pre-charged QuickConnect® line set (1/4" x 1/2", R-454B)
- ✅ Communication cable
- ✅ Remote control
Specifications & Dimensions
| Capacity & Performance | |
|---|---|
| Cooling Capacity | 17,000 BTU |
| Heating Capacity | 18,000 BTU |
| Coverage Area | Up to 800 sq. ft. |
| SEER2 | 20.0 |
| EER2 | 9.8 |
| HSPF2-4 | 8.5 |
| HSPF2-5 | 6.6 |
| Cooling Range | 5°F to 122°F outdoor |
| Heating Range | -13°F to 75°F outdoor |
| Indoor Noise (Hi/Mi/Lo) | 46.5 / 36 / 18.5 dB(A) |
| Outdoor Noise Level | 55 dB(A) |
| Electrical Requirements | |
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 15A |
| Refrigerant & Piping | |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 34.92 oz |
| Liquid Line Size | 1/4" |
| Suction Line Size | 1/2" |
| Dimensions & Weight | |
| Condenser Dimensions | 30.12" W x 11.93" D x 21.85" H |
| Condenser Weight | 62.61 lbs |
| Air Handler Dimensions | 38.23" W x 8.98" D x 12.64" H |
| Air Handler Weight | 30.64 lbs |
| Features | |
| Inverter | DC |
| WiFi Compatibility | Yes |
| App Compatibility | Yes |
| Works with iOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| Certifications & Warranty | |
| Parts Warranty | 3 Years |
| Compressor Warranty | 5 Years |
Shipping & Returns
🚚 Free Curbside Delivery
All MRCOOL orders ship free via FedEx Ground, FedEx Freight, or an equivalent trusted carrier. Delivery is curbside only — please arrange assistance in advance as carriers are not able to bring items inside your home.
Tracking & Delivery
Tracking information is typically provided within 3–5 business days of your order. Once received, please allow 1–2 business days for tracking details to update.
↩️ Return Policy
30-Day Return Window
Returns must be requested within 30 days of your delivery date. We are unable to accept return requests after this period.
Return Conditions
To qualify for a return, items must be unused and uninstalled, and in original packaging including box and pallet.
Restocking Fee
A 35% restocking fee applies to all approved returns.
📄 View Full Shipping Policy | 📄 View Full Return & Refund Policy
Frequently Asked Questions
How does the EasyPro® compare to the DIY Select and DIY 5th Gen?
The EasyPro® sits between the two. It has a higher SEER2 (20.0) and better warranty (5-yr compressor / 3-yr parts) than the DIY Select, but a shorter warranty and lower SEER2 than the premium DIY 5th Gen (which offers 7-yr compressor and Energy Star certification). It’s the best value for buyers who want more than entry-level without paying full premium price.
Does this unit require special wiring?
Yes — the EasyPro® 18K runs on 208-230V and requires a dedicated 230V circuit. A licensed electrician is recommended for the electrical hookup.
What suction line size does this unit use?
This unit uses a 1/2" suction line. The included 11.5 ft. line set is pre-sized for this unit. If you need a longer run, make sure any additional line set uses 1/2" suction.
What is the minimum cooling temperature?
The EasyPro® 18K cools down to 5°F outdoor temperature. For heating, it operates down to -13°F. If you need cooling in extreme cold climates, consider the DIY 5th Gen or Hyper Heat instead.
Is it Wi-Fi compatible?
Yes. Control your system from anywhere using the MRCOOL Smart HVAC Controller® app on iOS or Android. It also works with Amazon Alexa and Google Assistant for hands-free voice control.
What is the warranty?
The EasyPro® is backed by:
- 5-Year Compressor Warranty
- 3-Year Parts Warranty
Recommended BTU By Room Size
| BTU Capacity | Recommended Room Size (Sq. Ft.) |
|---|---|
| 9,000 BTU | Up to 400 sq. ft. |
| 12,000 BTU | Up to 550 sq. ft. |
| 18,000 BTU ← You Are Here | Up to 800 sq. ft. |
| 24,000 BTU | 751–1,000 sq. ft. |
| 36,000 BTU | 1,001–1,500 sq. ft. |
Note: Actual performance may vary depending on room insulation, ceiling height, number of windows, climate zone, and heat-generating appliances.
