MRCOOL DIY® 5th Gen EasyPro 24,000 BTU Mini-Split Condenser 230V – Single Zone, Up to 1,050 Sq. Ft. | DIY-24-HP-C-230D25-O
Couldn't load pickup availability
MRCOOL® DIY® 5th Gen EasyPro 24,000 BTU Mini-Split Condenser – Single Zone, 230V

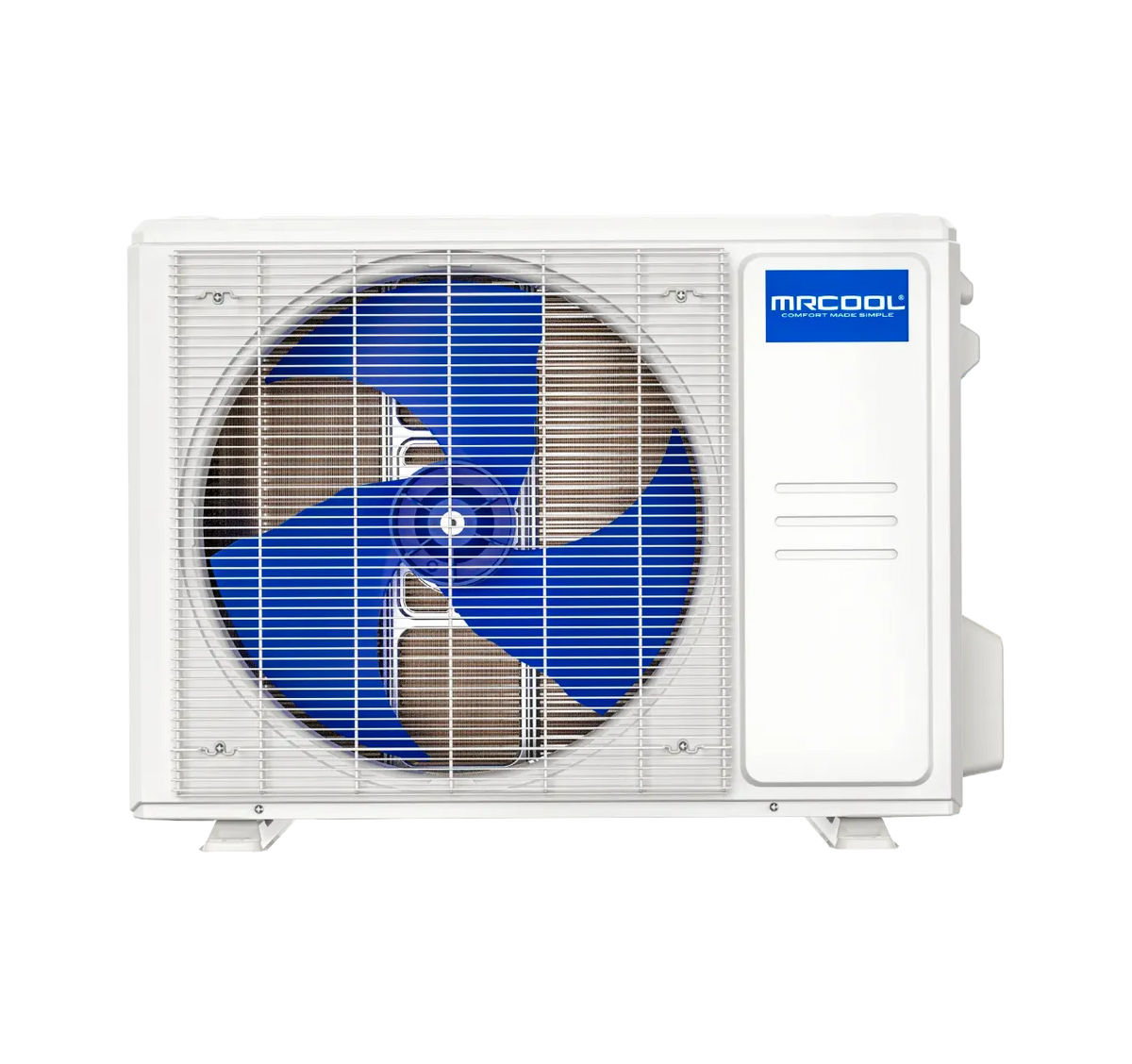

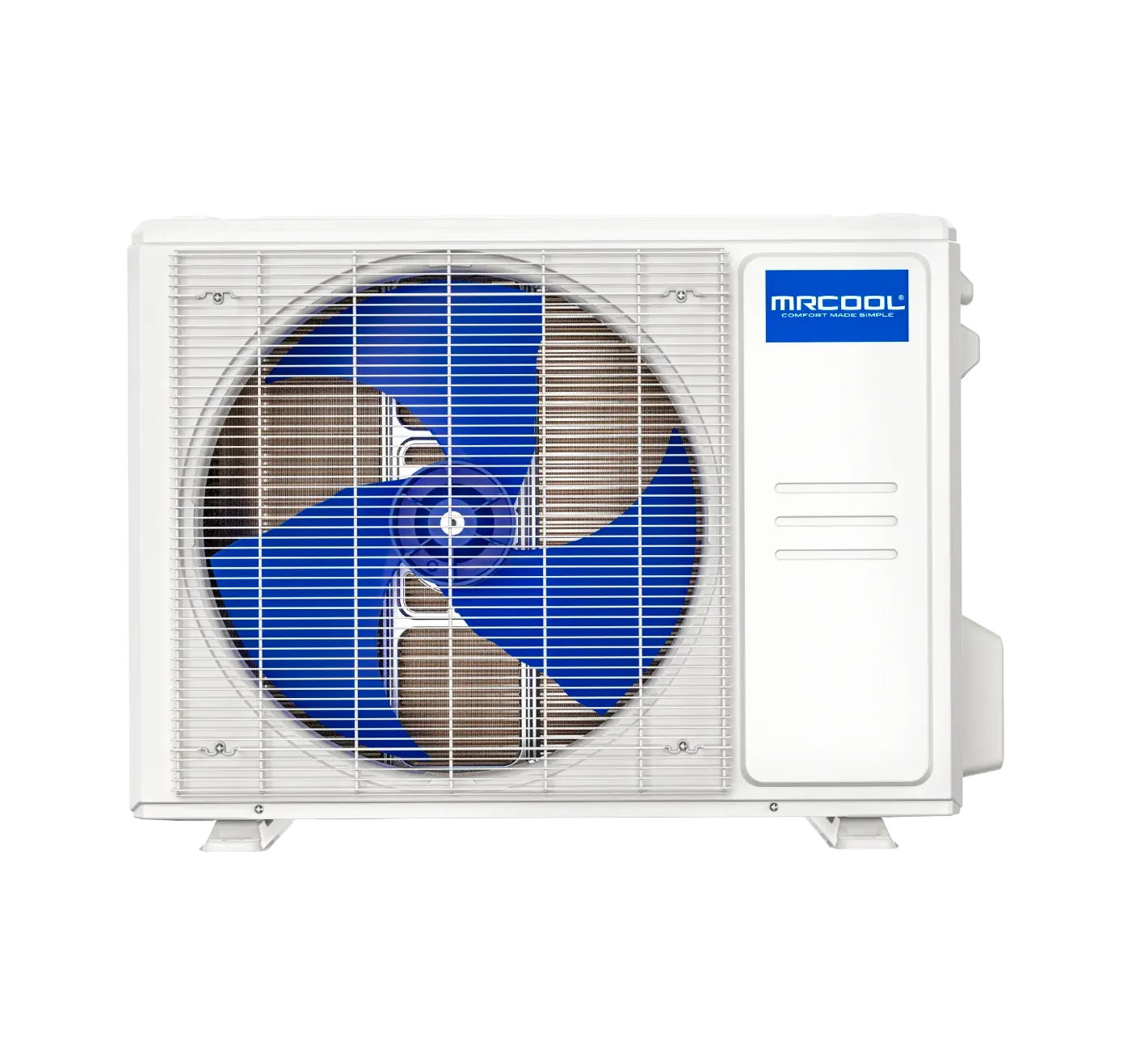

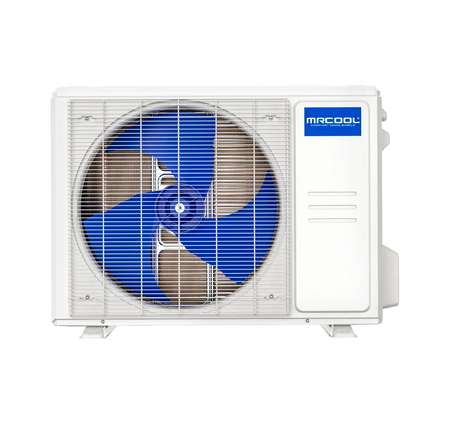

The MRCOOL® DIY® 5th Gen EasyPro 24,000 BTU Condenser is a powerful, energy-efficient outdoor unit designed for heating and cooling spaces up to 1,050 sq. ft. Pair it with a compatible MRCOOL air handler for a complete DIY mini split system — no HVAC license, vacuum pump, or professional tools required. With the included 16 ft. pre-charged Fast Connection® line set, installation is straightforward and fast.
Why Choose MRCOOL DIY® 5th Gen EasyPro?
- America’s #1 DIY Mini Split — The most trusted DIY mini split brand in the nation, built for quick setup and long-term reliability.
- DIY Fast Connection® Line Set — Comes pre-charged with eco-friendly R-454B refrigerant — no vacuum pump or special tools needed.
- Eco-Friendly R-454B Refrigerant — Lower Global Warming Potential (GWP) than R-410A for better efficiency and a reduced environmental footprint.
- Smart Connectivity — Built-in WiFi control via the MRCOOL SmartHVAC app (iOS & Android), with Amazon Alexa and Google Assistant support.
- Low Ambient Cooling — Operates in cooling mode down to 5°F — ideal for server rooms, greenhouses, and garages.
- Auto Restart — Automatically restores your settings after a power outage.
- Gold Fin® Condenser Coating — Superior corrosion resistance, ideal for coastal homes and harsh climates.
- Quiet Operation — Runs at just 61 dB(A) outdoors for minimal disruption.
- Certified Excellence — UL Listed, CSA Listed, ETL Listed, AHRI Certified.
Product Overview
- 🏠 Zones: 1
- 📐 Coverage: Up to 1,050 sq. ft.
- 🔧 Installation: DIY — No Professional Required
- ⚡ Voltage: 208-230V
- ⭐ Certification: UL Listed, CSA Listed, ETL Listed, AHRI Certified
- 🧄 Refrigerant: R-454B
What’s in the Box

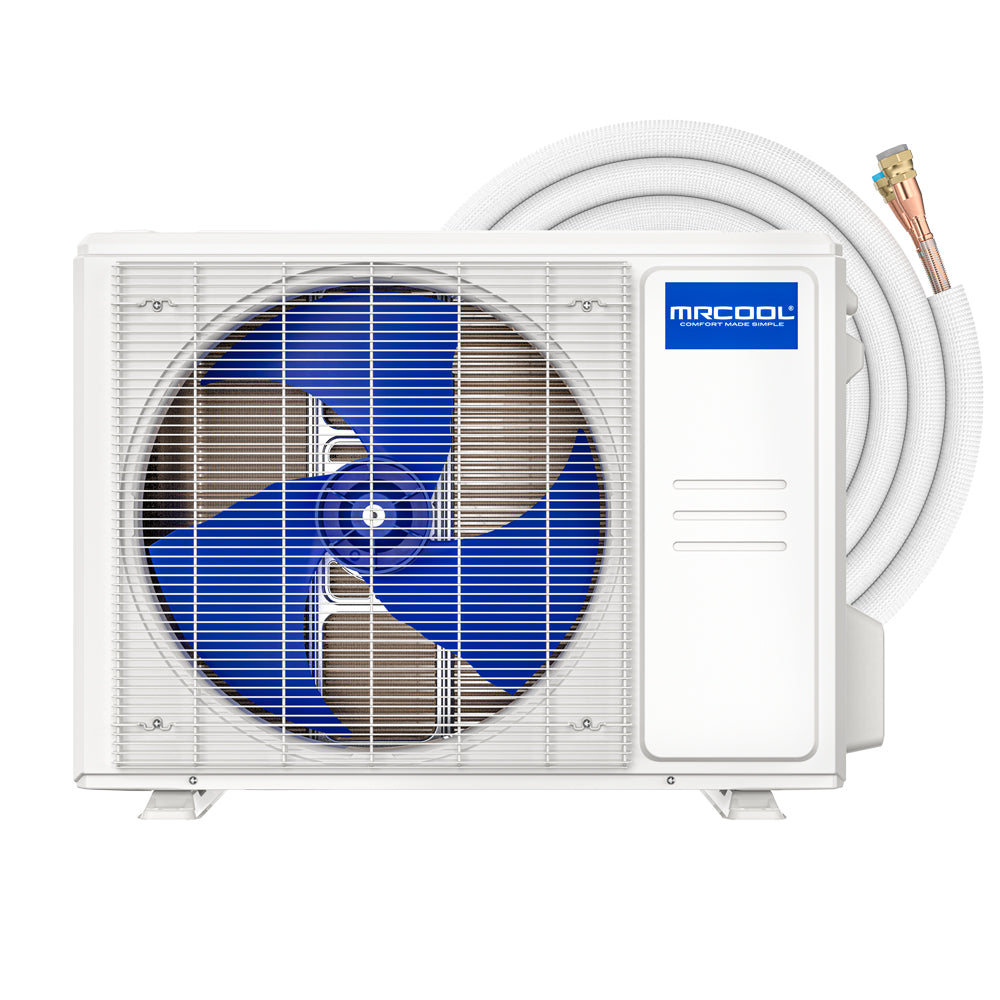

- ✅ 24,000 BTU outdoor condenser
- ✅ 16 ft. pre-charged Fast Connection® line set
- ✅ DIYPRO® cable
Specifications & Dimensions
| Capacity & Performance | |
|---|---|
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 25,000 BTU |
| Coverage Area | Up to 1,050 sq. ft. |
| SEER2 | 18.9 |
| EER2 | 9.7 |
| HSPF2-4 | 8.7 |
| HSPF2-5 | 6.9 |
| Cooling Range | -13°F to 122°F outdoor |
| Heating Range | -13°F to 75°F outdoor |
| Outdoor Noise Level | 61 dB(A) |
| Electrical Requirements | |
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 19A |
| Refrigerant & Piping | |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 50.44 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 5/8" |
| Max Line Set Length | 164 ft. |
| Dimensions & Weight | |
| Dimensions | 35.04" W x 13.46" D x 26.5" H |
| Weight | 95.9 lbs |
| Features | |
| Inverter | DC |
| Compressor Type | Rotary |
| WiFi Compatibility | Yes |
| App Compatibility | Yes |
| Works with iOS | Yes |
| Works with Android | Yes |
| Auto Restart | Yes |
| Low Ambient Cooling | Yes (down to 5°F) |
| Certifications & Warranty | |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Parts Warranty | 2 Years |
| Compressor Warranty | 1 Year |
Shipping & Returns
🚚 Free Curbside Delivery
All MRCOOL orders ship free via FedEx Ground, FedEx Freight, or an equivalent trusted carrier. Delivery is curbside only — please arrange assistance in advance as carriers are not able to bring items inside your home.
Tracking & Delivery
Tracking information is typically provided within 3–5 business days of your order. Once received, please allow 1–2 business days for tracking details to update.
↩️ Return Policy
30-Day Return Window
Returns must be requested within 30 days of your delivery date. We are unable to accept return requests after this period.
Return Conditions
To qualify for a return, items must be unused and uninstalled, and in original packaging including box and pallet.
Restocking Fee
A 35% restocking fee applies to all approved returns.
📄 View Full Shipping Policy | 📄 View Full Return & Refund Policy
Frequently Asked Questions
What air handler is compatible with this condenser?
This condenser is compatible with MRCOOL DIY® 5th Gen EasyPro 24,000 BTU air handlers. Make sure to match the BTU capacity and voltage when pairing components.
Can I install it myself, or do I need a professional?
Yes — that’s the beauty of the MRCOOL DIY® system. The included 16 ft. pre-charged Fast Connection® line set means no vacuum pump or HVAC certification is needed. The only professional you’ll need is a licensed electrician for the electrical hookup.
Does it work in cold weather?
Absolutely. This unit heats reliably down to -13°F and cools down to 5°F — making it suitable for year-round use in virtually any climate.
What is the maximum line set length?
The maximum line set length is 164 ft., giving you flexibility in how far the condenser can be placed from the air handler.
What is the warranty?
This condenser is covered by MRCOOL’s warranty upon registration:
- 2-Year Parts Warranty
- 1-Year Compressor Warranty
Recommended BTU By Room Size
| BTU Capacity | Recommended Room Size (Sq. Ft.) |
|---|---|
| 6,000 BTU | Up to 150 sq. ft. |
| 9,000 BTU | 151–350 sq. ft. |
| 12,000 BTU | 351–500 sq. ft. |
| 18,000 BTU | 501–750 sq. ft. |
| 24,000 BTU ← You Are Here | 751–1,050 sq. ft. |
| 36,000 BTU | 1,001–1,500 sq. ft. |
Note: Actual performance may vary depending on room insulation, ceiling height, number of windows, climate zone, and heat-generating appliances.
