MRCOOL DIY® 5th Gen Hyper Heat 12,000 BTU Mini-Split Complete System 230V – Single Zone, 350–500 Sq. Ft. | DIYHH-12-HP-WM-230D25
Couldn't load pickup availability
MRCOOL® DIY® 5th Gen Hyper Heat 12,000 BTU Mini-Split Complete System – Single Zone, 230V
The MRCOOL® DIY® 5th Gen Hyper Heat 12,000 BTU Complete System is MRCOOL’s premium cold-climate mini split for spaces from 350 to 500 sq. ft. With heating down to -22°F, a 23.5 SEER2 rating, and 10.0 HSPF2-4, this Energy Star certified system delivers reliable comfort in the harshest winters. Includes the Hyper Heat condenser, wall-mount air handler, and a 25 ft. pre-charged QuickConnect® line set — no vacuum pumps, no HVAC license required.
Why Choose MRCOOL DIY® 5th Gen Hyper Heat?
- Heating to -22°F — Reliable warmth even in the harshest northern winters — the most extreme cold-climate heating in the MRCOOL DIY lineup.
- 23.5 SEER2 — Premium Cooling Efficiency — The highest SEER2 rating in the Hyper Heat lineup for maximum energy savings.
- 10.0 HSPF2-4 — Excellent Heating Efficiency — Outstanding heating performance for cold-climate applications.
- Energy Star Certified — May qualify for federal tax credits and utility rebates.
- America’s #1 DIY Mini Split — The most trusted DIY mini split brand in the nation, built for quick setup and long-term reliability.
- 25 ft. QuickConnect® Line Set Included — Pre-charged with R-454B refrigerant for a fast, vacuum-free installation — no special tools needed.
- DIYPRO® Armored Cable — Eliminates the need for electrical conduit. Built tough to withstand outdoor elements, weather, and wildlife.
- Follow Me® Function — Airflow automatically adjusts based on the remote’s location for consistent, even temperature throughout the room.
- Gold Fin® Coil Protection — Superior corrosion resistance, ideal for coastal homes and harsh climates.
- Smart Connectivity — Control via the SmartHVAC app (iOS & Android), or hands-free with Amazon Alexa or Google Assistant.
- Best-in-Class Warranty — 7-year compressor warranty + 5-year parts warranty.
- Certified Excellence — Energy Star Certified, UL Listed, CSA Certified, ETL Certified, AHRI Certified.

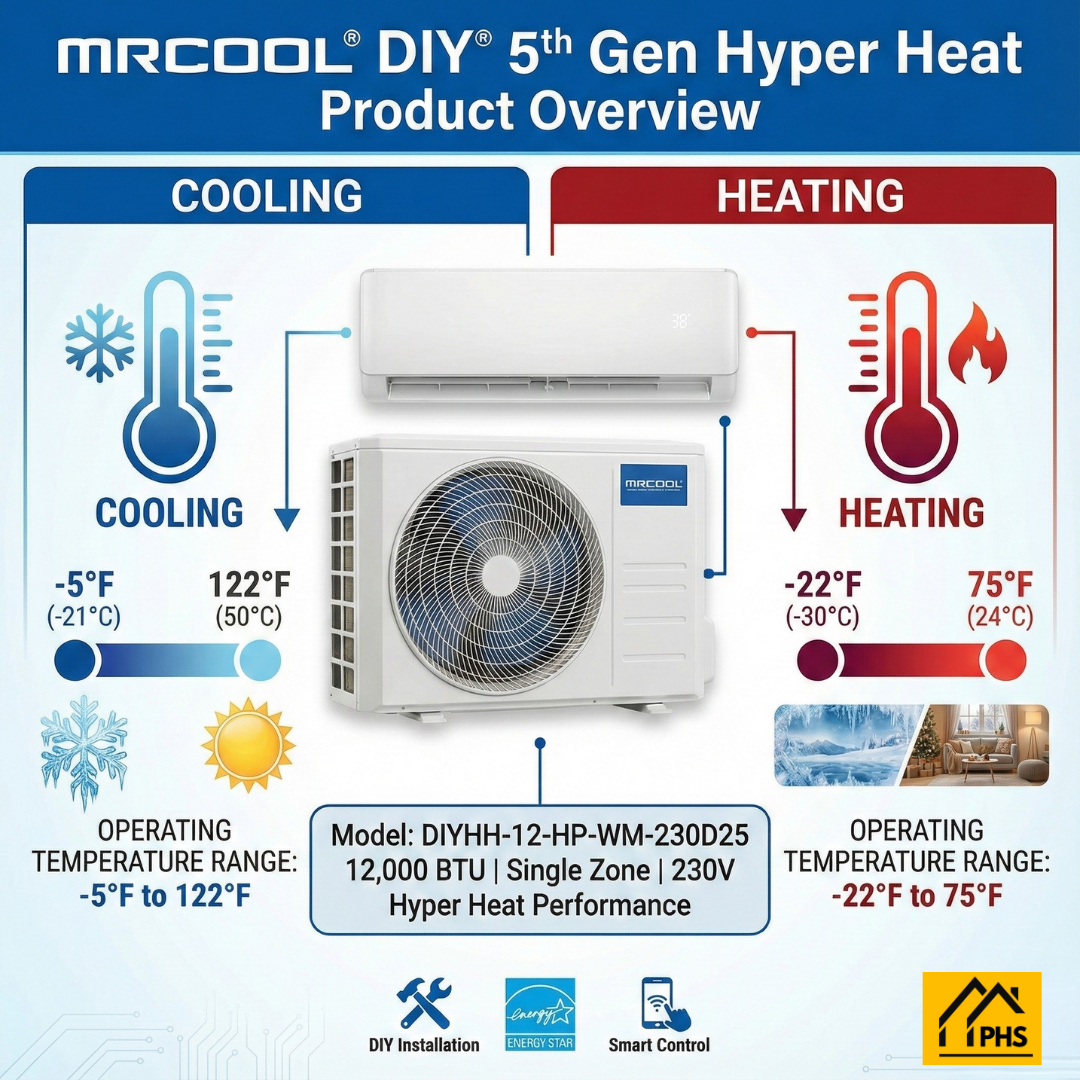

Product Overview
- 🏠 Zones: 1
- 📐 Coverage: 350–500 sq. ft.
- ❄️ Cold Climate Heating: Down to -22°F outdoor
- 🔧 Installation: DIY — No Professional Required
- ⚡ Voltage: 208-230V
- 🌿 Energy Star Certified — May qualify for federal tax credits & utility rebates
- ⭐ Certification: Energy Star, UL Listed, CSA Certified, ETL Certified, AHRI Certified
- 🧄 Refrigerant: R-454B

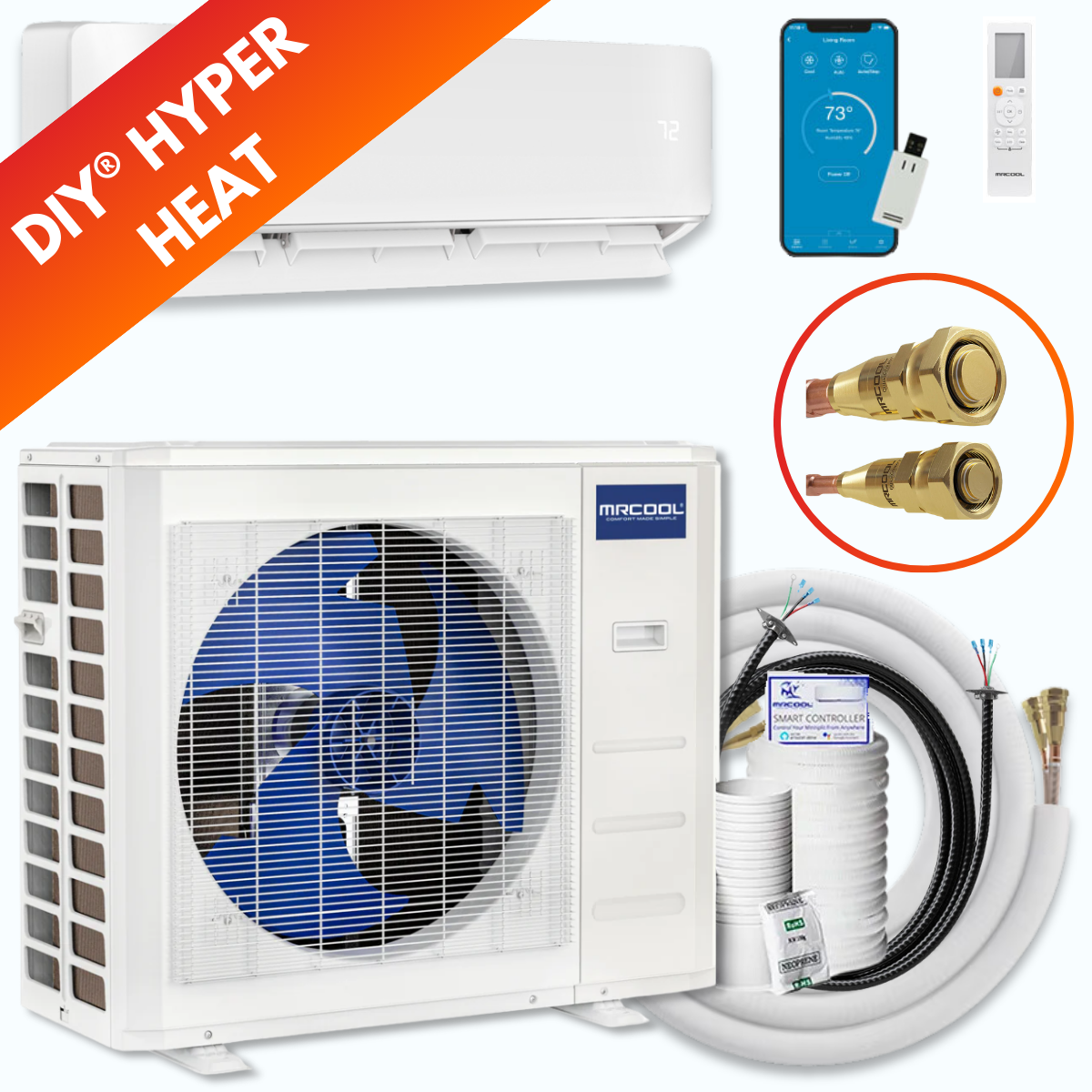

What’s in the Box

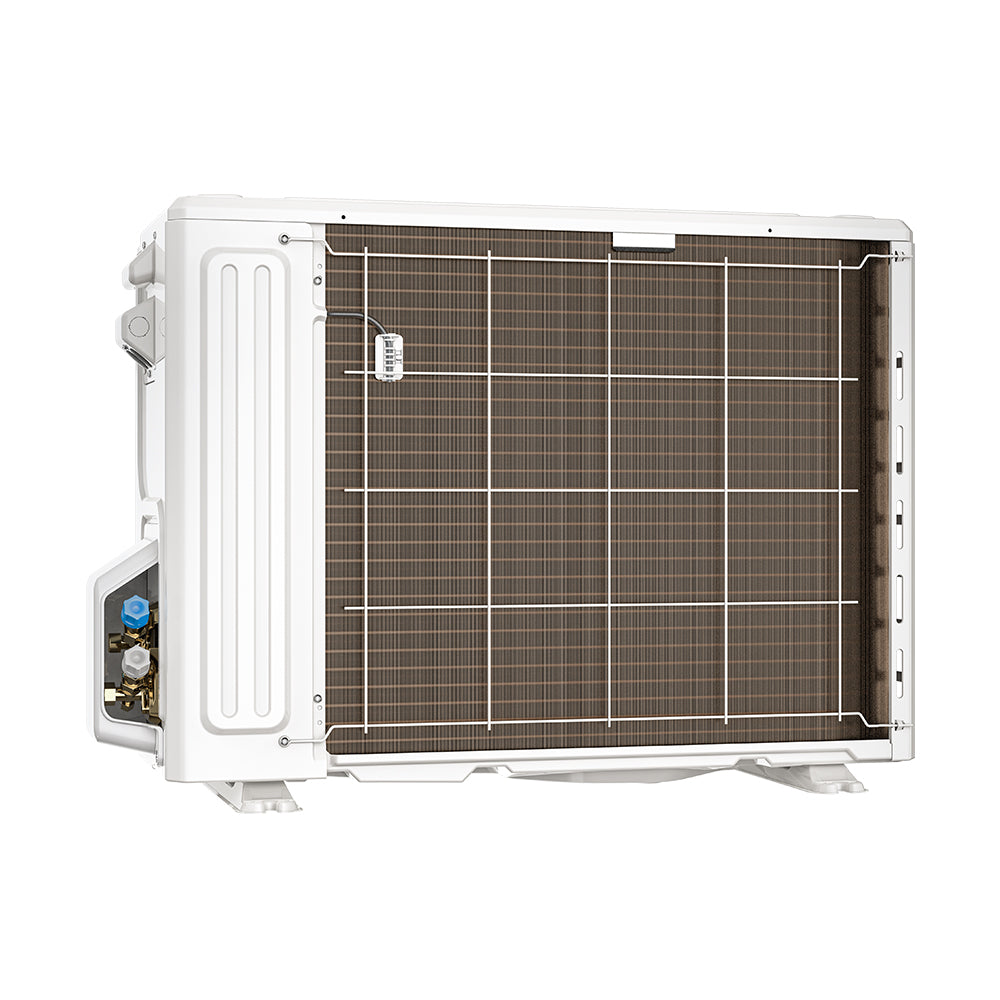

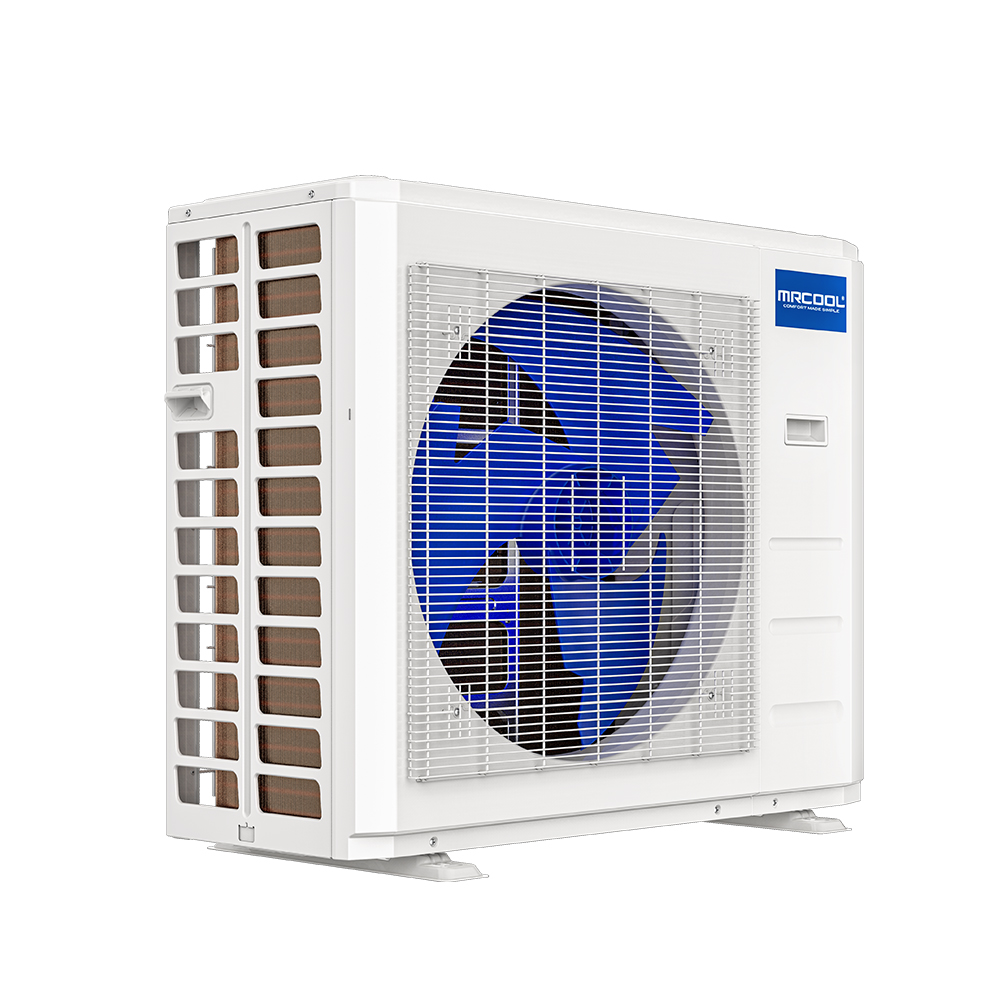

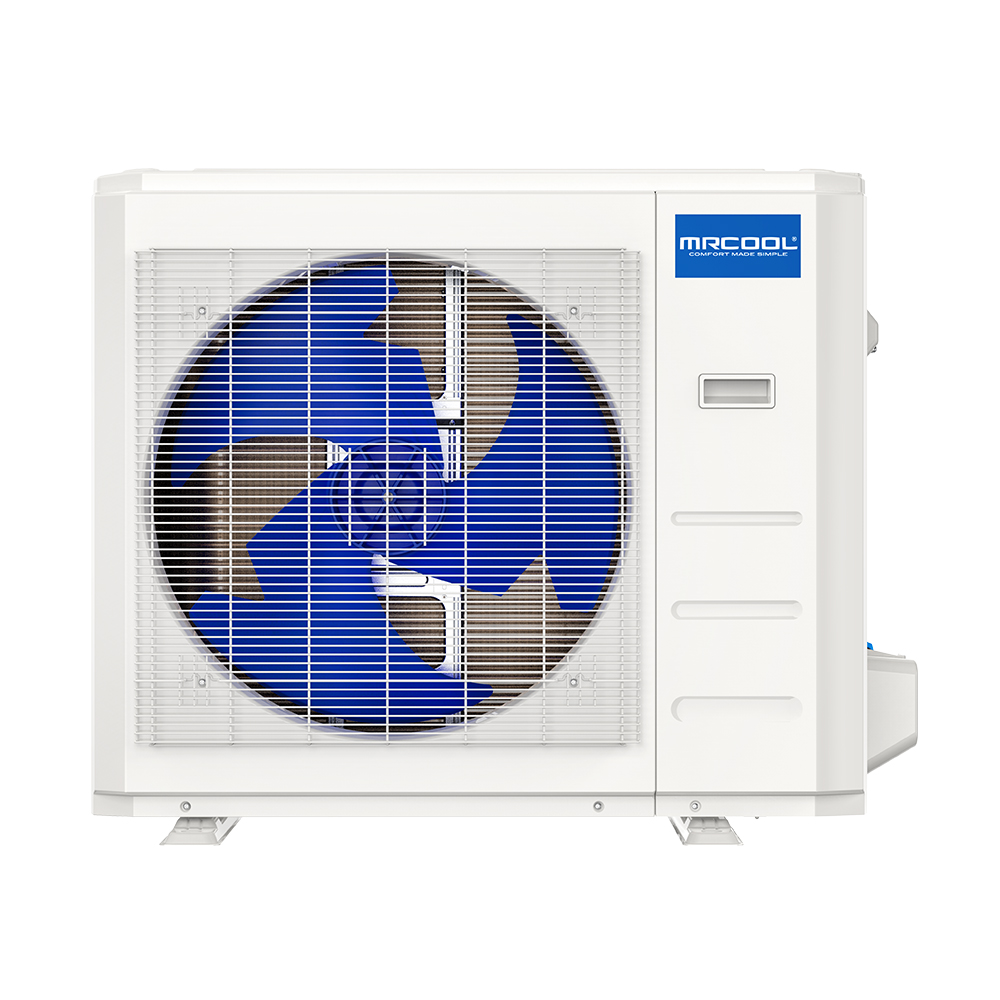

- ✅ 12,000 BTU Hyper Heat outdoor condenser

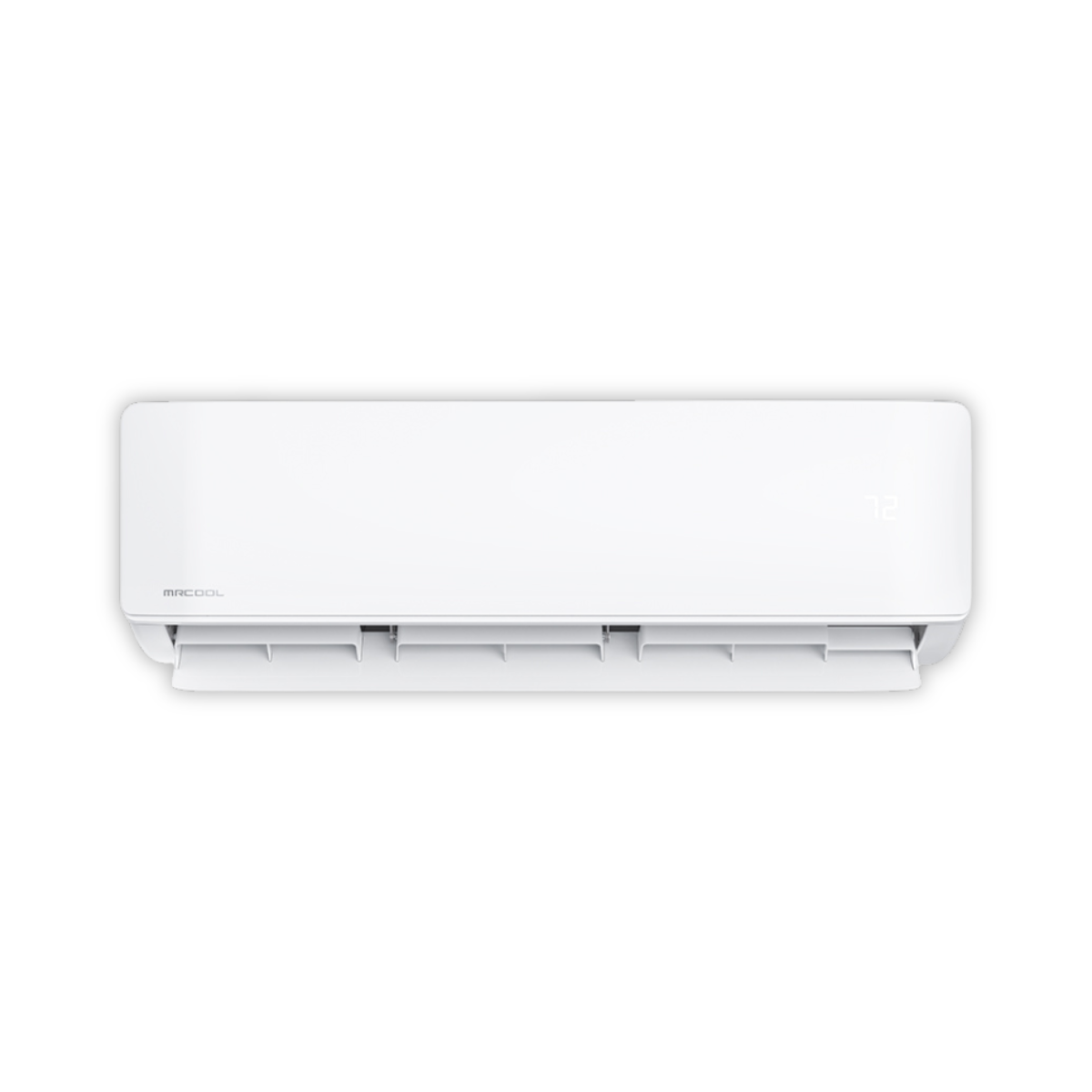

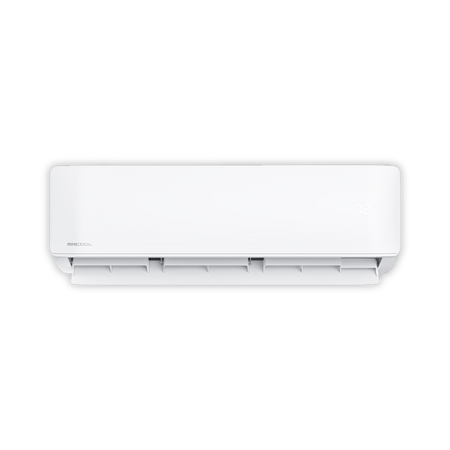

- ✅ Indoor wall-mount air handler
- ✅ 25 ft. pre-charged QuickConnect® line set (1/4" x 3/8", R-454B)
- ✅ DIYPRO® armored cable
- ✅ Remote control
Specifications & Dimensions
| Capacity & Performance | |
|---|---|
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Coverage Area | 350–500 sq. ft. |
| SEER2 | 23.5 |
| EER2 | 12.8 |
| HSPF2-4 | 10.0 |
| HSPF2-5 | 8.0 |
| Cooling Range | -5°F to 122°F outdoor |
| Heating Range | -22°F to 75°F outdoor |
| Outdoor Noise Level | 56.5 dB(A) |
| Electrical Requirements | |
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 15A |
| Refrigerant & Piping | |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 32.1 oz |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Max Line Set Length | 75 ft. |
| Dimensions & Weight | |
| Condenser Dimensions | 31.69" W x 12.99" D x 21.81" H |
| Condenser Weight | 72.31 lbs |
| Air Handler Dimensions | 31.57" W x 7.44" D x 11.63" H |
| Air Handler Weight | 24.47 lbs |
| Features | |
| Inverter | Yes |
| Compressor Motor Type | Rotary |
| Auto Mode | Yes |
| WiFi Compatibility | Yes |
| App Compatibility | Yes |
| Works with iOS | Yes |
| Works with Android | Yes |
| Certifications & Warranty | |
| Certifications | Energy Star Certified, UL Listed, CSA Certified, ETL Certified, AHRI Certified |
| Parts Warranty | 5 Years |
| Compressor Warranty | 7 Years |
Shipping & Returns
🚚 Free Curbside Delivery
All MRCOOL orders ship free via FedEx Ground, FedEx Freight, or an equivalent trusted carrier. Delivery is curbside only — please arrange assistance in advance as carriers are not able to bring items inside your home.
Tracking & Delivery
Tracking information is typically provided within 3–5 business days of your order. Once received, please allow 1–2 business days for tracking details to update.
↩️ Return Policy
30-Day Return Window
Returns must be requested within 30 days of your delivery date. We are unable to accept return requests after this period.
Return Conditions
To qualify for a return, items must be unused and uninstalled, and in original packaging including box and pallet.
Restocking Fee
A 35% restocking fee applies to all approved returns.
📄 View Full Shipping Policy | 📄 View Full Return & Refund Policy
Frequently Asked Questions
What makes the Hyper Heat different from the standard DIY 5th Gen?
The Hyper Heat is built for cold climates. It heats reliably down to -22°F (vs. -13°F on the standard 5th Gen) and has a higher HSPF2-4 of 10.0. Cooling also starts at -5°F (vs. -13°F on the standard 5th Gen). If you live in a northern climate with harsh winters, the Hyper Heat is the right choice.
Does this qualify for tax credits or rebates?
Yes — as an Energy Star certified system with a 23.5 SEER2 and 10.0 HSPF2-4, this unit may qualify for the federal Residential Clean Energy Credit or utility rebate programs. Check with your local utility provider and a tax professional for eligibility.
Can I install it myself?
Yes. The included 25 ft. pre-charged QuickConnect® line set makes installation vacuum-free. The only professional you’ll need is a licensed electrician for the 230V electrical hookup.
Is the condenser in stock?
The Hyper Heat 12K condenser is currently on backorder. Please contact us for estimated availability before placing your order.
What is the warranty?
This system is backed by MRCOOL’s best-in-class warranty:
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
Recommended BTU By Room Size
| BTU Capacity | Recommended Room Size (Sq. Ft.) |
|---|---|
| 9,000 BTU | 151–350 sq. ft. |
| 12,000 BTU ← You Are Here | 350–500 sq. ft. |
| 18,000 BTU | 500–750 sq. ft. |
| 24,000 BTU | 751–1,000 sq. ft. |
| 36,000 BTU | 1,001–1,500 sq. ft. |
Note: Actual performance may vary depending on room insulation, ceiling height, number of windows, climate zone, and heat-generating appliances.
