MRCOOL DIY® 5th Gen Hyper Heat 18,000 BTU OuttaSight® Ceiling Cassette Mini-Split Complete System 230V – Single Zone, 500–800 Sq. Ft. | DIYHH-18-HP-CM-230D25

MRCOOL® DIY® 5th Gen Hyper Heat 18,000 BTU OuttaSight® Ceiling Cassette Mini-Split Complete System – Single Zone, 230V

The MRCOOL® DIY® 5th Gen Hyper Heat 18,000 BTU OuttaSight® Ceiling Cassette Complete System is the ultimate combination of cold-climate performance and discreet ceiling-mount installation — designed for spaces from 500 to 800 sq. ft. With heating down to -22°F, a 21.2 SEER2 rating, and 11.0 HSPF2-4, this Energy Star certified system delivers reliable comfort in the harshest winters — all with a flush-mounted cassette that disappears into your ceiling. Includes the Hyper Heat condenser, OuttaSight® ceiling cassette air handler, and a 25 ft. pre-charged QuickConnect® line set. Note: uses a 1/2" suction line.

Why Choose MRCOOL DIY® 5th Gen Hyper Heat OuttaSight®?

• Heating to -22°F — The most extreme cold-climate heating in the MRCOOL DIY lineup. Reliable warmth even in the harshest northern winters.

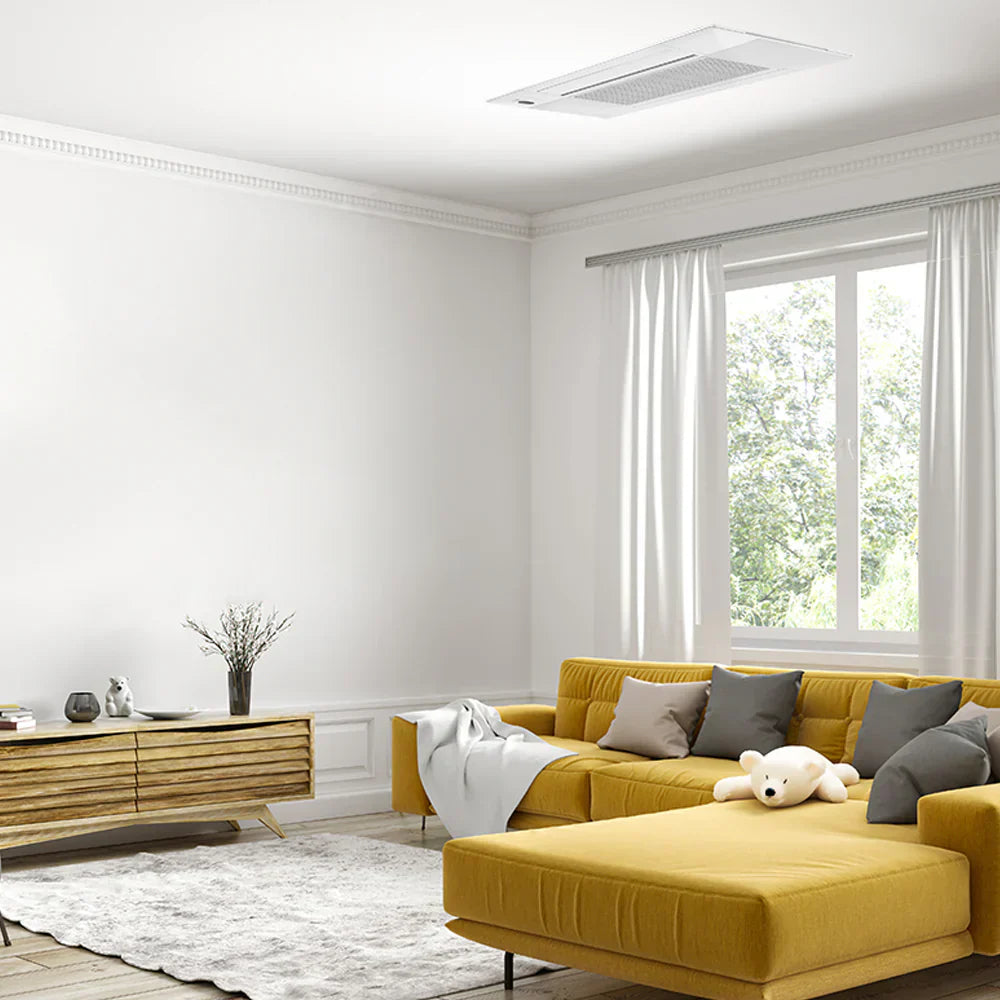

• Ceiling-Mounted, Out of Sight — Installs flush between standard 16" ceiling joists for a clean, unobtrusive look — no wall space required.
• 21.2 SEER2 & 11.0 HSPF2-4 — Premium efficiency ratings for maximum year-round energy savings.
• Energy Star Certified — May qualify for federal tax credits and utility rebates.
• America’s #1 DIY Mini Split — The most trusted DIY mini split brand in the nation, built for quick setup and long-term reliability.
• 25 ft. QuickConnect® Line Set Included — Pre-charged with R-454B refrigerant for a fast, vacuum-free installation — no special tools needed.
• DIYPRO® Armored Cable Included — Eliminates the need for electrical conduit. Built tough to withstand outdoor elements, weather, and wildlife.
• Advanced Filtration — Improves indoor air quality; Elevation function allows easy filter access for maintenance.
• Gold Fin® Coil Protection — Superior corrosion resistance, ideal for coastal homes and harsh climates.
• Smart Connectivity — Control via the SmartHVAC app (iOS & Android), or hands-free with Amazon Alexa or Google Assistant.
• Best-in-Class Warranty — 7-year compressor warranty + 5-year parts warranty.
• Certified Excellence — Energy Star Certified, UL Listed, CSA Certified, ETL Certified, AHRI Certified.

Product Overview

• 🏠 Zones: 1
• 📐 Coverage: 500–800 sq. ft.
• ❄️ Cold Climate Heating: Down to -22°F outdoor
• 💨 Air Handler Type: OuttaSight® Ceiling Cassette — 1-Way Airflow
• 🔧 Installation: DIY — No Professional Required
• ⚡ Voltage: 208-230V
• 🌿 Energy Star Certified — May qualify for federal tax credits & utility rebates
• ⭐ Certification: Energy Star, UL Listed, CSA Certified, ETL Certified, AHRI Certified
• 🧄 Refrigerant: R-454B
• ⚠️ Note: Uses 1/2" suction line — verify line set compatibility before ordering

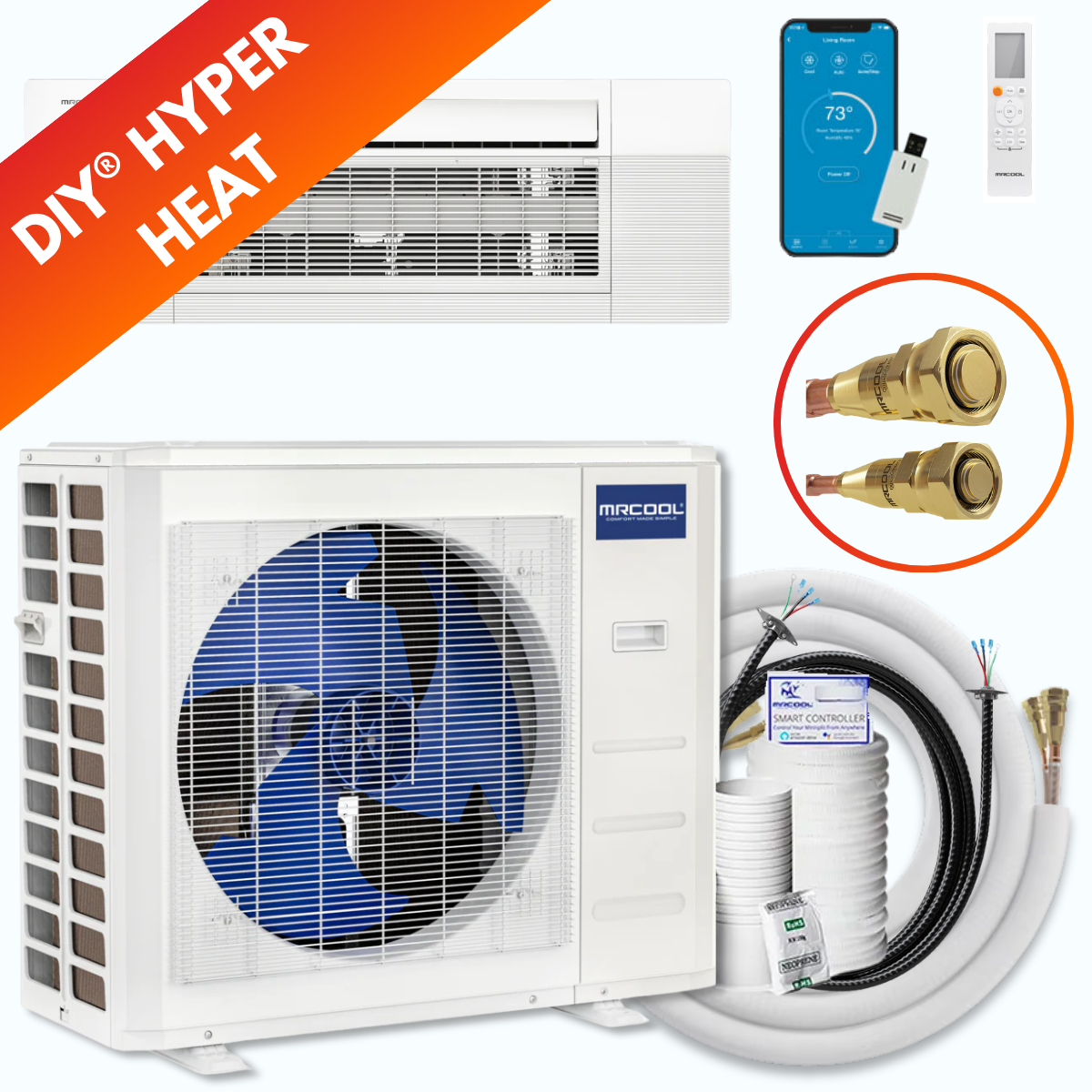

What’s in the Box

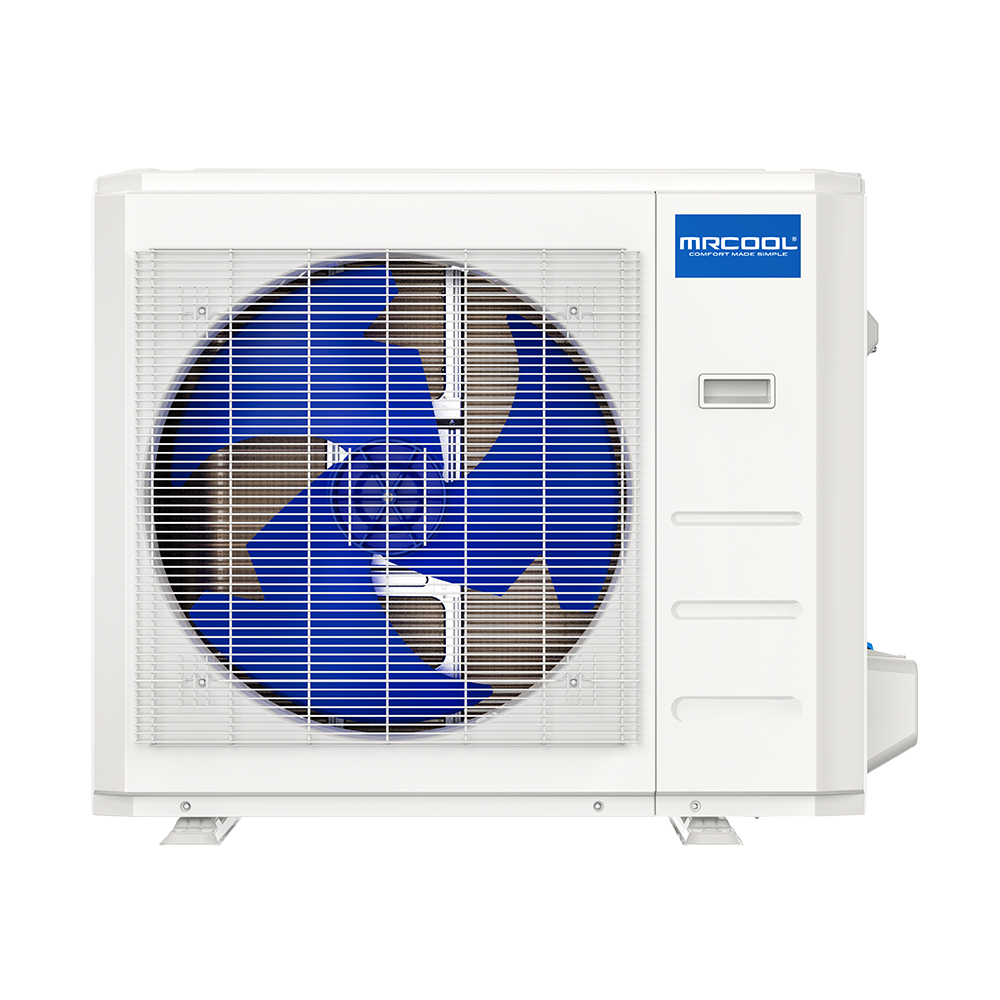

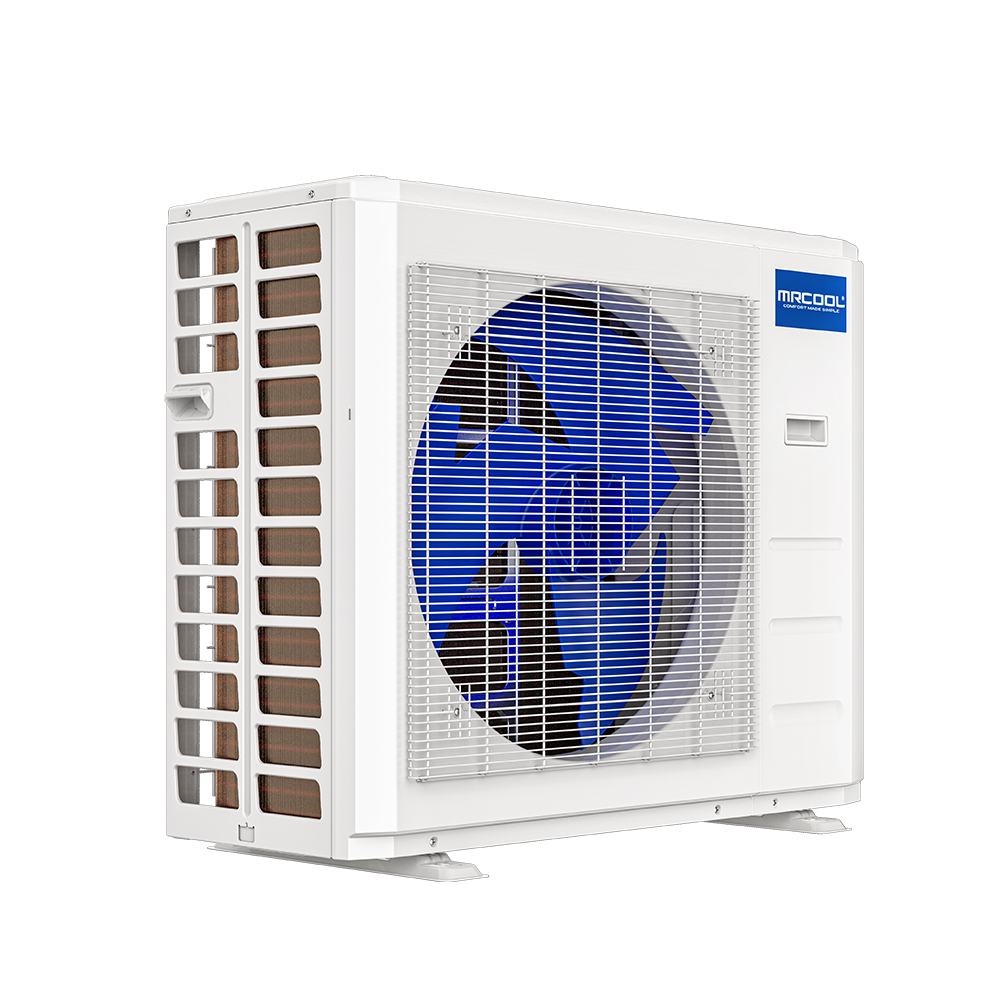

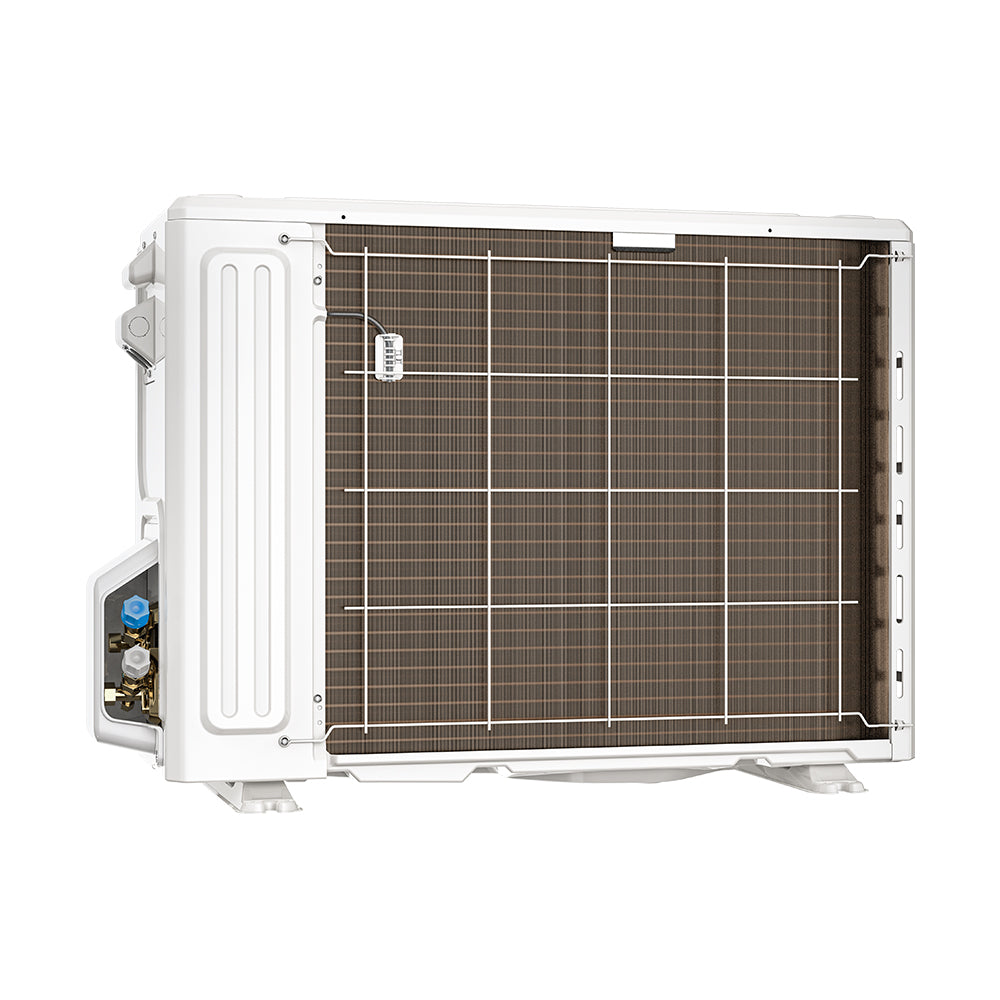

• ✅ 18,000 BTU Hyper Heat outdoor condenser
• ✅ OuttaSight® ceiling cassette air handler
• ✅ 25 ft. pre-charged QuickConnect® line set (1/4" x 1/2", R-454B)
• ✅ DIYPRO® armored cable
• ✅ Remote control

Specifications & Dimensions

Shipping & Returns

🚚 Free Curbside Delivery
All MRCOOL orders ship free via FedEx Ground, FedEx Freight, or an equivalent trusted carrier. Delivery is curbside only — please arrange assistance in advance as carriers are not able to bring items inside your home.

Tracking & Delivery
Tracking information is typically provided within 3–5 business days of your order. Once received, please allow 1–2 business days for tracking details to update.

↩️ Return Policy

30-Day Return Window
Returns must be requested within 30 days of your delivery date. We are unable to accept return requests after this period.

Return Conditions
To qualify for a return, items must be unused and uninstalled, and in original packaging including box and pallet.

Restocking Fee
A 35% restocking fee applies to all approved returns.

📄 View Full Shipping Policy | 📄 View Full Return & Refund Policy

Frequently Asked Questions

What’s the difference between this and the Hyper Heat 18K wall-mount system?
Same Hyper Heat condenser and performance specs — the only difference is the air handler. This system includes the OuttaSight® ceiling cassette (installs flush in the ceiling between 16" joists) instead of a wall-mount unit. Choose this if you want a concealed installation with no wall unit visible.

Does the ceiling cassette fit standard joists?
Yes — the OuttaSight® cassette fits between standard 16" ceiling joists, including pre-manufactured I-joists, for a flush, concealed installation.

What suction line size does this unit use?
This unit uses a 1/2" suction line. The included 25 ft. QuickConnect® line set is pre-sized for this unit. If you need a longer run (up to 75 ft. max), make sure any additional line set uses 1/2" suction.

Does this qualify for tax credits or rebates?
Yes — as an Energy Star certified system with a 21.2 SEER2 and 11.0 HSPF2-4, this unit may qualify for the federal Residential Clean Energy Credit or utility rebate programs. Check with your local utility provider and a tax professional for eligibility.

Can I install it myself?
Yes. The included 25 ft. pre-charged QuickConnect® line set makes installation vacuum-free. Ceiling installation may require basic carpentry skills. A licensed electrician is still recommended for the 230V electrical hookup.

What is the warranty?
This system is backed by MRCOOL’s best-in-class warranty:

• 7-Year Compressor Warranty
• 5-Year Parts Warranty

Recommended BTU By Room Size

Note: Actual performance may vary depending on room insulation, ceiling height, number of windows, climate zone, and heat-generating appliances.
