MRCOOL DIY® 5th Gen Hyper Heat 18,000 BTU Mini-Split Complete System 230V – Single Zone, 500–800 Sq. Ft. | DIYHH-18-HP-WM-230D25
Couldn't load pickup availability
MRCOOL® DIY® 5th Gen Hyper Heat 18,000 BTU Mini-Split Complete System – Single Zone, 230V
The MRCOOL® DIY® 5th Gen Hyper Heat 18,000 BTU Complete System is MRCOOL’s premium cold-climate mini split, engineered for heating and cooling spaces from 500 to 800 sq. ft. in even the harshest winters. With heating down to -22°F and a class-leading 11.0 HSPF2-4, this is the system for buyers who need reliable heat when temperatures drop well below zero. Includes the Hyper Heat condenser, wall-mount air handler, and a 25 ft. pre-charged QuickConnect® line set — no vacuum pumps, no HVAC license required.
Why Choose MRCOOL DIY® 5th Gen Hyper Heat?
- Heating to -22°F — The most extreme cold-climate heating in the MRCOOL DIY lineup. Reliable warmth even in the harshest northern winters.
- 11.0 HSPF2-4 — Highest Heating Efficiency — The best heating efficiency rating in the MRCOOL DIY 5th Gen lineup for maximum energy savings in cold climates.
- 21.2 SEER2 — Premium Cooling Efficiency — High-efficiency cooling with significant energy savings year over year.
- Energy Star Certified — May qualify for federal tax credits and utility rebates.
- America’s #1 DIY Mini Split — The most trusted DIY mini split brand in the nation, built for quick setup and long-term reliability.
- 25 ft. QuickConnect® Line Set Included — Pre-charged with R-454B refrigerant for a fast, vacuum-free installation — no special tools needed.
- DIYPRO® Armored Cable — Eliminates the need for electrical conduit. Built tough to withstand outdoor elements, weather, and wildlife.
- Follow Me® Function — Airflow automatically adjusts based on the remote’s location for consistent, even temperature throughout the room.
- Gold Fin® Coil Protection — Superior corrosion resistance, ideal for coastal homes and harsh climates.
- Smart Connectivity — Control via the SmartHVAC app (iOS & Android), or hands-free with Amazon Alexa or Google Assistant.
- Best-in-Class Warranty — 7-year compressor warranty + 5-year parts warranty.
- Certified Excellence — Energy Star Certified, UL Listed, CSA Certified, ETL Certified, AHRI Certified.

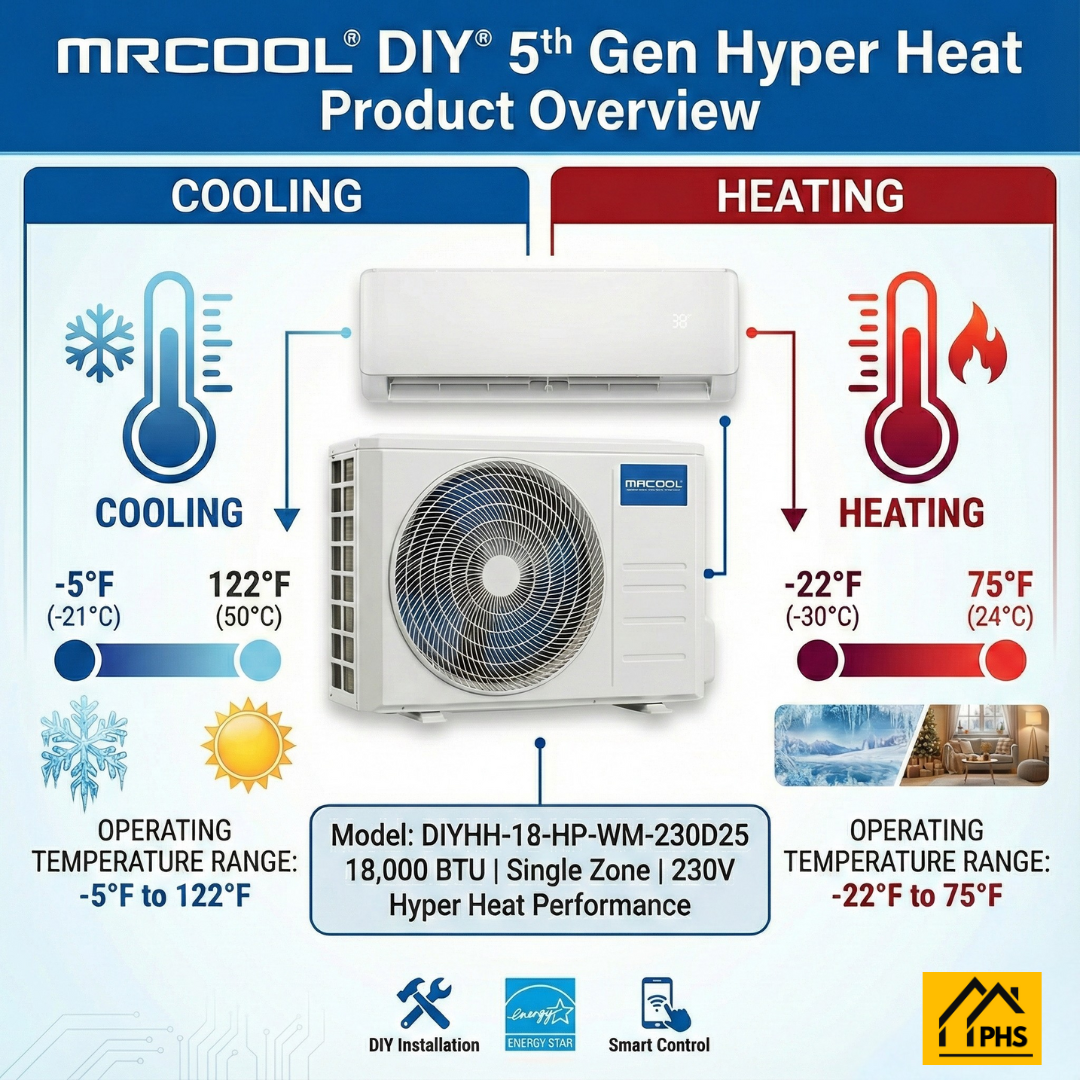

Product Overview
- 🏠 Zones: 1
- 📐 Coverage: 500–800 sq. ft.
- ❄️ Cold Climate Heating: Down to -22°F outdoor
- 🔧 Installation: DIY — No Professional Required
- ⚡ Voltage: 208-230V
- 🌿 Energy Star Certified — May qualify for federal tax credits & utility rebates
- ⭐ Certification: Energy Star, UL Listed, CSA Certified, ETL Certified, AHRI Certified
- 🧄 Refrigerant: R-454B

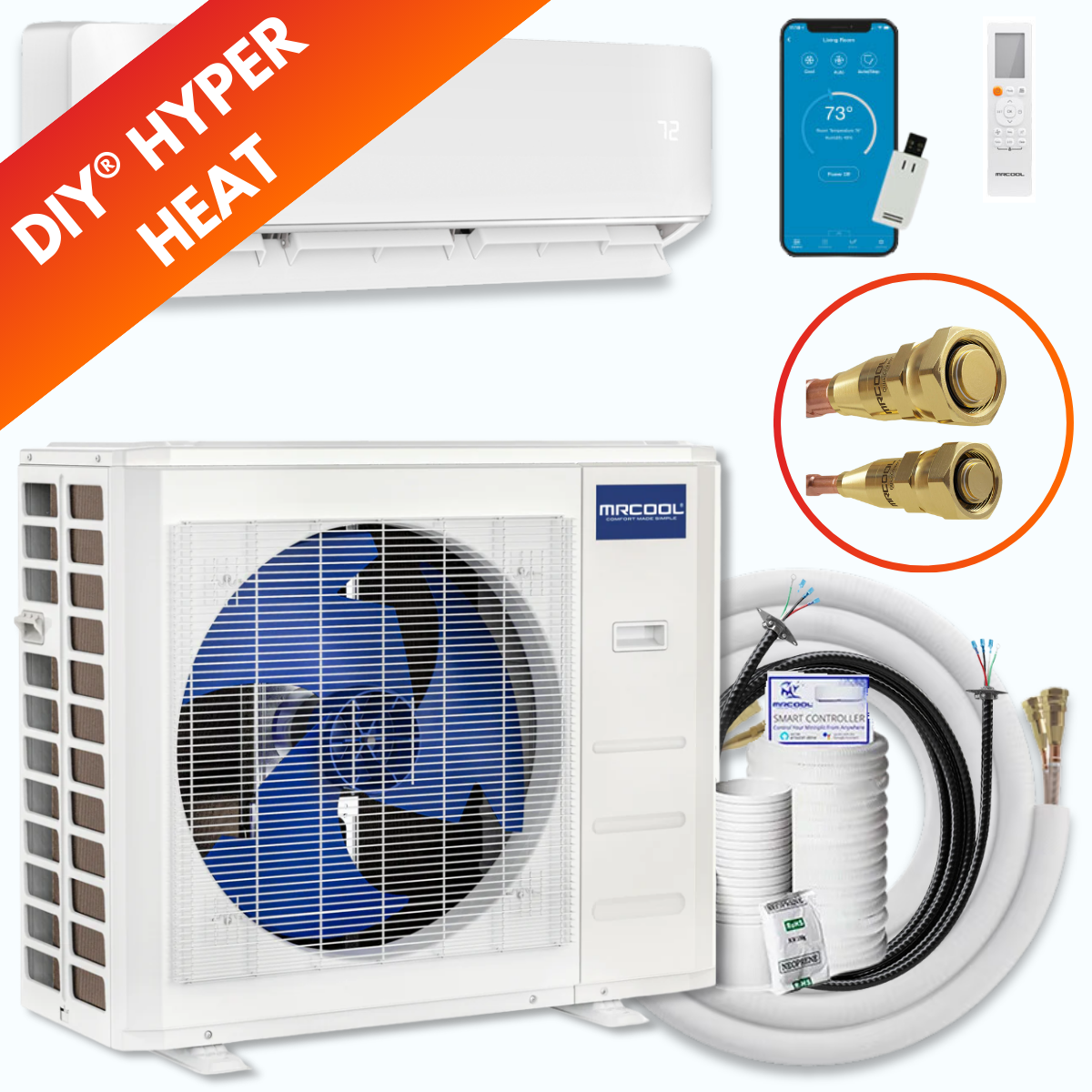

What’s in the Box

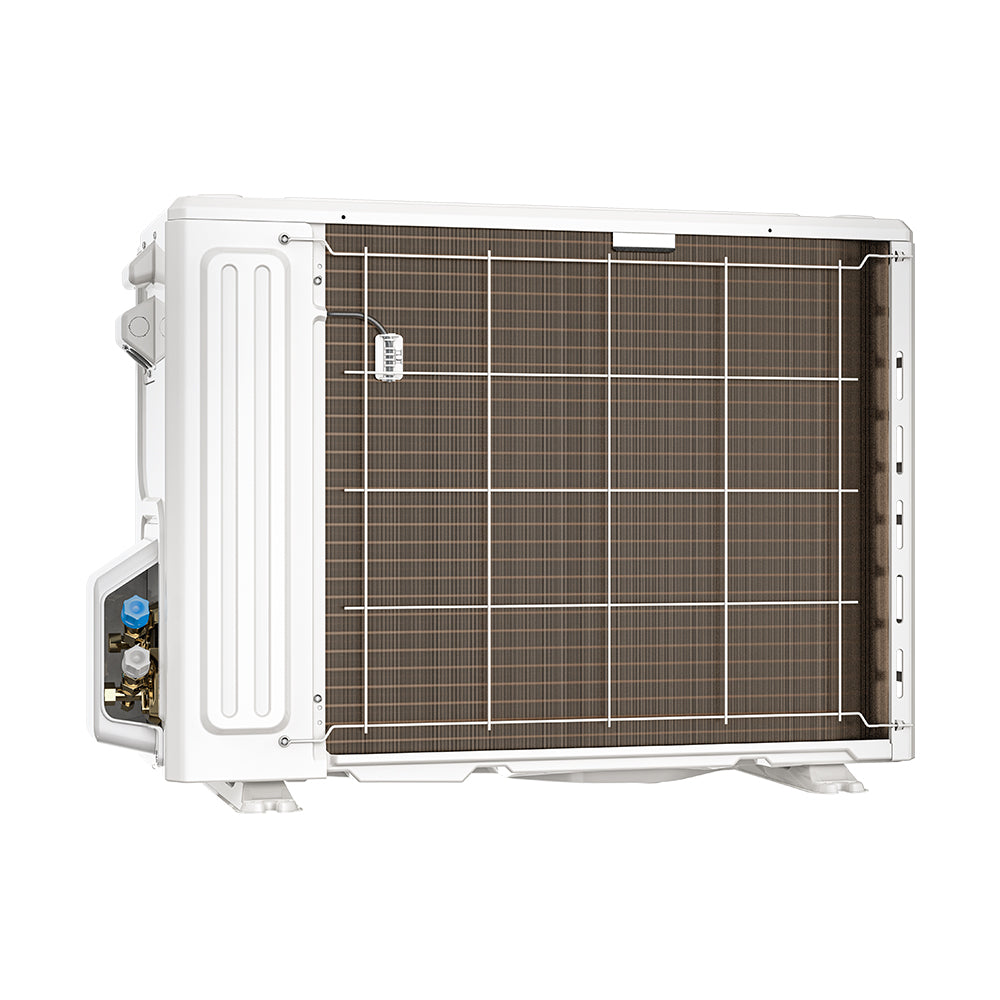

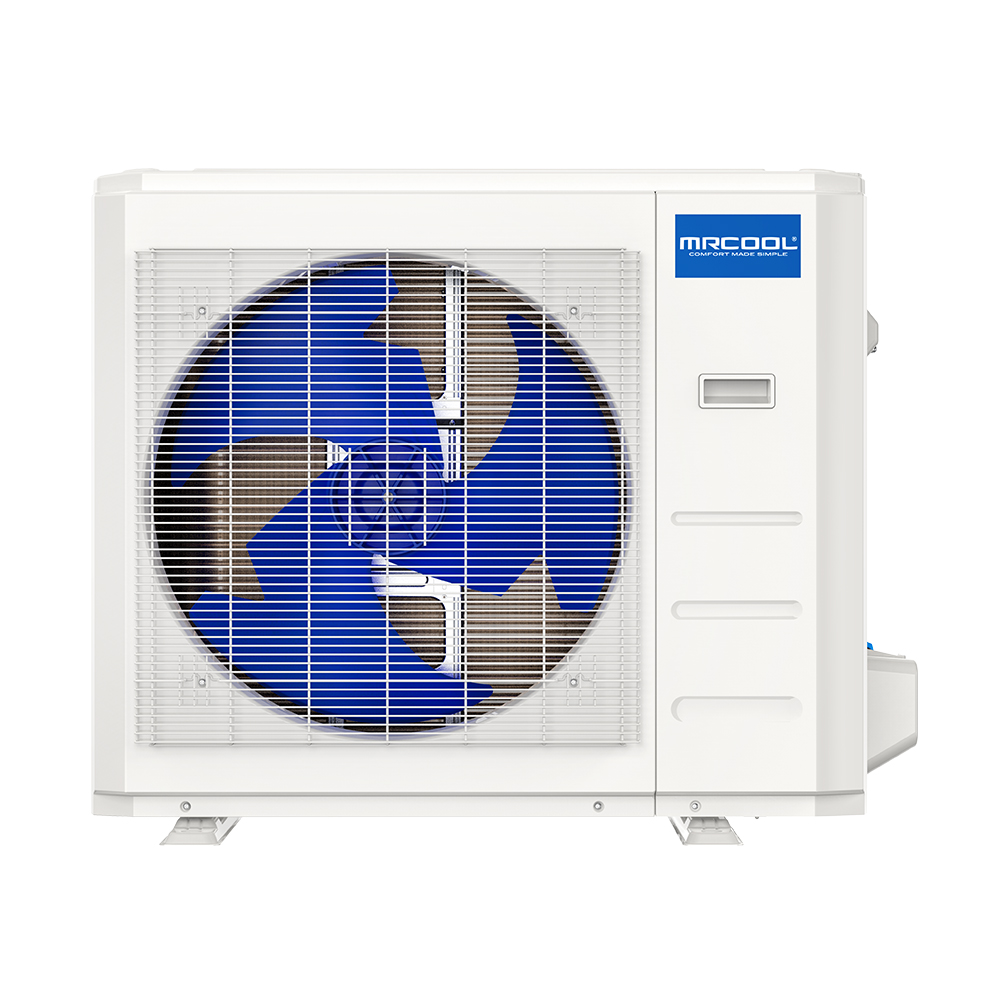

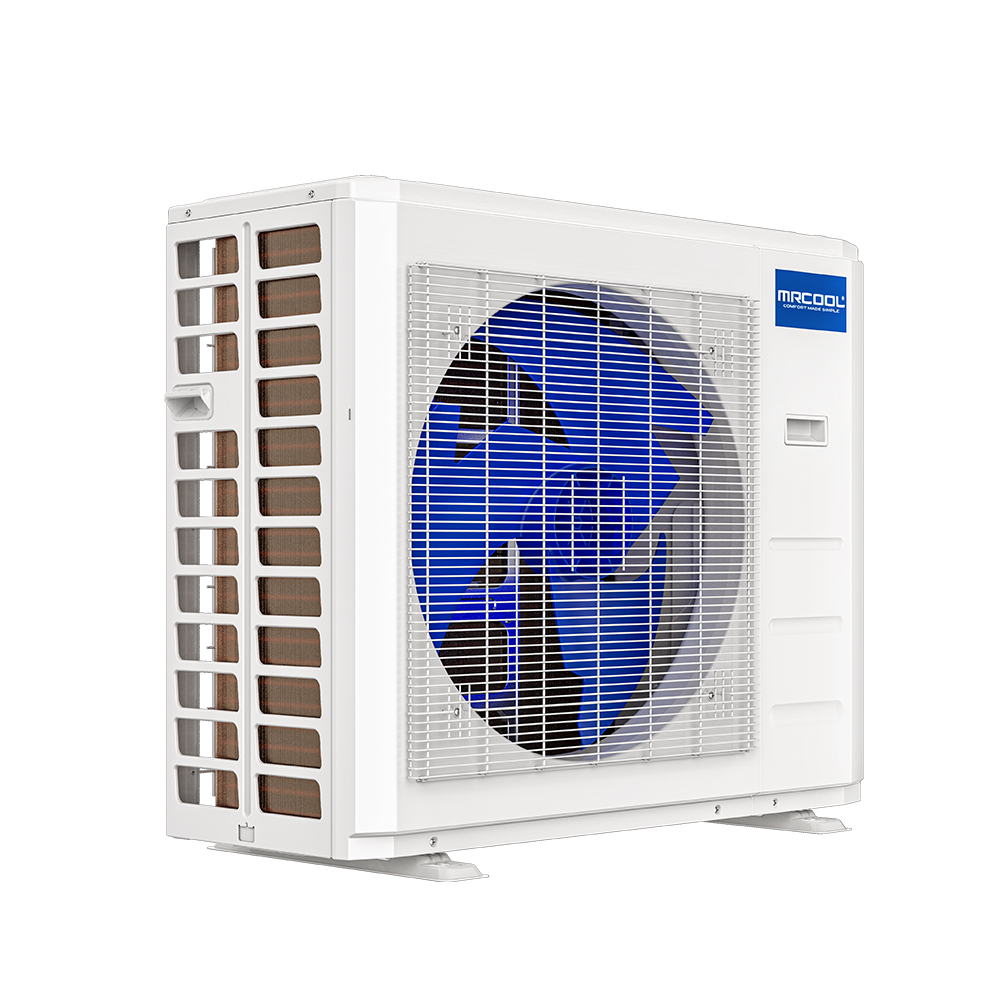

- ✅ 18,000 BTU Hyper Heat outdoor condenser

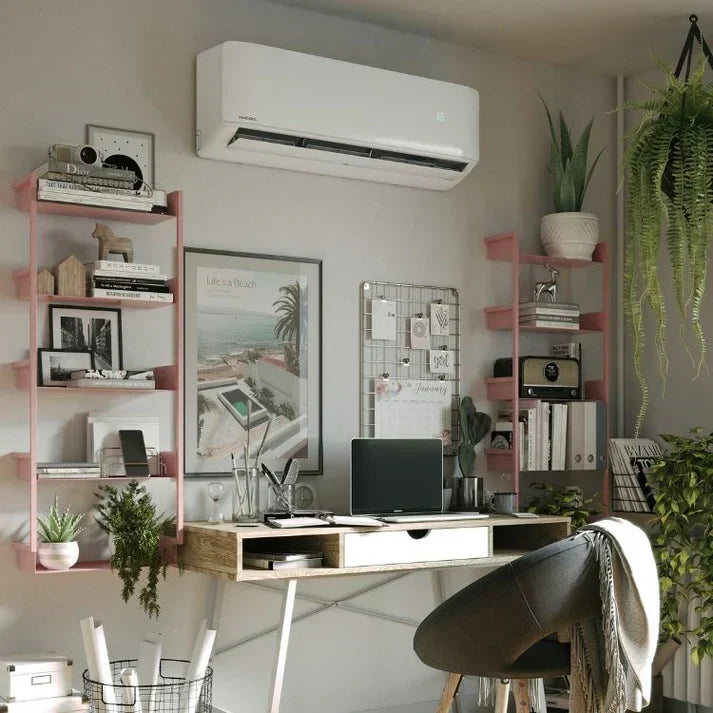

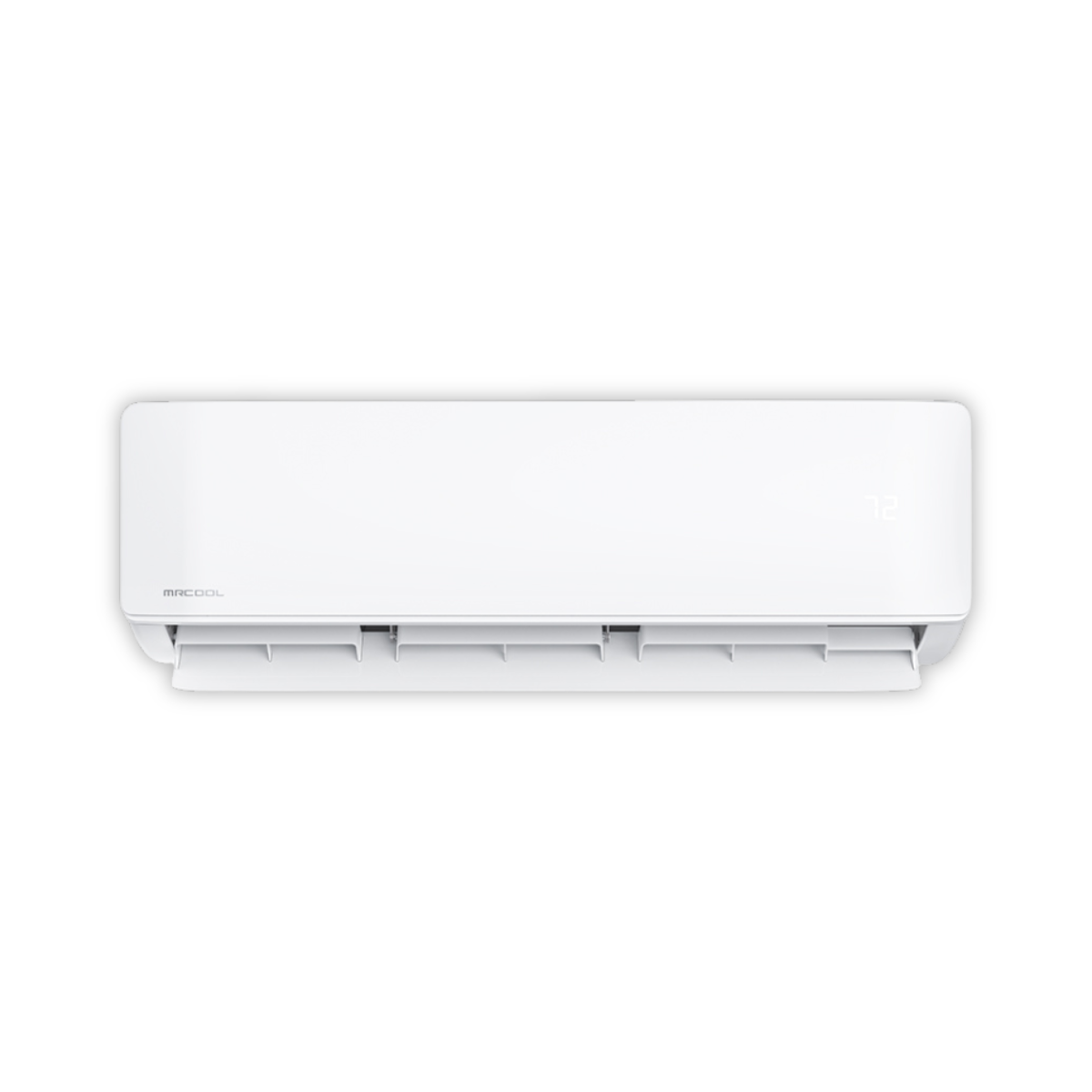

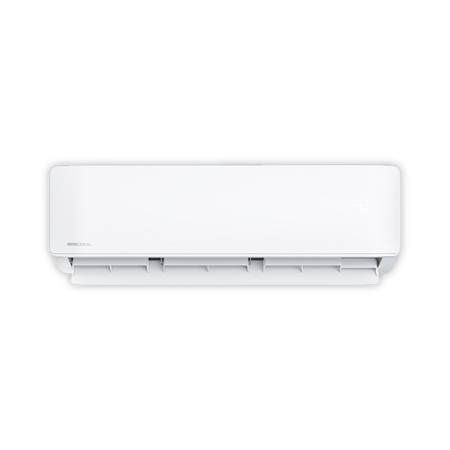

- ✅ Indoor wall-mount air handler
- ✅ 25 ft. pre-charged QuickConnect® line set (1/4" x 1/2", R-454B)
- ✅ DIYPRO® armored cable
- ✅ Remote control
Specifications & Dimensions
| Capacity & Performance | |
|---|---|
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| Coverage Area | 500–800 sq. ft. |
| SEER2 | 21.2 |
| EER2 | 12.5 |
| HSPF2-4 | 11.0 |
| HSPF2-5 | 8.5 |
| Cooling Range | -5°F to 122°F outdoor |
| Heating Range | -22°F to 75°F outdoor |
| Outdoor Noise Level | 58 dB(A) |
| Electrical Requirements | |
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 25A |
| Min Circuit Ampacity | 19A |
| Refrigerant & Piping | |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 52.21 oz |
| Liquid Line Size | 1/4" |
| Suction Line Size | 1/2" |
| Max Line Set Length | 75 ft. |
| Dimensions & Weight | |
| Condenser Dimensions | 35.04" W x 13.46" D x 26.5" H |
| Condenser Weight | 99.87 lbs |
| Air Handler Dimensions | 42.52" W x 8.90" D x 13.19" H |
| Air Handler Weight | 35.49 lbs |
| Features | |
| Inverter | Yes |
| Compressor Motor Type | Rotary |
| Auto Mode | Yes |
| WiFi Compatibility | Yes |
| App Compatibility | Yes |
| Works with iOS | Yes |
| Works with Android | Yes |
| Certifications & Warranty | |
| Certifications | Energy Star Certified, UL Listed, CSA Certified, ETL Certified, AHRI Certified |
| Parts Warranty | 5 Years |
| Compressor Warranty | 7 Years |
Shipping & Returns
🚚 Free Curbside Delivery
All MRCOOL orders ship free via FedEx Ground, FedEx Freight, or an equivalent trusted carrier. Delivery is curbside only — please arrange assistance in advance as carriers are not able to bring items inside your home.
Tracking & Delivery
Tracking information is typically provided within 3–5 business days of your order. Once received, please allow 1–2 business days for tracking details to update.
↩️ Return Policy
30-Day Return Window
Returns must be requested within 30 days of your delivery date. We are unable to accept return requests after this period.
Return Conditions
To qualify for a return, items must be unused and uninstalled, and in original packaging including box and pallet.
Restocking Fee
A 35% restocking fee applies to all approved returns.
📄 View Full Shipping Policy | 📄 View Full Return & Refund Policy
Frequently Asked Questions
What makes the Hyper Heat different from the standard DIY 5th Gen?
The Hyper Heat is built for cold climates. It heats reliably down to -22°F (vs. -13°F on the standard 5th Gen) and has a higher HSPF2-4 of 11.0 (vs. 8.5–10.0 on standard models). If you live in a northern climate with harsh winters, the Hyper Heat is the right choice.
Does this unit use a standard line set?
No — this unit uses a 1/2" suction line (vs. 3/8" on smaller units). The included 25 ft. QuickConnect® line set is pre-sized for this unit. If you need a longer run, make sure any additional line set uses 1/2" suction.
Does this qualify for tax credits or rebates?
Yes — as an Energy Star certified system with a 21.2 SEER2 and 11.0 HSPF2-4, this unit may qualify for the federal Residential Clean Energy Credit or utility rebate programs. Check with your local utility provider and a tax professional for eligibility.
Can I install it myself?
Yes. The included 25 ft. pre-charged QuickConnect® line set makes installation vacuum-free. The only professional you’ll need is a licensed electrician for the 230V electrical hookup.
What is the warranty?
This system is backed by MRCOOL’s best-in-class warranty:
- 7-Year Compressor Warranty
- 5-Year Parts Warranty
Recommended BTU By Room Size
| BTU Capacity | Recommended Room Size (Sq. Ft.) |
|---|---|
| 9,000 BTU | 151–350 sq. ft. |
| 12,000 BTU | 351–500 sq. ft. |
| 18,000 BTU ← You Are Here | 500–800 sq. ft. |
| 24,000 BTU | 751–1,000 sq. ft. |
| 36,000 BTU | 1,001–1,500 sq. ft. |
Note: Actual performance may vary depending on room insulation, ceiling height, number of windows, climate zone, and heat-generating appliances.
