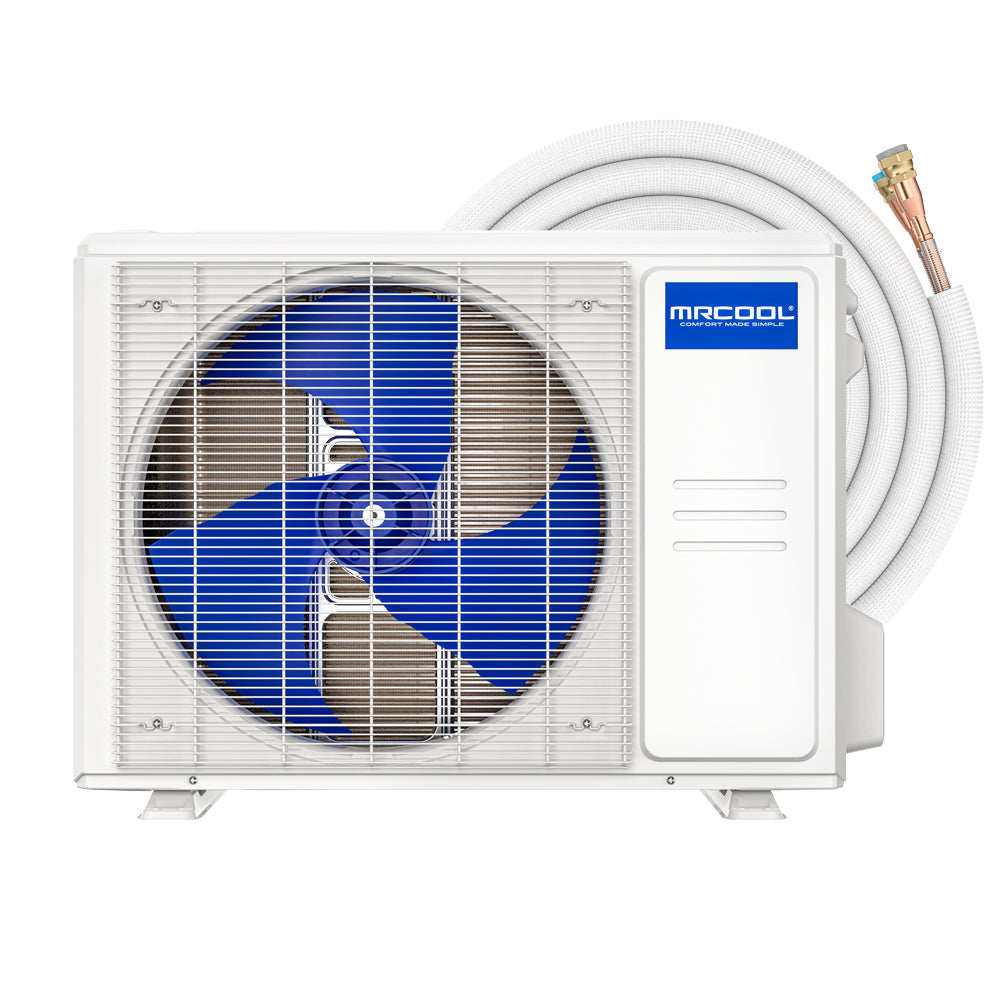

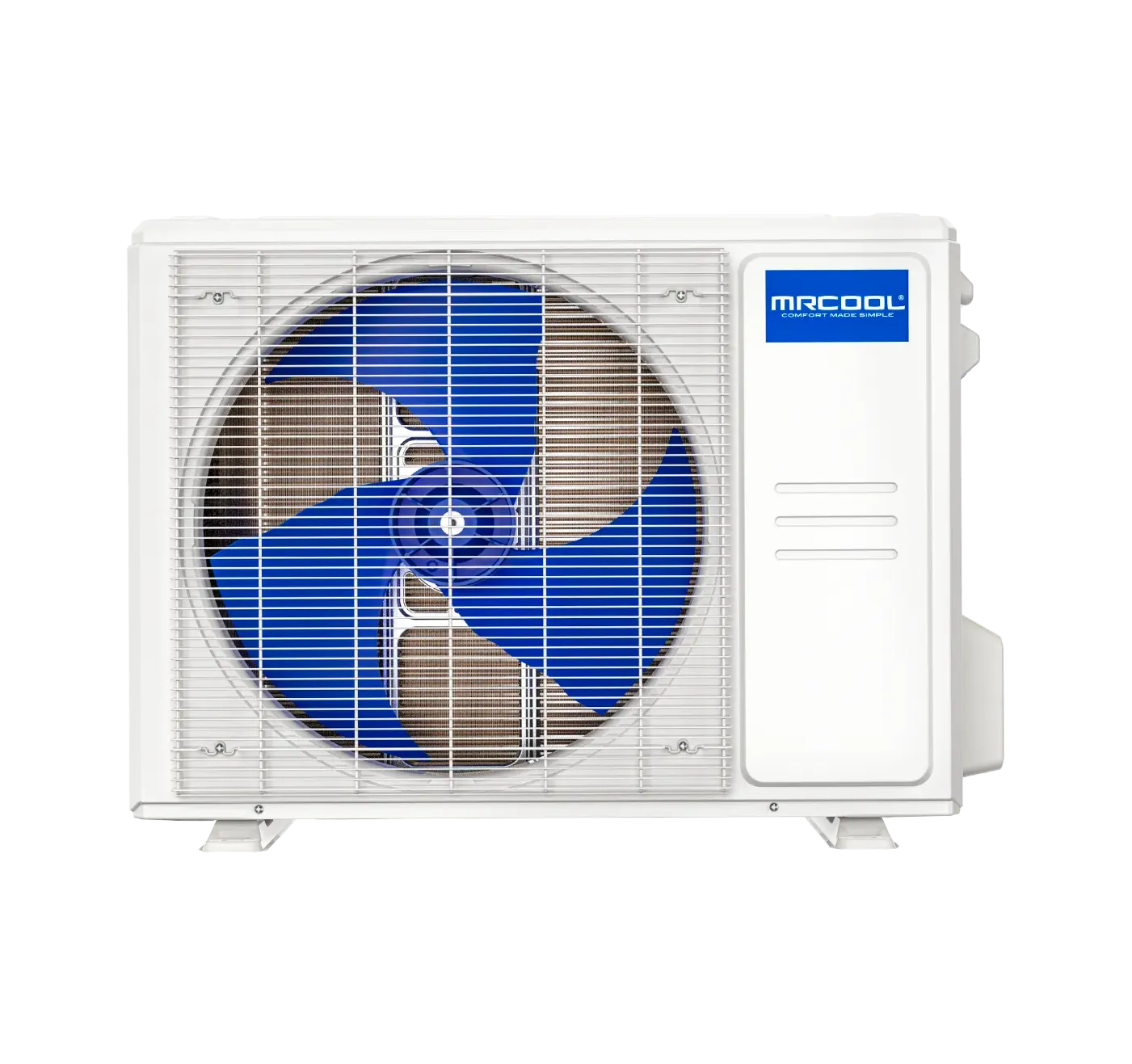

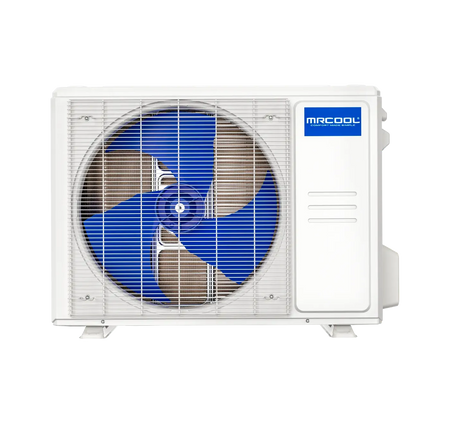

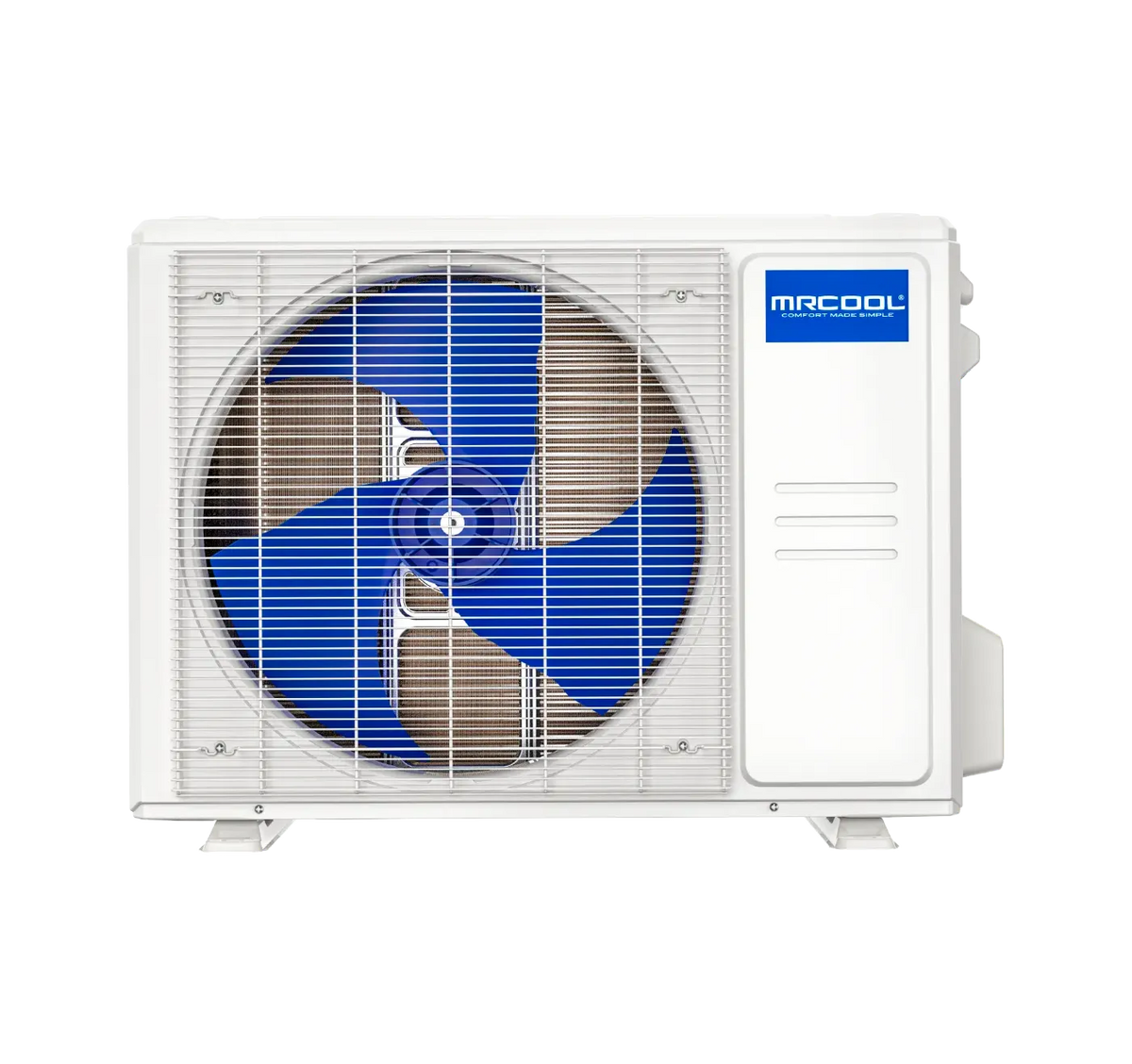

MRCOOL Easy Pro™ 18,000 BTU 5th Gen Mini-Split Condenser 230V – Single Zone, Up to 800 Sq. Ft. | EZPRO-18-HP-C-23016D-O
Couldn't load pickup availability
MRCOOL Easy Pro™ 18,000 BTU 5th Gen Mini-Split Condenser – Single Zone, 230V
The MRCOOL Easy Pro™ 18,000 BTU 5th Generation Mini-Split Condenser delivers powerful, energy-efficient heating and cooling for spaces up to 800 sq. ft. Part of MRCOOL's 5th Generation lineup, the Easy Pro™ is designed for straightforward DIY installation using the included 16 ft. pre-charged Fast Connection® line set — no vacuum pump or HVAC license required. An excellent value option for larger spaces seeking reliable year-round comfort.
Why Choose MRCOOL Easy Pro™?
- DIY Fast Connection® Line Set — Pre-charged with eco-friendly R-454B refrigerant for a fast, vacuum-free installation — no special tools needed.
- Eco-Friendly R-454B Refrigerant — Lower Global Warming Potential (GWP) than R-410A, delivering better energy efficiency with a reduced environmental footprint.
- Smart Connectivity — Built-in WiFi control via the MRCOOL SmartHVAC app, with full support for Amazon Alexa and Google Assistant.
- Auto Restart — Automatically restores your settings after a power outage for uninterrupted comfort.
- Low Ambient Cooling — Operates reliably down to -13°F outdoors, ideal for year-round use in cold climates.
- Gold Fin® Condenser Coating — Superior corrosion resistance, ideal for coastal homes and harsh climates.
- DC Inverter Compressor — Rotary inverter technology for efficient, consistent temperature control.
- Certified Excellence — UL Listed, CSA Listed, ETL Listed, AHRI Certified.
Product Overview
- 🏠 Zones: 1
- 📐 Coverage: Up to 800 sq ft.
- 🔧 Installation: DIY — No Professional Required
- ⚡ Voltage: 208-230V
- 🧄 Refrigerant: R-454B
- 🛡️ Warranty: 2-Year Parts / 1-Year Compressor (upon registration)
⚠️ Easy Pro™ vs DIY®: The Easy Pro™ is MRCOOL's value-tier 5th Gen line. It uses a 16 ft. Fast Connection® line set (vs 25 ft. QuickConnect® on DIY®) and carries a 2-year parts / 1-year compressor warranty (vs 5-year parts / 7-year compressor on DIY®). For maximum warranty coverage, see our DIY® 5th Gen lineup.
Specifications & Dimensions
| Dimensions & Weight | |
|---|---|
| Dimensions | 30.12" W x 11.93" D x 21.85" H |
| Weight | 62.61 lbs |
| Capacity & Performance | |
| Zone Capacity | 1 |
| Cooling Capacity | 17,000 BTU |
| Outdoor Operating Temperature (Cooling) | -13°F – 122°F |
| EER2 | 9.8 |
| SEER2 | 20 |
| Heating Capacity | 18,000 BTU |
| Outdoor Operating Temperature (Heating) | -13°F – 75°F |
| HSPF2-4 | 8.5 |
| HSPF2-5 | 6.6 |
| Coverage Area | Up to 800 sq ft. |
| Outdoor Noise Level | 55 dB(A) |
| Electrical Requirements | |
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 15A |
| Refrigerant & Piping | |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 34.92 oz |
| Liquid Line Size | 1/4" |
| Suction Line Size | 1/2" |
| Max Line Set Length | 98.4 ft. |
| Features | |
| Inverter | DC |
| Compressor Type | Rotary |
| Certifications & Warranty | |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Parts Warranty | 2 Years (upon registration) |
| Compressor Warranty | 1 Year (upon registration) |
Shipping & Returns
🚚 Free Curbside Delivery
All MRCOOL orders ship free via FedEx Ground, FedEx Freight, or an equivalent trusted carrier. Delivery is curbside only — please arrange assistance in advance as carriers are not able to bring items inside your home.
Tracking & Delivery
Tracking information is typically provided within 3–5 business days of your order. Once received, please allow 1–2 business days for tracking details to update.
↩️ Return Policy
30-Day Return Window
Returns must be requested within 30 days of your delivery date. We are unable to accept return requests after this period.
Return Conditions
To qualify for a return, items must be unused and uninstalled, and in original packaging including box and pallet.
Restocking Fee
A 35% restocking fee applies to all approved returns.
📄 View Full Shipping Policy | 📄 View Full Return & Refund Policy
Frequently Asked Questions
What is the difference between Easy Pro™ and DIY®?
Both are part of MRCOOL's 5th Generation lineup. The Easy Pro™ is the value-tier option with a 16 ft. Fast Connection® line set and a 2-year parts / 1-year compressor warranty. The DIY® is the premium tier with a 25 ft. QuickConnect® line set, higher SEER2 ratings, and a 7-year compressor / 5-year parts warranty. If long-term warranty coverage is a priority, the DIY® is the better choice.
Can I install it myself?
Yes — the Easy Pro™ is designed for DIY installation using the included 16 ft. pre-charged Fast Connection® line set. No vacuum pump or HVAC certification required. You will need a licensed electrician for the electrical hookup.
Does it work in cold weather?
Yes. The Easy Pro™ features low-ambient heating technology and operates reliably down to -13°F outdoors — suitable for year-round use.
What BTU size do I need?
A general rule is 20 BTU per square foot:
- 9,000 BTU → 151–350 sq ft
- 12,000 BTU → 351–500 sq ft
- 18,000 BTU → 501–800 sq ft
- 24,000 BTU → 751–1,050 sq ft
- 36,000 BTU → 1,001–1,500 sq ft
Recommended BTU By Room Size
| BTU Capacity | Recommended Room Size (Sq. Ft.) |
|---|---|
| 9,000 BTU | 151–350 sq. ft. |
| 12,000 BTU | 351–500 sq. ft. |
| 18,000 BTU | 501–800 sq. ft. |
| 24,000 BTU | 751–1,050 sq. ft. |
| 36,000 BTU | 1,001–1,500 sq. ft. |
Note: Actual performance may vary depending on room insulation, ceiling height, number of windows, climate zone, and heat-generating appliances.
