THOR 30-Inch Panel-Ready Built-In Refrigerator – Seamless Design, Superior Performance
Upgrade your kitchen with the THOR 30-Inch Custom Panel-Ready Built-In Refrigerator, designed for style, efficiency, and convenience. Its French door design seamlessly blends with your cabinetry, while flush hinge installation creates a sleek, polished look.
Enjoy precise temperature control with an intuitive digital display, and keep food fresh with height-adjustable, spill-proof glass shelves. The soft-close drawers ensure smooth, silent operation, while LED lighting enhances visibility. Stay energy-efficient with customized modes like Sabbath, Holiday, and ECO. Plus, an interior water dispenser provides easy access to fresh water.
With ultra-quiet 43 dB(A) operation, front-leveling stability, and easy panel alignment, this refrigerator delivers premium performance with a custom touch.
Specifications
| Dimensions | |
|---|---|
| Product Dimensions (HxWxD) (in.) | 83-9/16 x 29-3/4 x 23-5/16 |
| Package (HxWxD) (in.) | 90-9/16 x 32-5/16 x 26-3/8 |
| Product Height To Top Of Refrigerator (in.) | 83-1/2 |
| Cutout Dimensions (HxWxD) (in.) | 84 x 30 x 25 |
| Water Pressure | |
|---|---|
| 1 | The water pressure of the cold water supply must be between 25-80 psi. (1.7-5.5 Bar) |
| 2 | If the water pressure exceeds 80 psi (5.5 Bar), install a pressure limiting device or water impact protector to the water in valve. |
| 3 | Do not install or operate the appliance if the water pressure exceeds 120 psi. (8.3 Bar) |
| 3 | If there are issues with the water pressure, contact a qualified plumber. |
| Technical Details | |
|---|---|
| Total Capacity (cu. ft.) | 16.1 |
| Refrigerator Capacity (cu. ft.) | 11.6 |
| Freezer Capacity (cu. ft.) | 4.5 |
| Amperage or Current (A) | 15 |
| Volts (V) | 120 |
| Frequency (Hz) | 60 |
| Plug Type | 3-Prong Grounding Plug |
| Power Cord Length (in.) | 86.6 |
| Energy consumption | 551 kwh/yr |
| General Properties | |
|---|---|
| Number Of Doors | 2 |
| Number Of Shelves | 3 |
| Number Of Freezer Baskets | 2 |
| Number of Door Bins | 3 (2+1 Gallon Bins) |
| Adjustable Racks & Removable Shelves | 3 |
| Shelf Material | Glass |
| Reversible Door Swing | Yes |
| Soft Closing Drawer Feature | Yes |

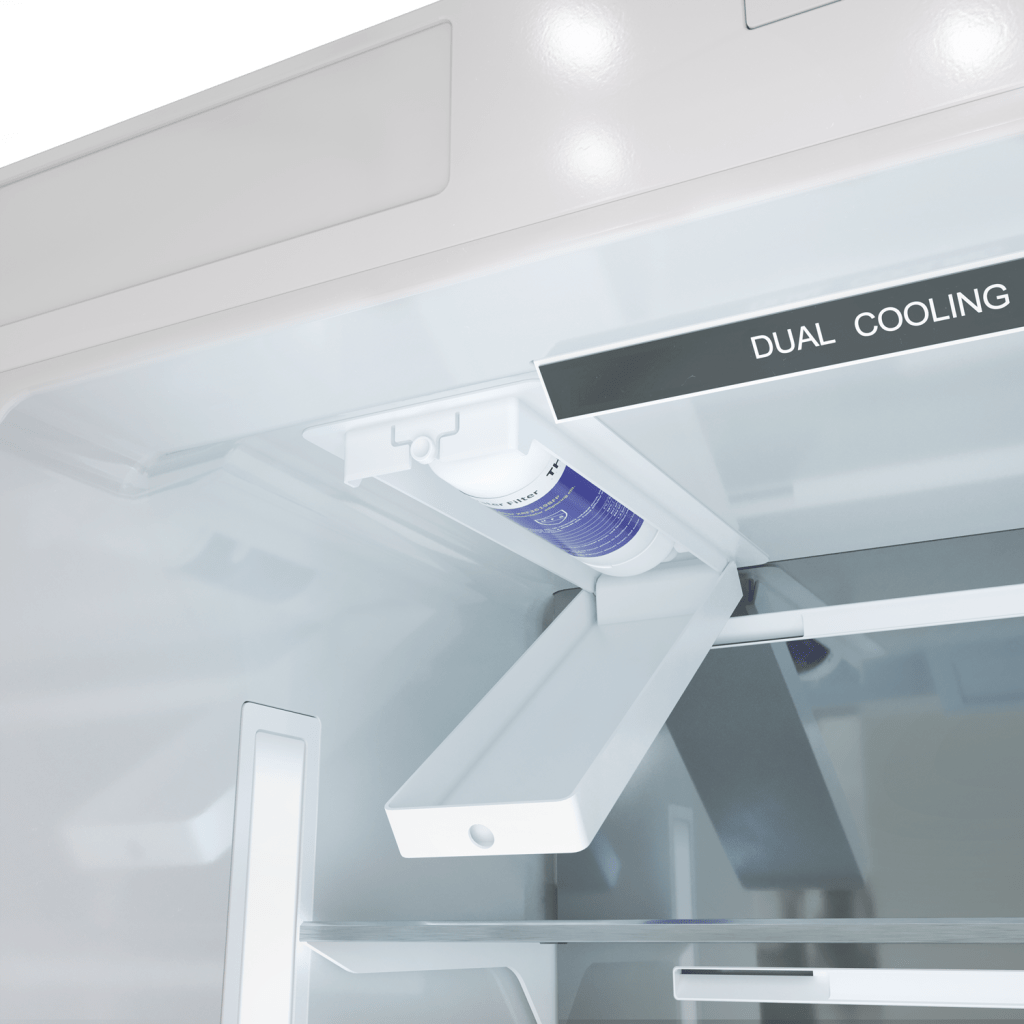

| Water Filter | Yes |
| Lighting | LED |
| Freezer Defrost Process | Automated Defrosting |
| Certification | Energy Star Rated / ETL Certified |
